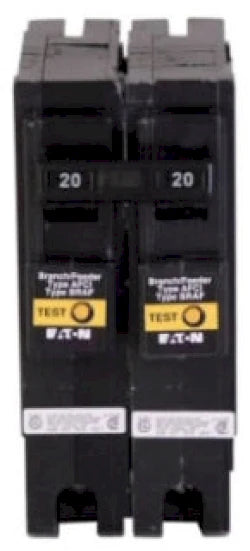

Eaton Cutler-Hammer BRL220AFIT Arc Fault Circuit Breaker – 20A – 2 Pole – 120/240V AC – 10kA – Plug-In – BR Series

The Cutler Hammer BRL220AFIT is a 20A, 2-pole arc fault circuit breaker from the Cutler Hammer BR Series, designed for compatible BR frame loadcenters. It provides Fire-Guard arc fault circuit interruption (AFCI) protection for residential electrical distribution applications.

The BRL220AFIT features a thermal-magnetic trip unit with independent trip functionality, long-time and instantaneous trip functions, and a 10kA interrupting rating. Its plug-in mounting design provides convenient installation in compatible BR loadcenters and supports copper or aluminum conductors from 14 to 4 AWG.

Specifications

• Part Number / MPN: BRL220AFIT
• Manufacturer: Cutler Hammer
• Brand: Cutler Hammer
• Product Type: Molded Case Circuit Breaker
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family / Series: BR Series
• Type: BRL
• Frame Type: BR
• Rated Current: 20A
• Voltage Rating: 120/240V AC
• Phase: 1 Phase
• Poles: 2 Pole
• Interrupting Rating (AIC): 10kA @ 120V
• Connection / Mounting: Plug-In
• Trip Unit: Thermal Magnetic
• Trip Function: Independent Trip
• Trip Functions: Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Arc Fault Protection: Fire-Guard AFCI
• Temperature Rating: -13°F to 158°F (-25°C to 70°C)
• Wire Size: 14 to 4 AWG, Copper/Aluminum
• UPC: 786685495163
• Weight: 2 lb

Part Numbers & Identification

• MPN / Part Number: BRL220AFIT
• Type: BRL
• Series / Frame: BR Series / BR Frame
• UPC: 786685495163
• Product Identification: Cutler Hammer BRL220AFIT, 20A, 2-Pole, 120/240V AC, 10kA, Plug-In Fire-Guard AFCI Circuit Breaker

Compatibility

The Cutler Hammer BRL220AFIT is designed for compatible BR frame loadcenters requiring a 20A, 2-pole, plug-in circuit breaker with arc fault protection.

It supports 14 to 4 AWG copper or aluminum conductors and is intended for compatible single-phase 120/240V electrical distribution applications. Verify the specific loadcenter model, breaker compatibility, conductor requirements, and electrical ratings before installation.

Certifications

The provided product information identifies the following certification:

• UL 1699 Certified
