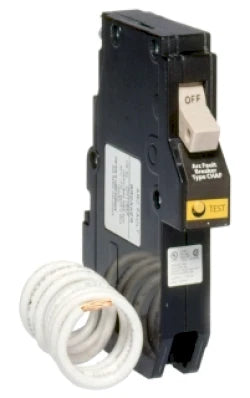

Eaton Cutler-Hammer CH115AF Arc Fault Circuit Breaker – 15A – 1 Pole – 120V AC – 10kA – Plug-In – CH Series

The Cutler Hammer CH115AF is a 15A, 1-pole, 120V AC arc fault circuit breaker from the Cutler Hammer CH Series. It is designed for plug-in installation in compatible Type CH loadcenters and provides arc fault circuit interruption (AFCI) protection for residential and commercial electrical applications.

The CH115AF features a thermal-magnetic trip unit with long-time and instantaneous trip functions and a 10kA interrupting rating at 120V. It uses a pigtail connection and is designed to detect and interrupt potentially hazardous arc faults while providing reliable overcurrent protection.

Specifications

• Part Number / MPN: CH115AF
• Manufacturer: Cutler Hammer
• Brand: Cutler Hammer
• Product Type: Molded Case Circuit Breaker
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family / Series: CH Series
• Type: CH
• Frame / Series: CH
• Rated Current: 15A
• Voltage Rating: 120V AC
• Phase: 1 Phase
• Poles: 1 Pole
• Interrupting Rating (AIC): 10kA @ 120V
• Connection / Mounting: Plug-In
• Connection Type: Pigtail
• Trip Functions: LI – Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Breaker Type: Arc Fault Circuit Interrupter (AFCI)
• Application: Residential and Commercial Circuit Protection
• UPC: 782114231470
• GTIN: 00782114231470
• Weight: 0.5 lb

Part Numbers & Identification

• MPN / Part Number: CH115AF
• Type: CH
• Series: CH Series
• UPC: 782114231470
• GTIN: 00782114231470
• Product Identification: Cutler Hammer CH115AF, 15A, 1-Pole, 120V AC, 10kA, Plug-In AFCI Circuit Breaker

Compatibility

The Cutler Hammer CH115AF is designed for use with compatible Type CH loadcenters requiring a 15A, 1-pole, 120V AC plug-in circuit breaker with AFCI protection.

The breaker uses a pigtail connection and is intended for residential and commercial circuit protection applications. Verify the specific loadcenter model, breaker compatibility, voltage requirements, and installation specifications before installation.

Certifications

The provided product information identifies the following ratings and certifications:

• UL Listed

• HACR Rated
