Eaton Cutler Hammer CHND3800T33W 800A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The CHND3800T33W molded case circuit breaker is a durable and reliable solution for industrial and commercial power distribution protection. Constructed on the CHND frame, it provides a 100% continuous current rating and high interrupting capacity, safeguarding circuits against overloads and short circuits. It features the Digitrip RMS 310 electronic non-interchangeable trip unit with LS protection functions, allowing precise adjustment of long-time and short-time settings. Rated for 800 amps, 3 poles, and up to 600 VAC, this breaker is suitable for demanding electrical installations.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: CHND3800T33W
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: CHND Frame
• Amperage Rating: 800A
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Maximum Voltage: 600 VAC
• Standard Lug Type: Standard Lug
• Warranty: One Year

Technical Specifications

• Trip Unit Type: Electronic Non-Interchangeable Trip Unit
• Trip Unit Model: Digitrip RMS 310
• Protection Functions: LS (Long Delay, Short Delay)
• Long Delay Pickup: Adjustable via rating plug
• Short Delay Pickup: Adjustable with fixed or adjustable delay time (I²t or flat response)
• Continuous Current Rating: 100% rated
• Operating Temperature Rating: 800A at 40°C

Voltage and Ratings

• Rated Voltage: Up to 600 VAC
• Frequency: 50 / 60 Hz
• Interrupting Capacity: 200 kA @ 240 VAC
• Interrupting Capacity: 100 kA @ 480 VAC
• Interrupting Capacity: 65 kA @ 600 VAC

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Category: Circuit Protection
• Application: Industrial and commercial electrical distribution
• Installation Type: Panelboard or switchboard mounting
• Protection Type: Overcurrent and short-circuit protection
• Product Configuration: Base breaker supplied without rating plug
• Accessory Compatibility: Optional accessories can be installed on request

Important Note

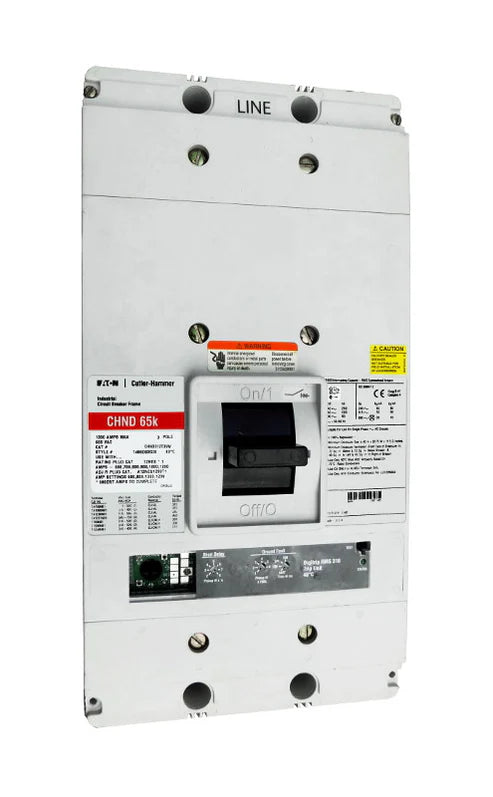

This breaker requires a compatible rating plug to operate, which is not included with the base unit. Please contact us to confirm stock and pricing if you need a rating plug installed prior to ordering. Product images may represent a base model and are for identification purposes only. Accessories purchased with the breaker can be installed according to your specifications at no additional cost when details are provided in the order comment box during checkout.
