Eaton Cutler Hammer CND3800T32W 800A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The CND3800T32W molded case circuit breaker is engineered for dependable circuit protection in industrial and commercial electrical distribution systems. Built on the robust CND frame, this breaker provides a 100% continuous current rating along with reliable overcurrent protection using the Digitrip RMS 310 electronic non-interchangeable trip unit. Featuring LSI (Long Delay, Short Delay, Instantaneous) protection functions, it allows adjustable protection settings to help ensure accurate coordination and system safety. Rated at 800 amps with a 3-pole configuration and up to 600 VAC operation, this breaker is well suited for demanding electrical installations.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: CND3800T32W
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: CND Frame
• Amperage Rating: 800 Amp
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Maximum Voltage: 600 VAC
• Standard Lug Type: Standard Lug
• Warranty: One Year

Technical Specifications

• Trip Unit Type: Electronic Non-Interchangeable Trip Unit
• Trip Unit Model: Digitrip RMS 310
• Protection Functions: LSI (Long Delay, Short Delay, Instantaneous)
• Long Delay Pickup: Adjustable via rating plug
• Short Delay Pickup: Adjustable with fixed short delay time (I²t response) or adjustable delay time (flat response)
• Instantaneous Pickup: Adjustable by setting short delay time to instantaneous
• Continuous Current Rating: 100% rated
• Operating Temperature Rating: 800A at 40°C

Voltage and Ratings

• Rated Voltage: Up to 600 VAC
• Frequency: 50 / 60 Hz
• Interrupting Capacity: 65 kA @ 240 VAC
• Interrupting Capacity: 50 kA @ 480 VAC
• Interrupting Capacity: 25 kA @ 600 VAC

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Category: Circuit Protection
• Application: Industrial and commercial electrical distribution systems
• Installation Type: Panelboard or switchboard mounting
• Protection Type: Overcurrent, short-circuit, and instantaneous protection
• Product Configuration: Base breaker supplied without rating plug
• Accessory Compatibility: Optional accessories available for custom configuration

Important Note

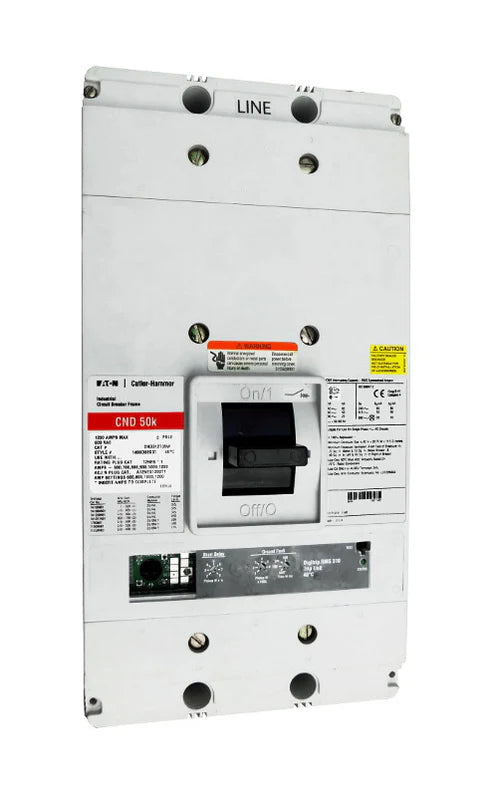

This breaker requires a compatible rating plug to operate, which is not included with the base unit. Please contact us to verify availability and pricing if you need a rating plug installed prior to ordering. Product images may represent a base model and are provided for identification purposes only. If accessories are purchased together with the breaker, they can be installed according to your configuration requirements at no additional cost when the necessary details are provided in the order comment box during checkout.
