Eaton Cutler Hammer CND3800T33W 800A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The CND3800T33W molded case circuit breaker is designed to deliver reliable protection for industrial and commercial electrical distribution systems. Built on the durable CND frame, it provides a 100% continuous current rating and dependable overcurrent protection using the Digitrip RMS 310 electronic non-interchangeable trip unit. With LS (Long Delay and Short Delay) protection functions, this breaker allows adjustable long-time and short-time settings to ensure proper coordination and system protection. Rated for 800 amps with a 3-pole configuration and operation up to 600 VAC, it is well suited for demanding power distribution environments.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: CND3800T33W
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: CND Frame
• Amperage Rating: 800 Amp
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Maximum Voltage: 600 VAC
• Standard Lug Type: Standard Lug
• Warranty: One Year

Technical Specifications

• Trip Unit Type: Electronic Non-Interchangeable Trip Unit
• Trip Unit Model: Digitrip RMS 310
• Protection Functions: LS (Long Delay, Short Delay)
• Long Delay Pickup: Adjustable via rating plug
• Short Delay Pickup: Adjustable with fixed short delay time (I²t response) or adjustable delay time (flat response)
• Continuous Current Rating: 100% rated
• Operating Temperature Rating: 800A at 40°C

Voltage and Ratings

• Rated Voltage: Up to 600 VAC
• Frequency: 50 / 60 Hz
• Interrupting Capacity: 65 kA @ 240 VAC
• Interrupting Capacity: 50 kA @ 480 VAC
• Interrupting Capacity: 25 kA @ 600 VAC

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Category: Circuit Protection
• Application: Industrial and commercial electrical distribution systems
• Installation Type: Panelboard or switchboard mounting
• Protection Type: Overcurrent and short-circuit protection
• Product Configuration: Base breaker supplied without rating plug
• Accessory Compatibility: Optional accessories available for custom configuration

Important Note

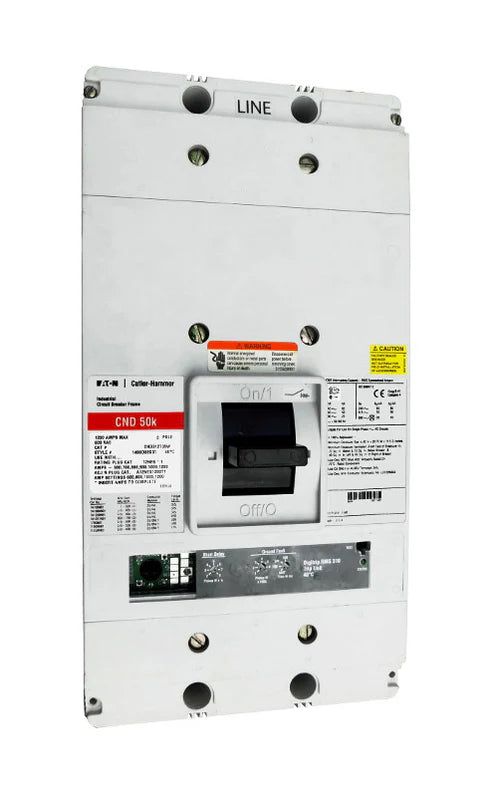

This breaker requires a compatible rating plug to operate, which is not included with the base unit. Please contact us to confirm stock availability and pricing if you need a rating plug installed before ordering. Product images may represent a base model and are provided for identification purposes only. If accessories are purchased together with the breaker, they can be installed according to your specific configuration requirements at no additional cost when details are provided in the order comment box during checkout.
