Eaton Cutler Hammer CNDC3800T36W 800A 3 Poles Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The Eaton / Cutler Hammer CNDC3800T36W Molded Case Circuit Breaker delivers advanced protection for industrial and commercial electrical systems. Using the CNDC frame style and the Digitrip RMS 310 electronic non-interchangeable trip unit, it offers LSIG (Long Delay, Short Delay, Instantaneous, Ground Fault) protection functions. Rated at 800 Amperes at 40°C with ultra-high interrupting capacity, this breaker safeguards circuits against overloads, short circuits, instantaneous faults, and ground faults, ensuring reliable and safe system operation under demanding conditions.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: CNDC3800T36W
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Frame Style: CNDC Frame
• Trip Unit: Digitrip RMS 310 Electronic Non-Interchangeable
• Trip Functions: LSIG (Long Delay, Short Delay, Instantaneous, Ground Fault)
• Mount Type: Bolt-On
• Rated Current: 800 Amperes
• Poles: 3 Pole
• Rating Plug: Not Included
• Standard Lug Type: Not Included
• Warranty: 1 Year

Technical Specifications

• Trip Technology: Electronic Trip Unit (Digitrip RMS 310)
• Long Delay Pickup: Adjustable via rating plug
• Short Delay Pickup: Adjustable with fixed or selectable delay time
• Instantaneous Pickup: Adjustable by setting short delay time to instantaneous
• Ground Fault Pickup: Adjustable with selectable delay
• Frame Temperature Rating: 40°C
• Frame Type: N Frame
• Frequency: 50/60 Hz

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Frequency Rating: 50/60 Hz
• Interrupting Capacity:
• • 200 kA @ 240 VAC
  • 100 kA @ 480 VAC
  • 50 kA @ 600 VAC

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Series: CNDC
• Amperage Rating: 800 A
• Number of Poles: 3
• Mounting Style: Bolt-On
• Frame Type: N Frame
• Application: Industrial and commercial electrical power distribution requiring LSIG protection

Important Note

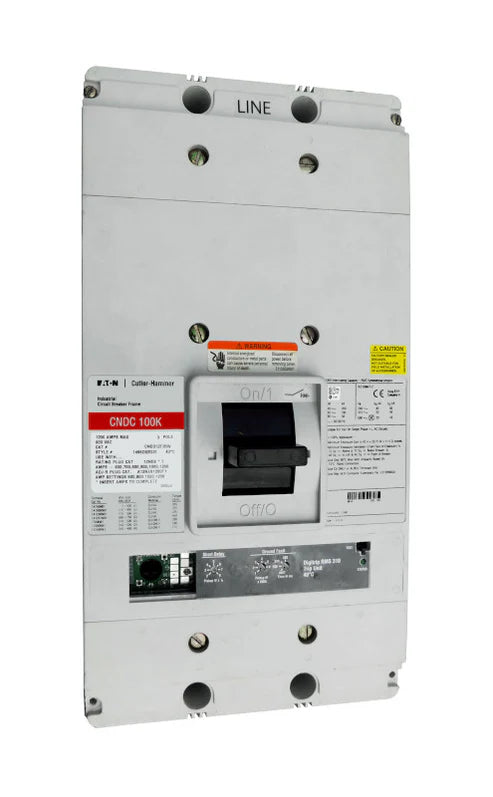

This circuit breaker requires a rating plug to operate, which is not included with the base unit. Installation of the correct rating plug is essential to achieve proper protection and functionality. Product images may depict a base model for identification purposes only. Accessories ordered with the breaker can typically be installed prior to shipment to meet your specific configuration needs.
