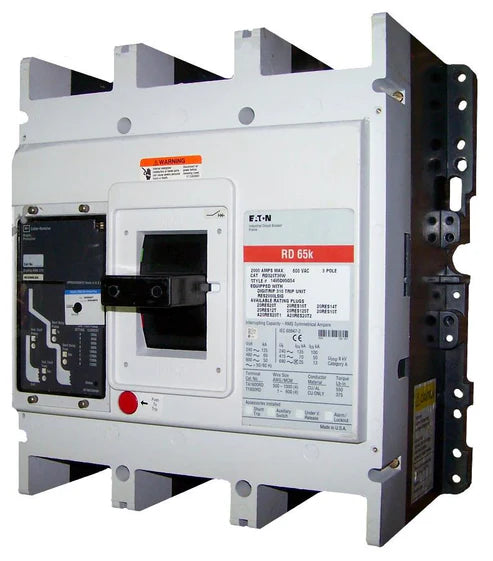

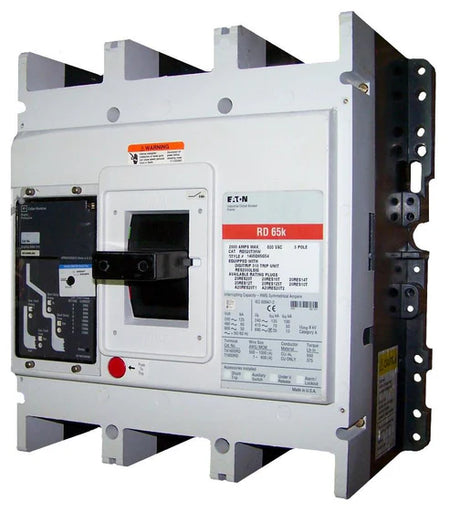

Eaton Cutler-Hammer CRDC320T33W 2000A 3 Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The Eaton Cutler-Hammer CRDC320T33W molded case circuit breaker provides reliable protection for large-scale electrical distribution systems. Built on the CRDC R-Frame platform, it integrates the Digitrip RMS 310 electronic trip unit, delivering accurate monitoring and protection against overloads and short-circuits in industrial and commercial applications.

Featuring LS protection functions, this breaker allows configurable long-delay and short-delay trip settings. Its robust design and high interrupting ratings make it ideal for heavy-duty electrical systems requiring dependable fault-clearing performance and coordinated protection.

Voltage and Ratings

• Rated Current: 2000 Amperes
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting Capacity:
• • 200 kA at 240 VAC
  • 100 kA at 480 VAC
  • 65 kA at 600 VAC
• Temperature Rating: 2000A at 40°C
• Application Rating: Approved for 100% rated applications

Key Specifications

• Digitrip RMS 310 electronic trip unit for precise fault detection
• LS protection functions (Long Delay, Short Delay)
• Adjustable long-delay pickup via rating plug
• Short-delay protection with selectable I²t or flat response
• High interrupting capacity for demanding electrical systems
• Designed for commercial and industrial power distribution

Technical Specifications

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Model Number: CRDC320T33W
• Frame Type: R Frame
• Trip Unit Type: Electronic Non-Interchangeable – Digitrip RMS 310
• Protection Functions: LS (Long Delay, Short Delay)
• Long Delay Pickup: Adjustable using rating plug
• Short Delay Response: I²t response or flat response selectable
• Trip Setting Range: 2–8 × Continuous Ampere Rating
• Number of Poles: 3 Pole
• Connection Type: Bolt-On

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Series: CRDC
• Rated Current: 2000A
• Maximum Voltage: 600VAC
• Mounting Type: Bolt-On Installation
• Warranty: 1 Year

Important Notice:
This breaker requires a compatible rating plug for proper operation. Rating plugs and optional accessories can be installed during ordering to meet your specific system requirements.
