Eaton Cutler Hammer E2M3600WA06 600A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

In stock
SKU: E2M3600WA06
$7,699.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton Cutler Hammer E2M3600WA06 is a robust molded case mining circuit breaker engineered for demanding industrial and mining electrical systems. Featuring an interchangeable thermal-magnetic trip unit, this 600 amp breaker delivers dependable overload and short-circuit protection in three-phase applications. The included A06 factory option adds an auxiliary switch with 1-A (Open) and 1-B (Closed) contacts, right pole mounted with rear exit wiring, allowing enhanced control and status monitoring. Designed with a secure bolt-on connection and rated for up to 600VAC, this breaker is built for high-performance protection in harsh operating environments.

Product Specifications

  • Brand: Eaton / Cutler Hammer
  • Model Number: E2M3600WA06
  • Amperage: 600 Amp
  • Number of Poles: 3 Pole
  • Breaker Type: Molded Case Mining Circuit Breaker
  • Mount Type: Bolt On
  • Frame Style: E2M / M Frame
  • Trip Unit Type: Interchangeable Thermal-Magnetic
  • Frequency: 50/60 Hz
  • Configuration: A06 Auxiliary Switch Option
  • Standard Lug Type: Without Terminals Standard

Technical Specifications

  • Thermal-magnetic protection for overload and short circuit faults
  • Interchangeable trip unit for adaptable protection settings
  • Heavy-duty molded case construction for mining and industrial use
  • Bolt-on mounting for secure installation
  • Operating temperature rating: 40°C
  • Trip Setting Range: 1500 – 3000
  • Auxiliary Switch Included: 1-A (Open), 1-B (Closed)
  • Switch Mounting: Right Pole Mounted
  • Auxiliary Wiring Exit: Rear

Voltage and Ratings

  • Maximum Voltage: 600 VAC
  • Rated Current: 600 Amp
  • Interrupting Capacity: 65 kA @ 240VAC
  • Interrupting Capacity: 35 / 50 kA @ 480VAC
  • Interrupting Capacity: 25 kA @ 600VAC
  • Frequency Rating: 50/60 Hz

Product Data

  • Condition: New / Surplus / Reconditioned (subject to stock)
  • Warranty: 1 Year
  • Product Category: Industrial Circuit Breaker
  • Suitable Applications: Mining, Industrial Power Systems, Distribution Panels, Heavy Equipment Protection
  • Manufacturer Series: Eaton E2M Series
  • Connection Type: Bolt On
  • Factory Installed Accessory: Auxiliary Switch A06 Option

Important Note

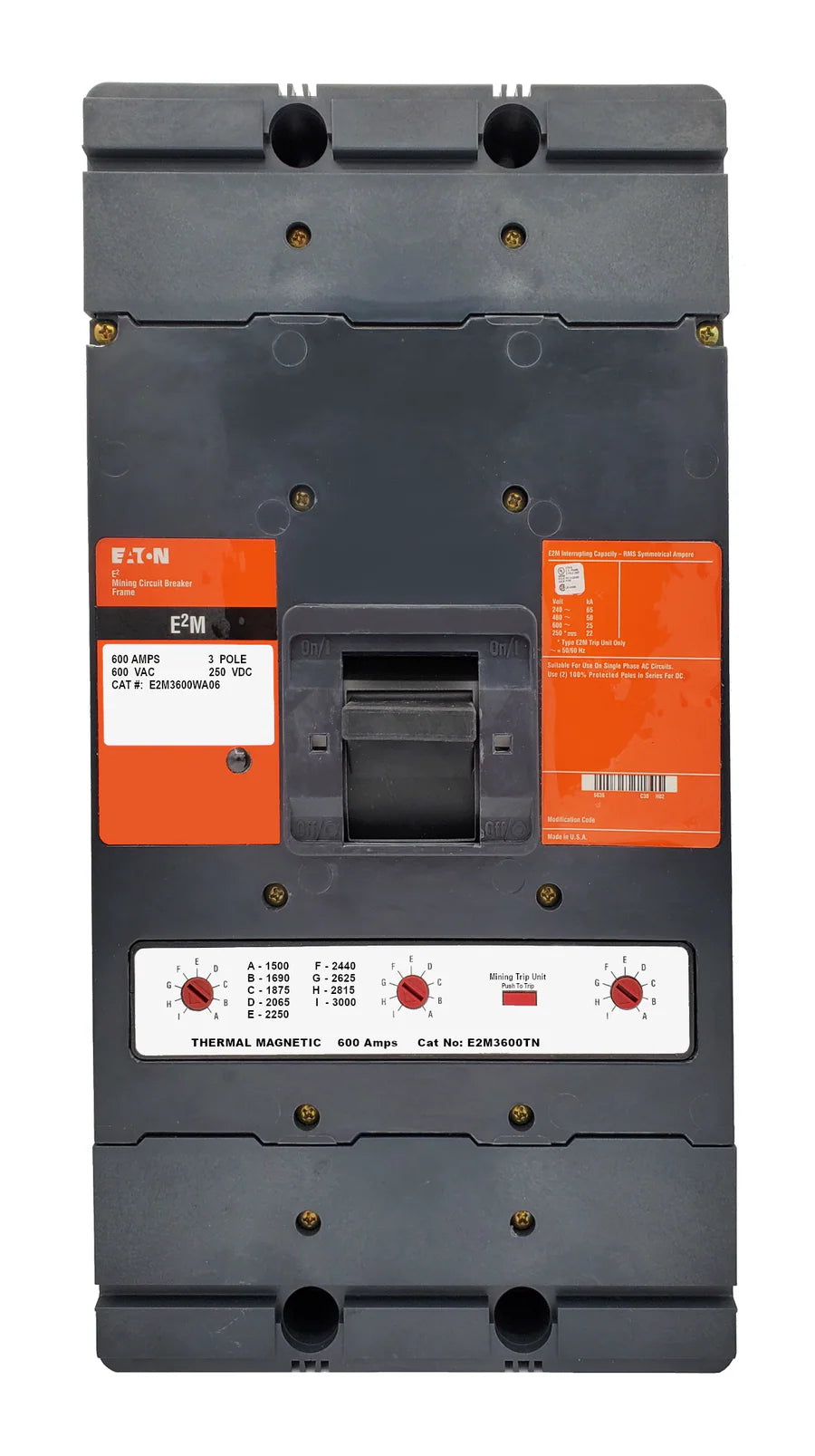

Product image may represent a standard base model and is for identification purposes only. This unit includes the A06 auxiliary switch configuration. Always verify compatibility, accessory requirements, trip settings, and terminal configuration before purchase or installation.
