Eaton Cutler Hammer E2M3600WA06U66 600A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

In stock
SKU: E2M3600WA06U66
$8,199.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton Cutler Hammer E2M3600WA06U66 is a high-performance molded case mining circuit breaker built for demanding industrial and mining electrical systems. Rated at 600 amps with a 3-pole design, this breaker features an interchangeable thermal-magnetic trip unit for dependable overload and short-circuit protection. It includes the A06 auxiliary switch option for remote status indication and the U66 undervoltage release option with LED indicator for enhanced system safety and control. Designed with a secure bolt-on connection and rated for operation up to 600VAC, this breaker is ideal for heavy-duty three-phase power distribution applications.

Product Specifications

  • Brand: Eaton / Cutler Hammer
  • Model Number: E2M3600WA06U66
  • Amperage: 600 Amp
  • Number of Poles: 3 Pole
  • Breaker Type: Molded Case Mining Circuit Breaker
  • Mount Type: Bolt On
  • Frame Style: E2M / M Frame
  • Trip Unit Type: Interchangeable Thermal-Magnetic
  • Frequency: 50/60 Hz
  • Configuration: A06 + U66 Factory Installed Options
  • Standard Lug Type: Without Terminals Standard

Technical Specifications

  • Thermal-magnetic trip protection for overload and short circuit conditions
  • Interchangeable trip unit for flexible protection requirements
  • Heavy-duty molded case construction for mining and industrial environments
  • Bolt-on mounting for secure panel installation
  • Operating temperature rating: 40°C
  • Trip Setting Range: 1500 – 3000
  • A06 Option: 1-A (Open) / 1-B (Closed) Auxiliary Switch
  • A06 Mounting Location: Right Pole Mounted
  • A06 Wiring Exit: Rear
  • U66 Option: 120 VAC Undervoltage Release (UVR)
  • U66 Includes LED Indicator
  • U66 Mounting Location: Left Pole Mounted
  • U66 Wiring Exit: Rear

Voltage and Ratings

  • Maximum Voltage: 600 VAC
  • Rated Current: 600 Amp
  • Interrupting Capacity: 65 kA @ 240VAC
  • Interrupting Capacity: 35 / 50 kA @ 480VAC
  • Interrupting Capacity: 25 kA @ 600VAC
  • Frequency Rating: 50/60 Hz
  • UVR Control Voltage: 120 VAC

Product Data

  • Condition: New / Surplus / Reconditioned (subject to stock availability)
  • Warranty: 1 Year
  • Product Category: Industrial Circuit Breaker
  • Suitable Applications: Mining Systems, Industrial Panels, Power Distribution, Equipment Protection
  • Manufacturer Series: Eaton E2M Series
  • Connection Type: Bolt On
  • Installed Accessories: Auxiliary Switch + Undervoltage Release with LED

Important Note

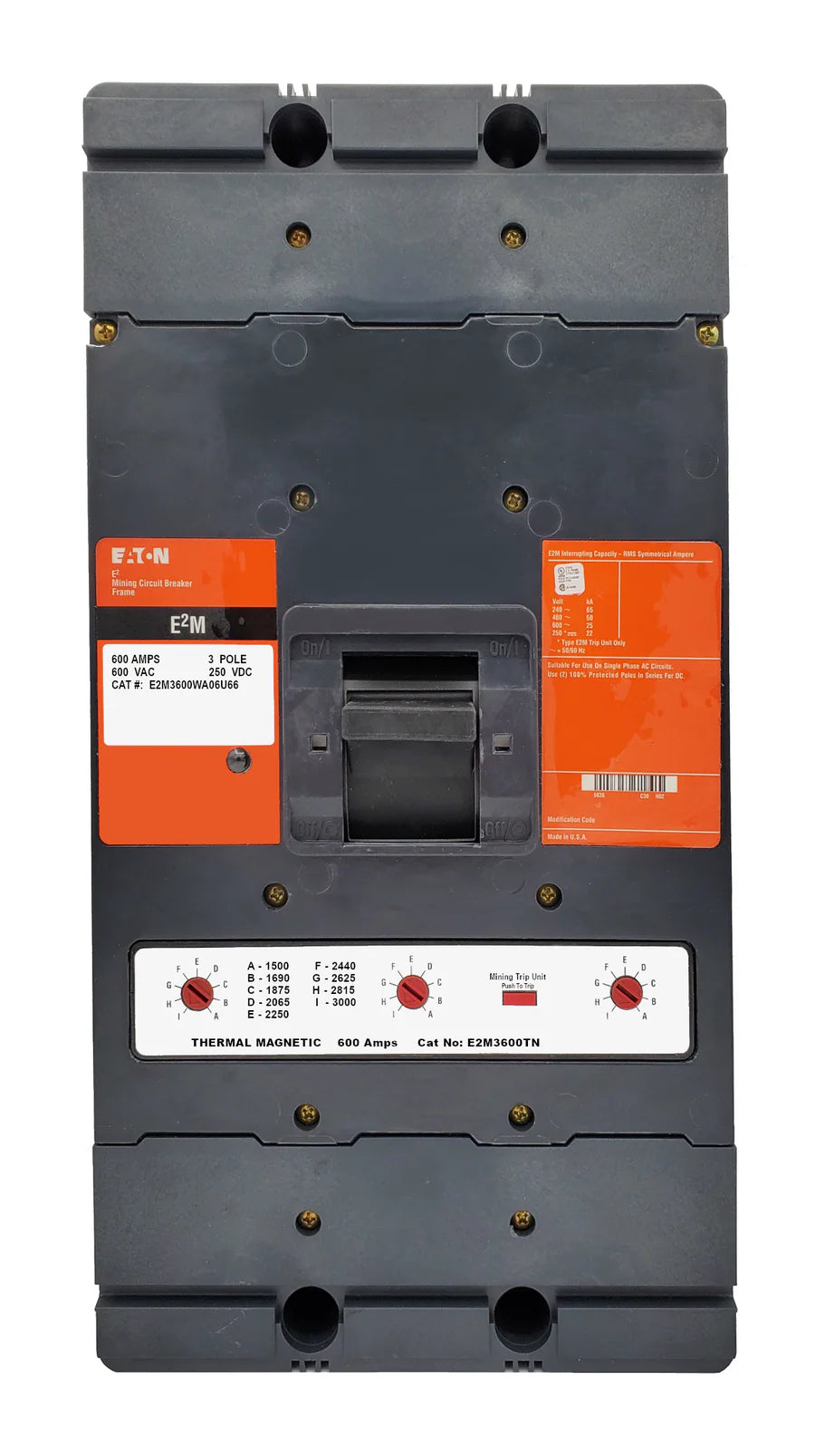

Product image may represent a standard base model and is for identification purposes only. This unit includes factory-installed A06 and U66 accessory options. Always verify voltage requirements, trip settings, terminal needs, and accessory compatibility before purchase or installation.
