Eaton Cutler Hammer E2M3600WA13 600A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

The Eaton Cutler Hammer E2M3600WA13 is a heavy-duty molded case mining circuit breaker designed for reliable protection in demanding industrial and mining power systems. Rated at 600 amps with a 3-pole configuration, this breaker features an interchangeable thermal-magnetic trip unit that provides dependable overload and short-circuit protection. The factory-installed A13 option includes dual auxiliary contacts for enhanced remote monitoring and control functions. Built with a bolt-on connection and rated for systems up to 600VAC, this breaker is ideal for three-phase power distribution where durability and performance are critical.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model Number: E2M3600WA13
• Amperage: 600 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker
• Mount Type: Bolt On
• Frame Style: E2M / M Frame
• Trip Unit Type: Interchangeable Thermal-Magnetic
• Frequency: 50/60 Hz
• Configuration: A13 Auxiliary Switch Option
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Thermal-magnetic trip protection for overload and short circuit faults
• Interchangeable trip unit for adjustable protection requirements
• Heavy-duty molded case construction for harsh industrial environments
• Bolt-on mounting for secure installation
• Operating temperature rating: 40°C
• Trip Setting Range: 1500 – 3000
• A13 Option Includes: 2-A (Open) / 2-B (Closed) Auxiliary Switches
• Auxiliary Switch Mounting: Right Pole Mounted
• Wiring Exit Location: Rear

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Rated Current: 600 Amp
• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 35 / 50 kA @ 480VAC
• Interrupting Capacity: 25 kA @ 600VAC
• Frequency Rating: 50/60 Hz

Product Data

• Condition: New / Surplus / Reconditioned (subject to stock availability)
• Warranty: 1 Year
• Product Category: Industrial Circuit Breaker
• Suitable Applications: Mining Equipment, Industrial Distribution Panels, Motor Protection, Heavy Power Systems
• Manufacturer Series: Eaton E2M Series
• Connection Type: Bolt On
• Installed Accessories: Dual Auxiliary Switch Contacts

Important Note

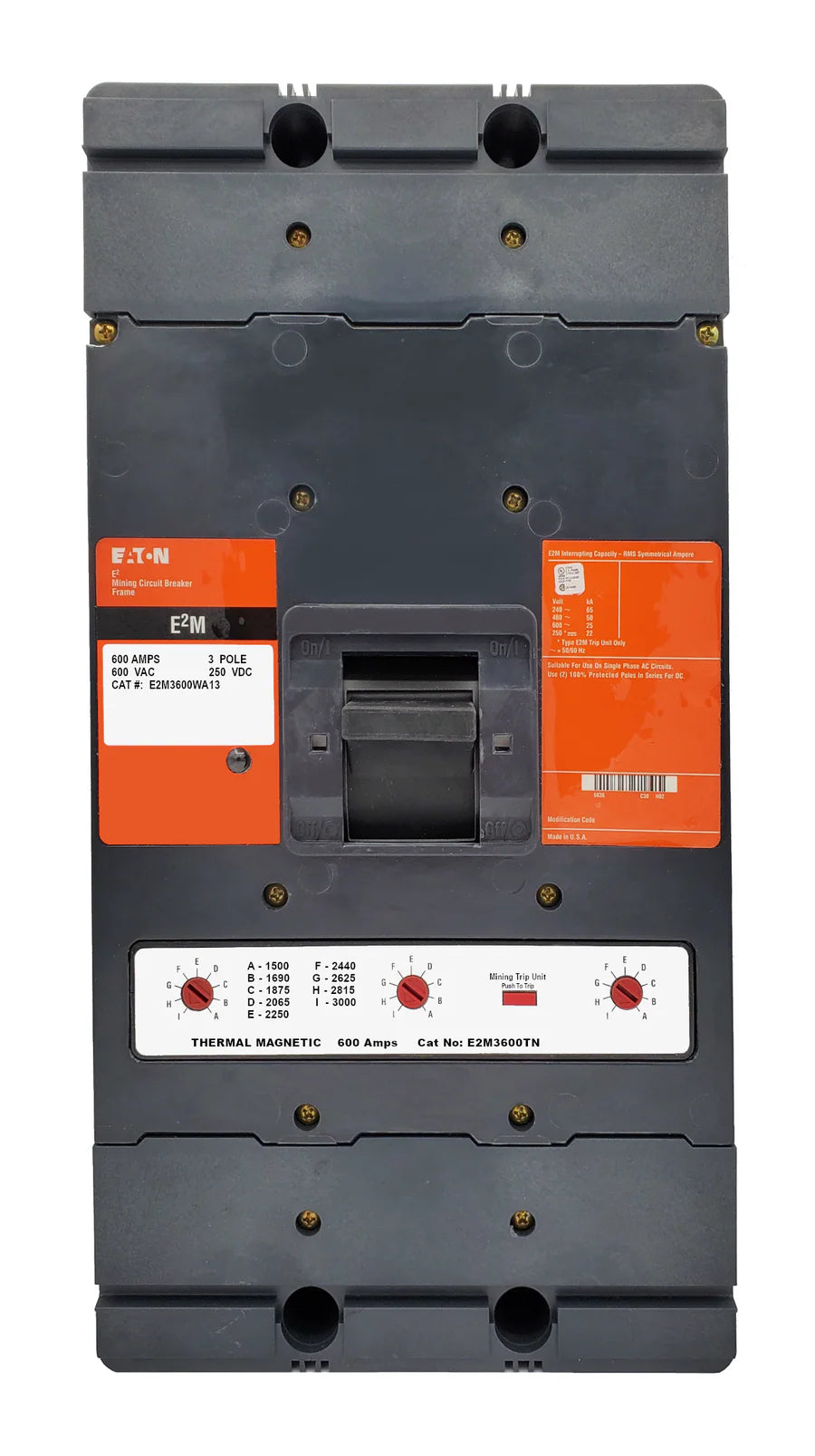

Product image may represent a standard base model and is for identification purposes only. This unit includes the factory-installed A13 auxiliary switch option. Always verify accessory configuration, trip settings, voltage requirements, and terminal compatibility before purchase or installation.
