Eaton Cutler Hammer E2M3600WU66 600A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

The Eaton Cutler Hammer E2M3600WU66 is a rugged molded case mining circuit breaker designed for demanding industrial and mining electrical systems. Rated at 600 amps with a 3-pole configuration, this breaker features an interchangeable thermal-magnetic trip unit that delivers dependable overload and short-circuit protection. The factory-installed U66 option includes a 120 VAC undervoltage release with LED indication, providing enhanced safety by automatically tripping the breaker during low-voltage conditions. With a bolt-on mounting design and 600VAC rating, this breaker is ideal for three-phase power distribution and equipment protection in harsh environments.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model Number: E2M3600WU66
• Amperage: 600 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker
• Mount Type: Bolt On
• Frame Style: E2M / M Frame
• Trip Unit Type: Interchangeable Thermal-Magnetic
• Frequency: 50/60 Hz
• Configuration: U66 Factory Installed Option
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Thermal-magnetic trip protection for overload and short circuit faults
• Interchangeable trip unit for adjustable protection settings
• Heavy-duty molded case construction for industrial and mining service
• Bolt-on mounting for secure installation
• Operating temperature rating: 40°C
• Trip Setting Range: 1500 – 3000
• U66 Option Includes: 120 VAC Undervoltage Release (UVR)
• Includes LED Indicator
• Mounting Position: Left Pole Mounted
• Wiring Exit Location: Rear

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Rated Current: 600 Amp
• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 35 / 50 kA @ 480VAC
• Interrupting Capacity: 25 kA @ 600VAC
• Frequency Rating: 50/60 Hz
• UVR Control Voltage: 120 VAC

Product Data

• Condition: New / Surplus / Reconditioned (subject to stock availability)
• Warranty: 1 Year
• Product Category: Industrial Circuit Breaker
• Suitable Applications: Mining Systems, Industrial Distribution Panels, Motor Protection, Heavy Equipment Circuits
• Manufacturer Series: Eaton E2M Series
• Connection Type: Bolt On
• Installed Accessories: Undervoltage Release with LED

Important Note

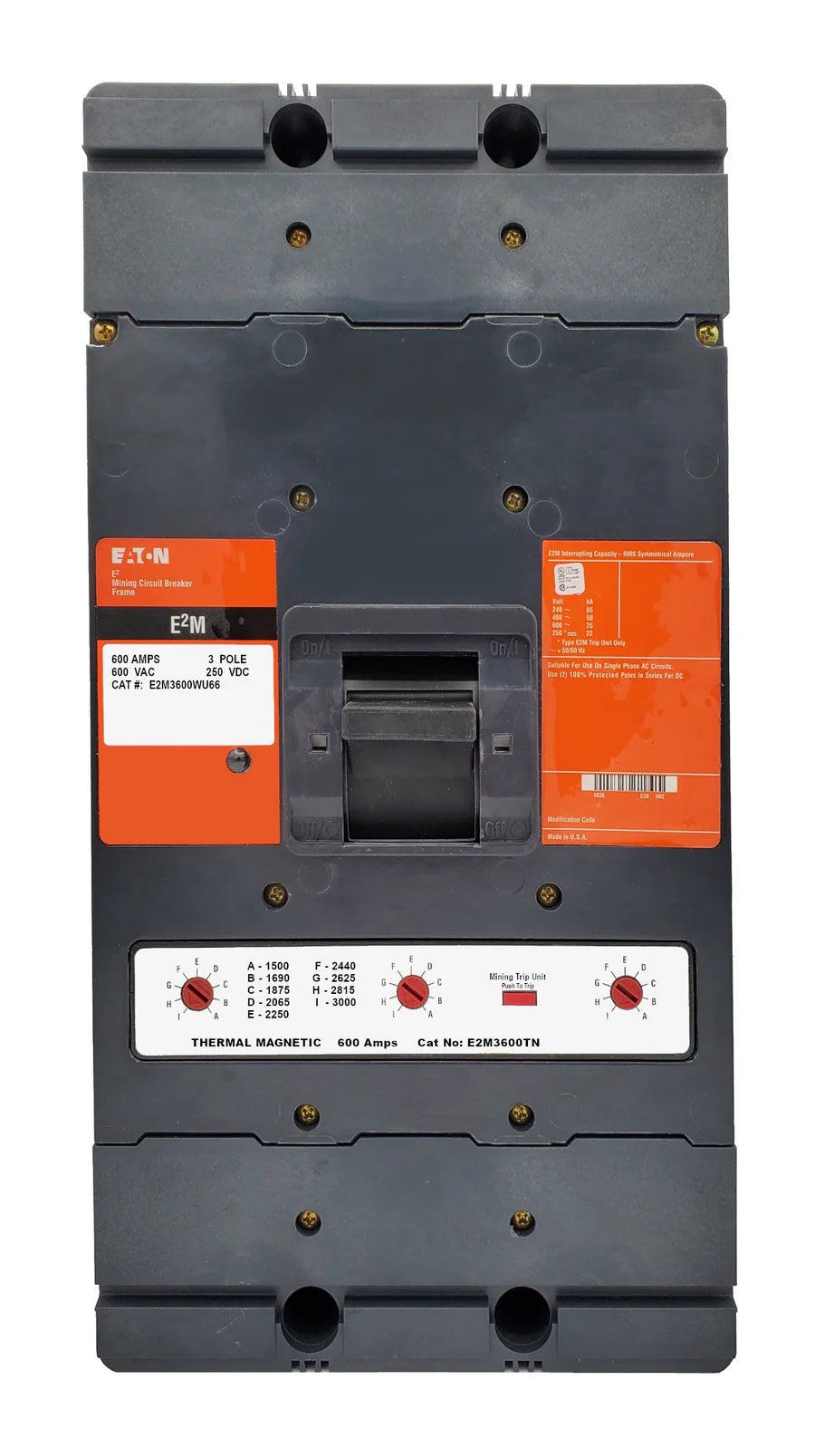

Product image may represent a standard base model and is for identification purposes only. This unit includes the factory-installed U66 undervoltage release accessory. Always verify system voltage, trip settings, accessory configuration, and terminal compatibility before purchase or installation.
