Eaton Cutler Hammer E2M3800F 3 Pole Molded Case Mining Circuit Breaker Frame Only – Bolt On – 600VAC

The Eaton Cutler Hammer E2M3800F is an E2M frame style molded case mining circuit breaker frame supplied as a frame-only unit for replacement, rebuild, or custom configuration applications. Designed for demanding industrial and mining environments, this 3-pole breaker frame provides a durable platform for compatible trip units and internal accessories. Its heavy-duty molded case construction and bolt-on mounting design make it suitable for three-phase power distribution systems requiring dependable service and flexible component integration.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model Number: E2M3800F
• Amperage: Frame Only
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker Frame Only
• Mount Type: Bolt On
• Frame Style: E2M / M Frame
• Trip Unit Type: Not Included
• Configuration: Frame Only
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Heavy-duty molded case frame for industrial and mining service
• Designed for compatible Eaton/Cutler Hammer trip units and accessories
• Bolt-on mounting for secure installation
• 3-pole frame for three-phase systems
• Suitable for replacement or refurbishment projects
• Durable insulated case construction
• Trip mechanism and accessories may be installed separately depending on configuration

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 35 / 50 kA @ 480VAC
• Interrupting Capacity: 25 kA @ 600VAC
• Interrupting Capacity: 22 kA @ 250VDC

Product Data

• Condition: New / Surplus / Reconditioned (subject to stock availability)
• Warranty: 1 Year
• Product Category: Circuit Breaker Frame
• Suitable Applications: Mining Systems, Industrial Switchgear, Distribution Panels, Replacement Assemblies
• Manufacturer Series: Eaton E2M Series
• Connection Type: Bolt On
• Included Components: Frame Only (trip unit and accessories not included)

Important Note

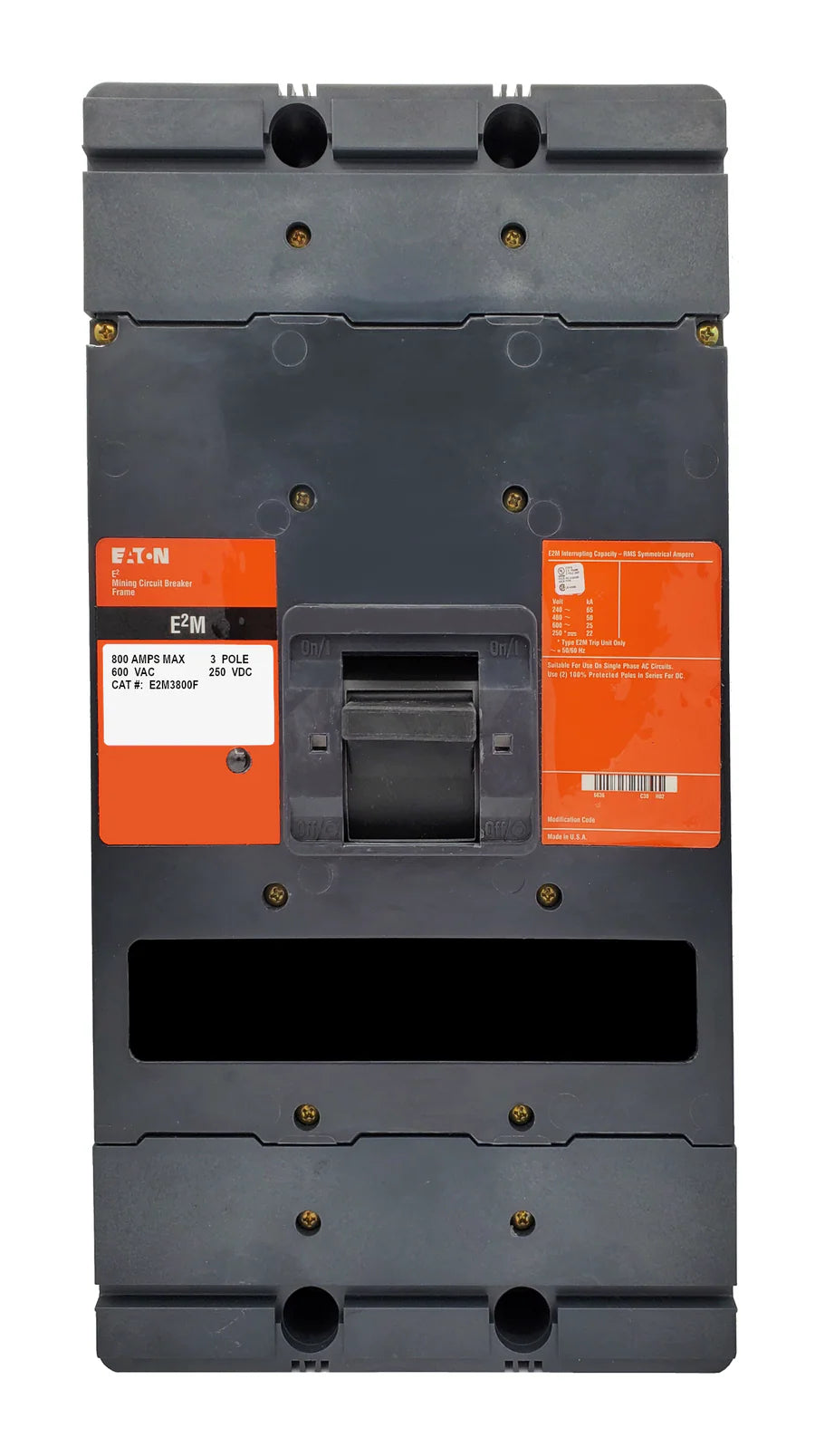

Product image may represent a standard base model and is for identification purposes only. This item is sold as a frame-only unit and may not include trip unit, terminals, internal accessories, or hardware unless specifically stated. Always verify compatibility with required components before purchase or installation.
