Eaton Cutler Hammer E2M3800MNWA13 800A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

The Eaton Cutler Hammer E2M3800MNWA13 is a heavy-duty molded case mining circuit breaker engineered for high-demand industrial and mining electrical systems. Rated at 800 amps with a 3-pole configuration, it utilizes an interchangeable magnetic-only trip unit designed to provide instantaneous short-circuit protection in systems where overload protection is handled separately. The integrated A13 option enhances operational monitoring by providing dual auxiliary contacts for open/closed status indication. With a robust molded case design and secure bolt-on mounting, this breaker is suitable for reliable operation in harsh environments up to 600VAC.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model Number: E2M3800MNWA13
• Amperage: 800 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker
• Mount Type: Bolt On
• Frame Style: E2M / M Frame
• Trip Unit Type: Interchangeable Magnetic Only
• Frequency: 50/60 Hz
• Configuration: A13 Auxiliary Switch Option
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Magnetic-only trip unit for instantaneous short-circuit protection
• Interchangeable trip unit design for application flexibility
• Heavy-duty molded case construction for mining and industrial environments
• Bolt-on mounting for secure installation
• Operating temperature rating: 40°C
• Trip Setting Range: 1500 – 3000
• A13 Option Includes: 2-A (Open) / 2-B (Closed) Auxiliary Switches
• Auxiliary Switch Mounting: Right Pole Mounted
• Wiring Exit Location: Rear
• Suitable for systems requiring external overload protection

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Rated Current: 800 Amp
• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 35 / 50 kA @ 480VAC
• Interrupting Capacity: 25 kA @ 600VAC
• Interrupting Capacity: 22 kA @ 250VDC
• Frequency Rating: 50/60 Hz

Product Data

• Condition: New / Surplus / Reconditioned (subject to stock availability)
• Warranty: 1 Year
• Product Category: Industrial Circuit Breaker
• Suitable Applications: Mining Operations, Industrial Distribution Systems, Motor Protection Circuits, Heavy-Duty Power Feeders
• Manufacturer Series: Eaton E2M Series
• Connection Type: Bolt On
• Installed Accessories: Dual Auxiliary Switch (A13 Option)
• Lug Type: Without Terminals Standard

Important Note

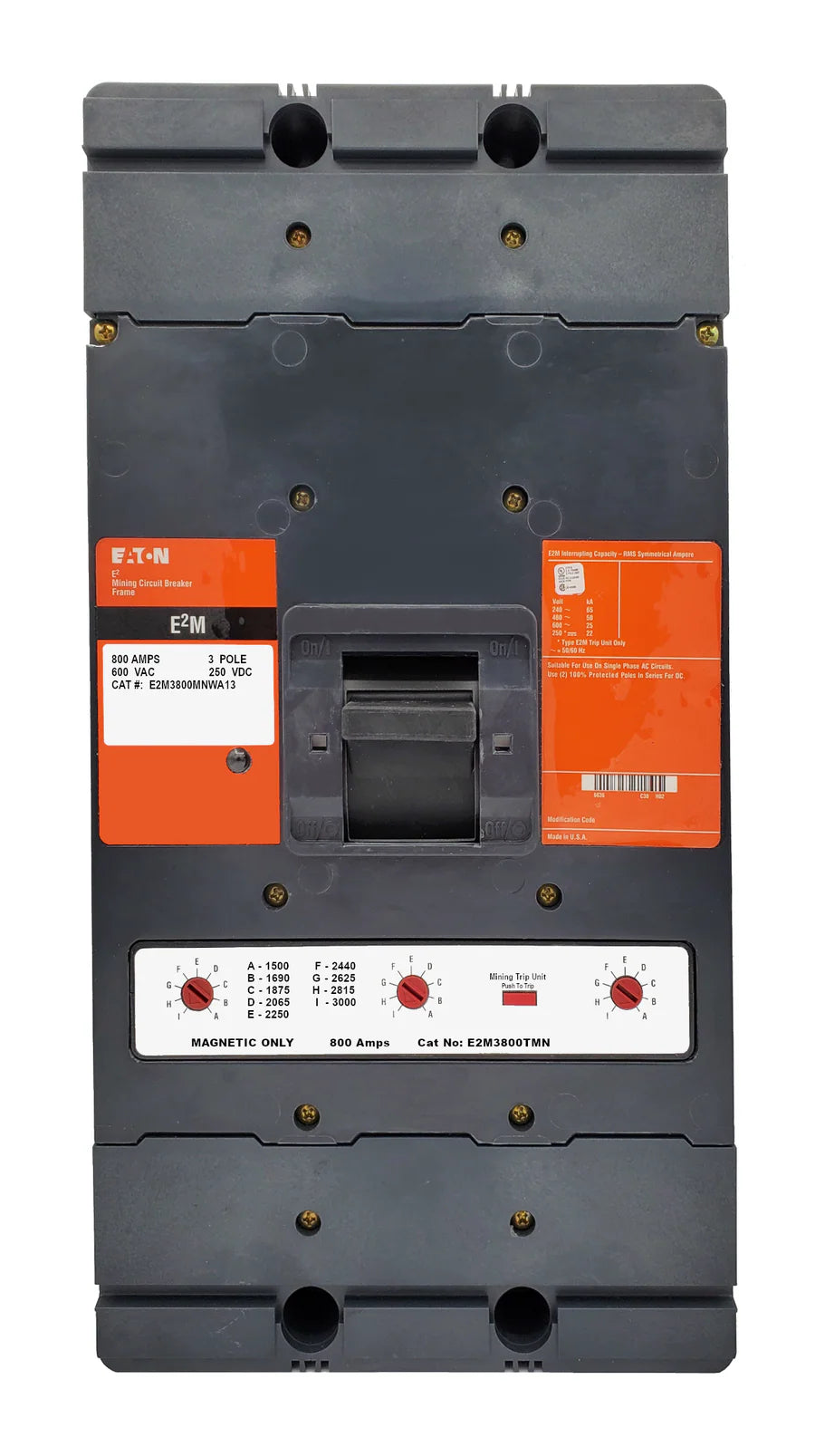

Product image may represent a standard base model and is for identification purposes only. This unit includes the factory-installed A13 auxiliary switch option and uses a magnetic-only trip system. Always verify coordination requirements, external overload protection, voltage rating, and accessory compatibility before installation or purchase.
