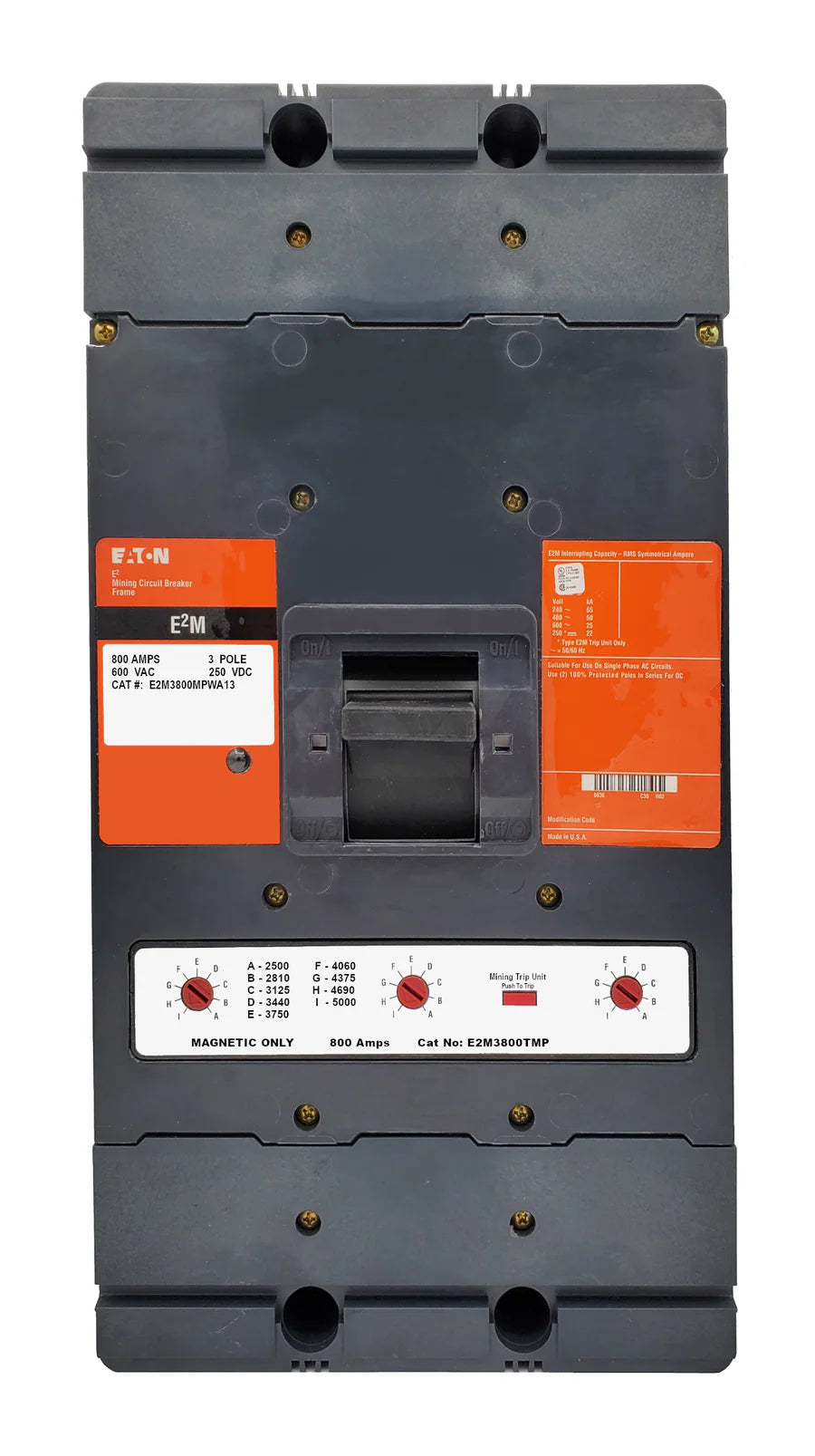

Eaton Cutler Hammer E2M3800MPWA13 800A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

The Eaton Cutler Hammer E2M3800MPWA13 is a rugged molded case mining circuit breaker designed for high-demand industrial and mining power distribution systems. Rated at 800 amps with a 3-pole configuration, it features an interchangeable magnetic-only trip unit that provides instantaneous short-circuit protection, typically used in systems where overload protection is managed separately. The integrated A13 option adds dual auxiliary contacts for breaker status indication, improving monitoring and control capabilities in electrical systems. Its heavy-duty molded case construction and bolt-on mounting ensure reliable performance in harsh environments up to 600VAC.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model Number: E2M3800MPWA13
• Amperage: 800 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker
• Mount Type: Bolt On
• Frame Style: E2M / M Frame
• Trip Unit Type: Interchangeable Magnetic Only
• Frequency: 50/60 Hz
• Configuration: A13 Auxiliary Switch Option
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Magnetic-only trip unit for instantaneous short-circuit protection
• Requires external overload protection depending on system design
• Heavy-duty molded case construction for mining and industrial environments
• Bolt-on mounting for secure installation
• Operating temperature rating: 40°C
• Trip Setting Range: 2500 – 5000
• A13 Option Includes: 2-A (Open) / 2-B (Closed) Auxiliary Switch
• A13 Mounting Position: Right Pole Mounted
• A13 Wiring Exit: Rear
• Suitable for feeder and motor circuit applications

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Rated Current: 800 Amp
• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 35 / 50 kA @ 480VAC
• Interrupting Capacity: 25 kA @ 600VAC
• Interrupting Capacity: 22 kA @ 250VDC
• Frequency Rating: 50/60 Hz

Product Data

• Condition: New / Surplus / Reconditioned (subject to availability)
• Warranty: 1 Year
• Product Category: Industrial Circuit Breaker
• Suitable Applications: Mining Systems, Industrial Power Distribution, Motor Circuits, Heavy-Duty Feeders
• Manufacturer Series: Eaton E2M Series
• Connection Type: Bolt On
• Installed Accessories: Auxiliary Switch (A13 Option)
• Lug Type: Without Terminals Standard

Important Note

Product image may represent a standard base model and is for identification purposes only. This unit includes the factory-installed A13 auxiliary switch option and uses a magnetic-only trip system requiring external overload protection depending on application design. Always verify coordination requirements, voltage rating, accessory configuration, and installation suitability before purchase or use.
