Eaton Cutler Hammer E2M3800MWWA06U66 800A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

The Eaton Cutler Hammer E2M3800MWWA06U66 is a high-capacity molded case mining circuit breaker designed for demanding industrial and mining power distribution systems. Rated at 800 amps with a 3-pole configuration, it incorporates an interchangeable magnetic-only trip unit that delivers instantaneous short-circuit protection, typically used in systems where overload protection is provided separately. This configuration includes both the A06 auxiliary switch for breaker status indication and the U66 undervoltage release with LED indicator for enhanced operational safety and automatic tripping under low-voltage conditions. Built with a rugged molded case and bolt-on mounting design, it ensures reliable performance in harsh environments up to 600VAC.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model Number: E2M3800MWWA06U66
• Amperage: 800 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker
• Mount Type: Bolt On
• Frame Style: E2M / M Frame
• Trip Unit Type: Interchangeable Magnetic Only
• Frequency: 50/60 Hz
• Configuration: A06 + U66 Factory Options
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Magnetic-only trip unit for instantaneous short-circuit protection
• Requires external overload protection depending on system design
• Heavy-duty molded case construction for mining and industrial environments
• Bolt-on mounting for secure installation
• Operating temperature rating: 40°C
• Trip Setting Range: 3000 – 6000
• A06 Option Includes: 1-A (Open) / 1-B (Closed) Auxiliary Switch
• A06 Mounting Position: Right Pole Mounted
• A06 Wiring Exit: Rear
• U66 Option Includes: 120 VAC Undervoltage Release (UVR)
• U66 Includes LED Indicator
• U66 Mounting Position: Left Pole Mounted
• U66 Wiring Exit: Rear

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Rated Current: 800 Amp
• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 35 / 50 kA @ 480VAC
• Interrupting Capacity: 25 kA @ 600VAC
• Interrupting Capacity: 22 kA @ 250VDC
• Frequency Rating: 50/60 Hz
• UVR Control Voltage: 120 VAC

Product Data

• Condition: New / Surplus / Reconditioned (subject to availability)
• Warranty: 1 Year
• Product Category: Industrial Circuit Breaker
• Suitable Applications: Mining Systems, Industrial Power Distribution, Motor Circuits, Heavy-Duty Feeders, Critical Protection Systems
• Manufacturer Series: Eaton E2M Series
• Connection Type: Bolt On
• Installed Accessories: Auxiliary Switch + Undervoltage Release with LED
• Lug Type: Without Terminals Standard

Important Note

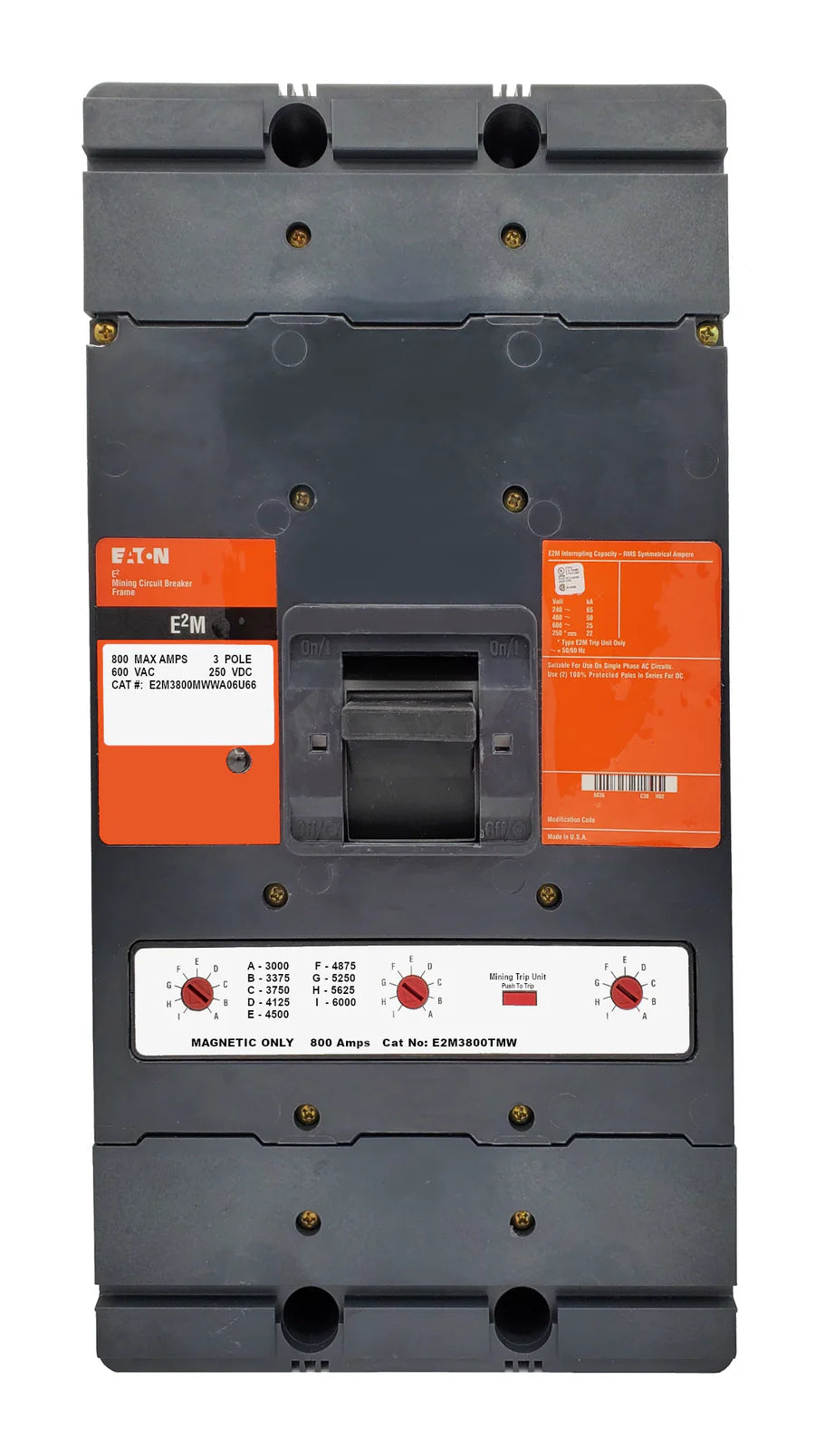

Product image may represent a standard base model and is for identification purposes only. This unit includes factory-installed A06 and U66 accessory options and uses a magnetic-only trip system requiring external overload protection depending on application design. Always verify coordination requirements, voltage rating, accessory configuration, and installation suitability before purchase or use.
