Eaton Cutler Hammer E2M3800WA06 800A 3 Pole Molded Case Mining Circuit Breaker – Bolt On – 600VAC

The Eaton Cutler Hammer E2M3800WA06 is a heavy-duty molded case mining circuit breaker designed for reliable protection in industrial and mining power distribution systems. Rated at 800 amps with a 3-pole configuration, it features an interchangeable thermal-magnetic trip unit that delivers both overload and instantaneous short-circuit protection. This model includes the A06 auxiliary switch option, providing breaker open/closed status indication for remote monitoring and control applications. With rugged molded case construction and bolt-on mounting, it is engineered for dependable performance in harsh environments up to 600VAC.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model Number: E2M3800WA06
• Amperage: 800 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker
• Mount Type: Bolt On
• Frame Style: E2M / M Frame
• Trip Unit Type: Interchangeable Thermal-Magnetic
• Frequency: 50/60 Hz
• Configuration: A06 Auxiliary Switch Option
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Thermal-magnetic trip unit for overload and short-circuit protection
• Interchangeable trip unit design for maintenance flexibility
• Heavy-duty molded case construction for mining and industrial service
• Bolt-on mounting for secure installation
• Operating temperature rating: 40°C
• Trip Setting Range: 2000 – 4000
• A06 Option Includes: 1-A (Open) / 1-B (Closed) Auxiliary Switch
• Mounted on right pole with rear exit wiring
• Suitable for feeder circuits, motor loads, and power distribution systems
• Reliable mechanical switching performance

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Rated Current: 800 Amp
• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 35 / 50 kA @ 480VAC
• Interrupting Capacity: 25 kA @ 600VAC
• Interrupting Capacity: 22 kA @ 250VDC
• Frequency Rating: 50/60 Hz

Product Data

• Condition: New / Surplus / Reconditioned (subject to availability)
• Warranty: 1 Year
• Product Category: Industrial Circuit Breaker
• Suitable Applications: Mining Systems, Industrial Power Distribution, Motor Circuits, Heavy-Duty Feeders
• Manufacturer Series: Eaton E2M Series
• Connection Type: Bolt On
• Installed Accessories: Auxiliary Switch (A06 Option)
• Lug Type: Without Terminals Standard

Important Note

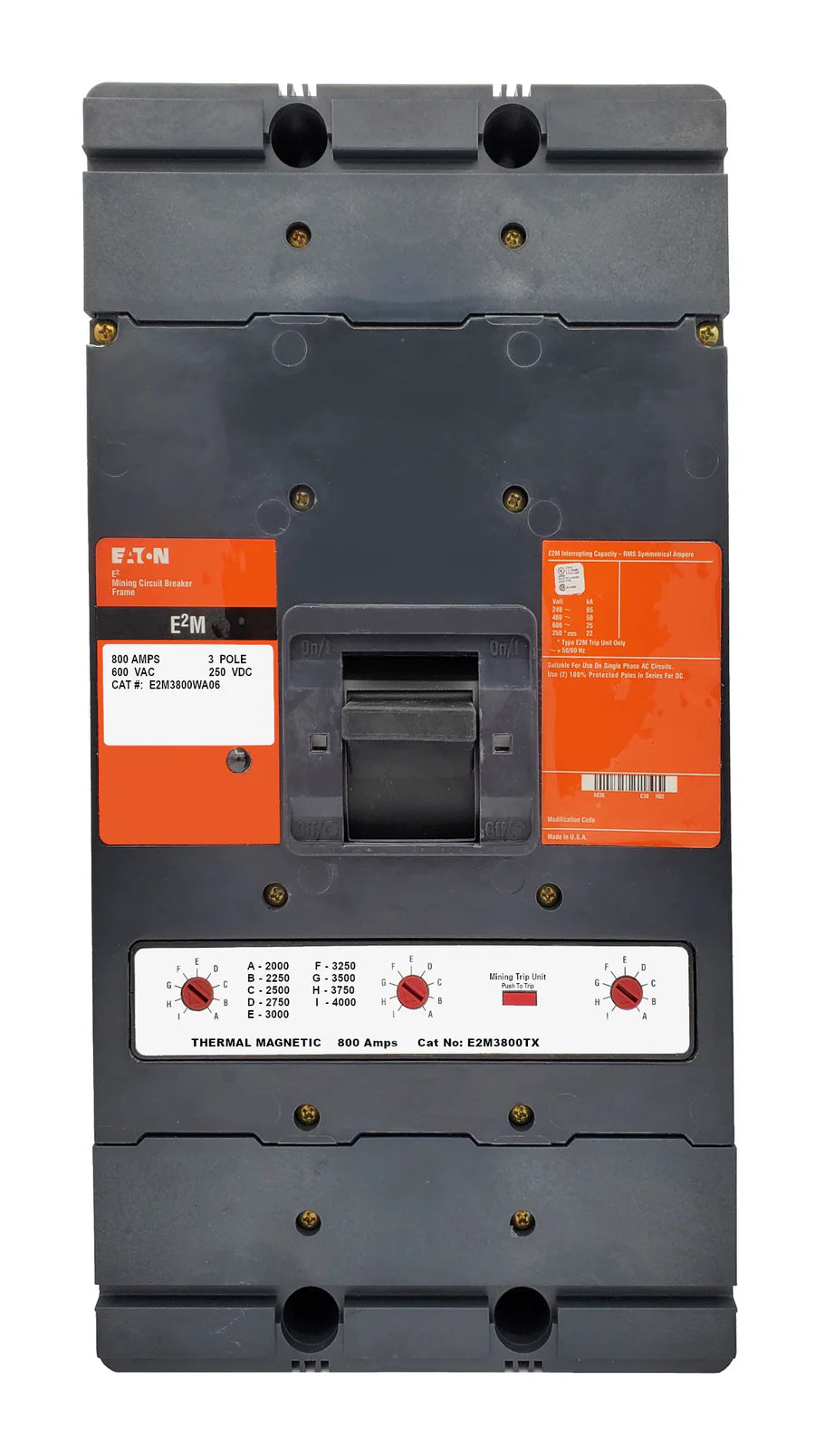

Product image may represent a standard base model and is for identification purposes only. This unit includes the factory-installed A06 auxiliary switch option for breaker status indication. Always verify voltage rating, trip settings, accessory compatibility, terminal requirements, and installation suitability before purchase or use.
