Eaton Cutler Hammer FHL360601212 60A 3 Pole Molded Case Circuit Breaker with Auxiliary Switch – Bolt-On Mount – 600VAC

The FHL360601212 by Eaton / Cutler Hammer is a heavy-duty molded case circuit breaker designed for industrial and commercial power distribution systems. Featuring an FHL frame style and a thermal magnetic non-interchangeable trip unit, this breaker delivers dependable overload and short-circuit protection for demanding three-phase applications. The breaker includes a factory-installed 1A-1B auxiliary switch for remote status indication and control integration. Its bolt-on mounting configuration ensures secure installation and stable electrical connections, while the rugged molded case design provides long-lasting operational reliability. With a 60-amp current rating and operation up to 600VAC, the FHL360601212 is ideal for advanced protection and monitoring applications.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: FHL360601212
• Product Type: Molded Case Circuit Breaker
• Frame Style: FHL
• Frame Type: F
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Mounting Type: Bolt-On
• Amperage Rating: 60 Amp
• Number of Poles: 3 Pole
• Auxiliary Switch Configuration: 1A-1B Installed
• Trip Setting: 800-1450
• Frequency: 50/60 Hz
• Terminal Type: Line and Load End Standard
• Voltage Maximum: 600VAC
• Warranty: 1 Year
• Manufacturer: Eaton / Cutler Hammer

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Factory-installed 1A-1B auxiliary switch for remote indication and control
• Non-interchangeable trip unit with fixed factory-calibrated settings
• Bolt-on mounting design for secure installation and dependable operation
• High interrupting capacity construction for demanding fault conditions
• Heavy-duty molded case construction for industrial-grade durability
• Designed for three-phase electrical distribution systems
• Standard line and load terminal configuration
• Rated for operation at 40°C ambient temperature

Voltage and Ratings

• Maximum Voltage: 600VAC
• Interrupting Capacity Ratings:
  • 65kA @ 240 VAC
  • 25kA @ 480 VAC
  • 18kA @ 600 VAC
• Current Rating: 60 Ampere
• Pole Configuration: 3 Pole
• Trip Setting Range: 800-1450

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Model Number: FHL360601212
• Connection Type: Bolt-On
• Frame Style: FHL
• Frame Type: F
• Lug Type: Line and Load End Standard
• Installed Accessory: 1A-1B Auxiliary Switch
• Interrupting Rating: 65kA / 25kA / 18kA
• Application: Industrial and commercial electrical distribution systems
• Warranty Coverage: One Year In-House Warranty
• Warranty Includes: Repairs, replacement parts, labor, and standard shipping required for recertification

Important Note

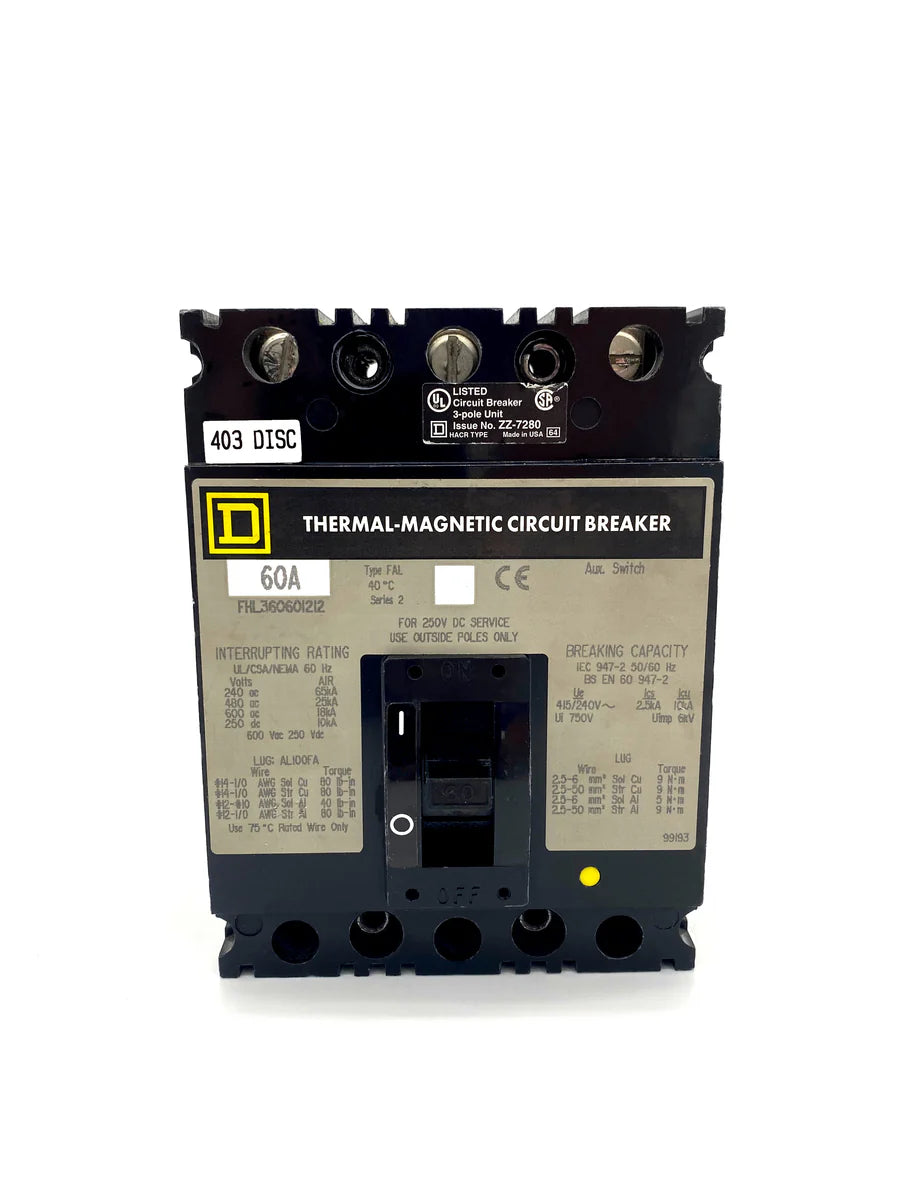

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased with the breaker can be professionally installed at no additional cost when configuration details are provided during checkout. The included one-year in-house warranty covers repairs, labor, replacement parts, and standard shipping required for recertification, excluding damage caused by misuse, improper handling, or normal wear and tear.
