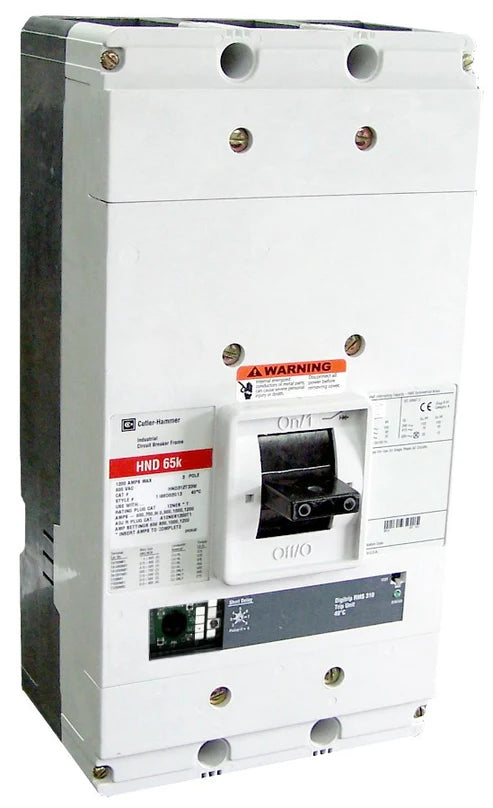

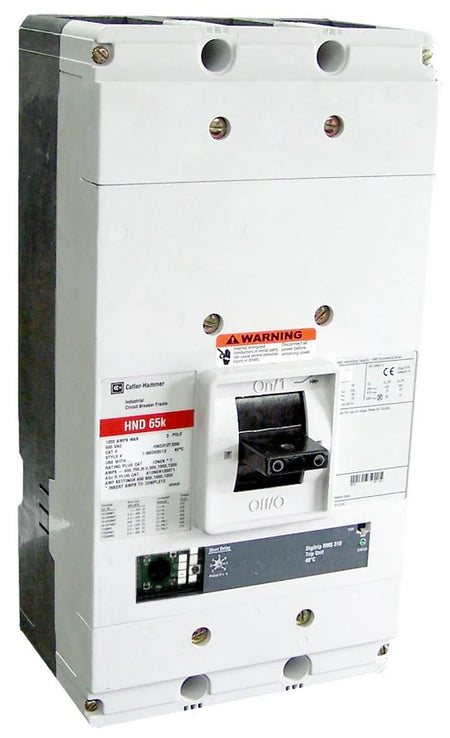

Eaton Cutler Hammer HND3800T32W 800A 3 Poles Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The Eaton / Cutler Hammer HND3800T32W is a reliable molded case circuit breaker engineered for industrial and commercial electrical distribution. Featuring the HND frame style with a Digitrip RMS 310 electronic non-interchangeable trip unit, it provides LSI (Long, Short, Instantaneous) trip unit functions to protect against overloads, short circuits, and instantaneous faults. Rated for 800 Amperes at 40°C, this breaker offers high interrupting capacity to ensure safe and efficient power system operation.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: HND3800T32W
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Frame Style: HND Frame
• Trip Unit: Digitrip RMS 310 Electronic Non-Interchangeable
• Trip Functions: LSI (Long Delay, Short Delay, Instantaneous)
• Mount Type: Bolt-On
• Rated Current: 800 Amperes
• Poles: 3
• Rating Plug: Not Included
• Standard Lug Type: Not Included
• Warranty: 1 Year

Technical Specifications

• Trip Technology: Electronic Trip Unit (Digitrip RMS 310)
• Long Delay Pickup (L): Adjustable via rating plug
• Short Delay Pickup (S): Adjustable with fixed or selectable delay time
• Instantaneous Pickup (I): Adjustable via short delay time setting
• Frame Temperature Rating: 40°C
• Frame Type: N Frame
• Frequency: 50/60 Hz

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Frequency Rating: 50/60 Hz
• Interrupting Capacity:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Series: HND
• Amperage Rating: 800 A
• Number of Poles: 3
• Mounting Style: Bolt-On
• Frame Type: N Frame
• Application: Industrial and commercial power distribution with LSI protection

Important Note

This breaker requires a rating plug for proper operation, which is not included. Installing the rating plug correctly is essential for full protection. Product images represent the base model for identification only. Accessories purchased with the breaker can be pre-installed at no extra cost—please provide configuration details in the order comment box during checkout.
