Eaton Cutler Hammer HND3800T35W 800A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The Eaton / Cutler Hammer HND3800T35W is a robust molded case circuit breaker designed for high-reliability industrial and commercial power systems. Featuring the HND frame and a Digitrip RMS 310 electronic non-interchangeable trip unit, it offers LSG (Long, Short, Ground Fault) trip functions to protect against overloads, short circuits, and ground faults. Rated at 800 Amperes at 40°C, it delivers high interrupting capacity to ensure system safety and continuity.

Key Features

• Electronic non-interchangeable Digitrip RMS 310 trip unit
• LS (Long & Short Delay) plus G (Ground Fault) trip protection
• Adjustable Long Delay Pickup via rating plug
• Adjustable Short Delay Pickup (fixed or selectable)
• Adjustable Ground Fault Pickup with configurable delay
• High interrupting ratings for robust fault handling
• Base model image for identification; accessories can be installed at no additional cost

Technical Specifications

• Manufacturer: Eaton / Cutler Hammer
• Frame Style: HND
• Mounting Type: Bolt-On
• Frame Type: N
• Rated Current: 800 Amperes
• Number of Poles: 3
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting Ratings:
• • 100 kA @ 240 VAC
  • 65 kA @ 480 VAC
  • 35 kA @ 600 VAC
• Standard Lug Type: Not Included
• Warranty: One Year

Trip Unit Functions

• L (Long Delay): Adjustable via rating plug
• S (Short Delay): Adjustable with fixed (l2t response) or flat response
• G (Ground Fault): Adjustable pickup and delay

Important Notes

• Rating Plug Required: This breaker will not operate without a correctly installed rating plug. Check stock and pricing if you need it installed before ordering.

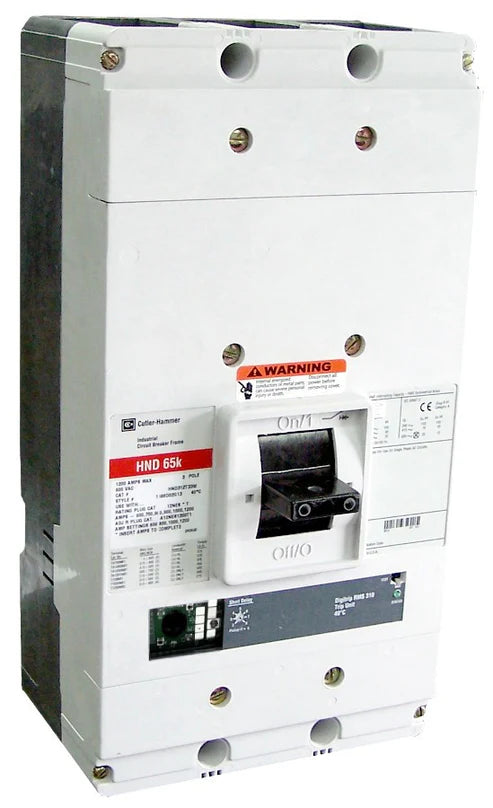

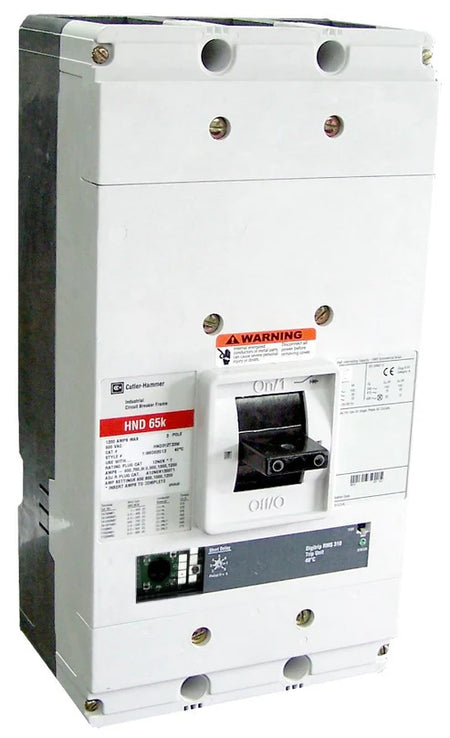

• Product image represents the base model for identification purposes. Accessories purchased with the breaker can be pre-installed based on configuration details provided during checkout.
