Eaton Cutler Hammer HND3800T36W 800A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The HND3800T36W is a high-performance molded case circuit breaker with LSIG (Long, Short, Instantaneous, Ground Fault) trip functions. It uses the Digitrip RMS 310 electronic non-interchangeable trip unit, providing advanced protection against overloads, short circuits, instantaneous faults, and ground faults. Rated for 800 Amperes at 40°C, this breaker is ideal for commercial and industrial power distribution systems requiring high reliability and safety.

Key Features

• Electronic non-interchangeable Digitrip RMS 310 trip unit
• LSIG trip protection for complete coverage:
• • L: Adjustable long delay via rating plug
  • S: Adjustable short delay with fixed (l2t) or flat response
  • I: Instantaneous pickup by setting short delay to instantaneous
  • G: Adjustable ground fault pickup with delay
• High interrupting ratings for fault tolerance
• Bolt-on mounting

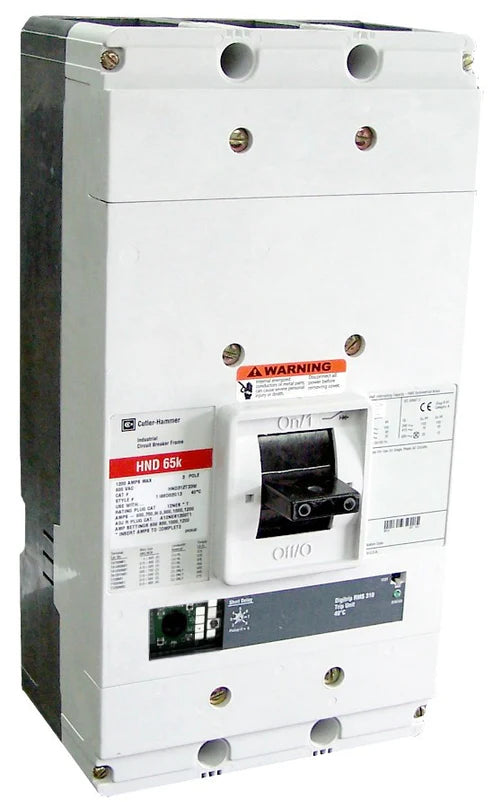

• Base model image used for identification; accessories can be pre-installed at no extra cost

Technical Specifications

• Manufacturer: Eaton / Cutler Hammer
• Frame Style: HND
• Mounting Type: Bolt-On
• Frame Type: N
• Rated Current: 800 Amperes
• Poles: 3
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting Ratings:
• • 100 kA @ 240 VAC
  • 65 kA @ 480 VAC
  • 35 kA @ 600 VAC
• Standard Lug Type: Not Included
• Warranty: One Year

Important Notes

• Rating Plug Required: This breaker requires a correctly installed rating plug to function. Check stock and pricing if one is needed before ordering.

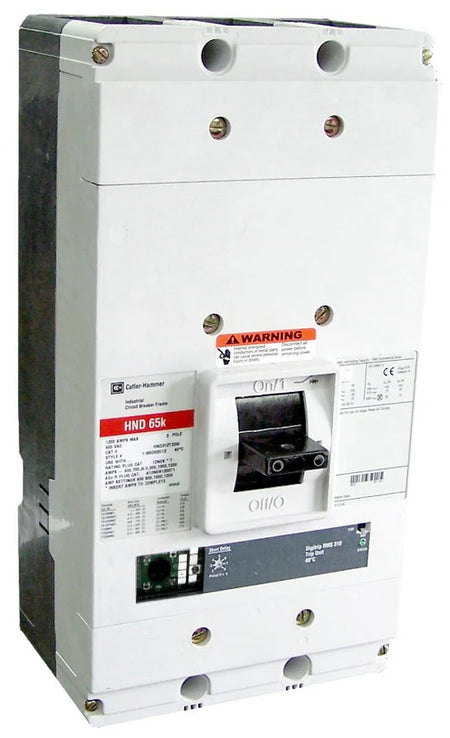

• Product image represents the base model only. Accessories purchased with the breaker can be installed according to your configuration details provided at checkout.
