Eaton Cutler Hammer JDC3225W 225 Amp 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The JDC3225W is a J-frame molded case circuit breaker designed for high-performance DC and AC applications. Rated at 225 amperes at 40°C, this 3-pole breaker features a thermal magnetic interchangeable trip unit with ultra-high interrupting capacity and current-limiting protection, ensuring rapid response to overloads and short circuits. Engineered for 600VAC systems, it comes without standard terminals, allowing for flexible installation and accessory customization. Ideal for industrial and commercial electrical systems requiring robust fault protection and minimal system stress.

Product Specifications

• Manufacturer: Eaton / Cutler-Hammer
• Model: JDC3225W
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: J Frame
• Rated Current: 225 Amp
• Number of Poles: 3
• Mounting Type: Bolt-On
• Trip Unit Type: Thermal Magnetic Interchangeable
• Terminal Type: Without Terminals Standard

Technical Specifications

• Adjustable trip setting: 5–10 times continuous ampere rating
• Thermal magnetic protection for overload and short-circuit
• Interchangeable trip unit for configuration flexibility
• Current-limiting design to reduce peak fault currents
• Ultra-high interrupting capacity for critical applications
• Rated current based on 40°C ambient temperature

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Interrupting Capacity:
• • 200 kA @ 240 VAC
  • 100 kA @ 480 VAC
  • 50 kA @ 600 VAC

Product Data

• Brand: Eaton / Cutler-Hammer
• Series: JDC
• Frame Size: J Frame
• Amperage Rating: 225A
• Poles: 3
• Connection Type: Bolt-On
• Trip Unit: Thermal Magnetic Interchangeable
• Standard Lug Type: Without Terminals
• Warranty: 1 Year

Important Note

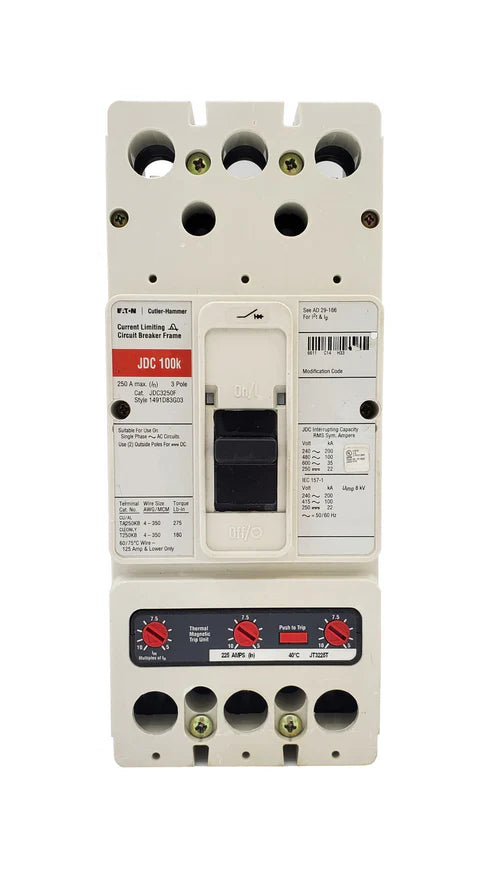

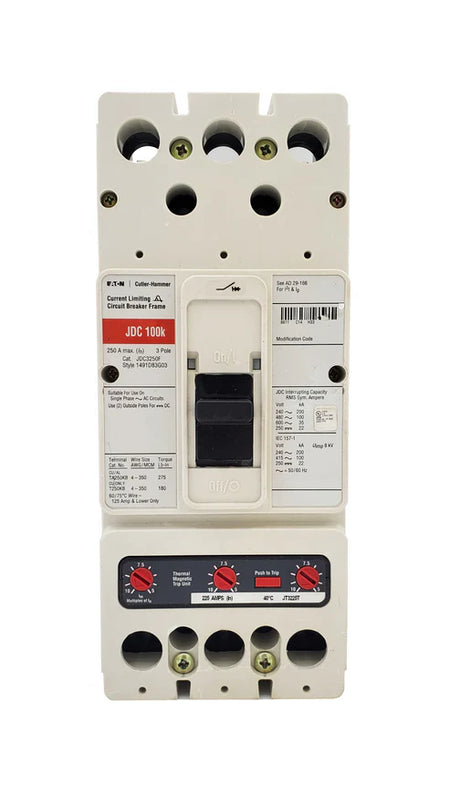

The product image represents a base model for identification purposes only. Accessories purchased with the breaker can be installed to meet your specific configuration requirements at no additional cost. Always verify voltage ratings, interrupting capacities, and system compatibility prior to installation for safe and reliable operation.
