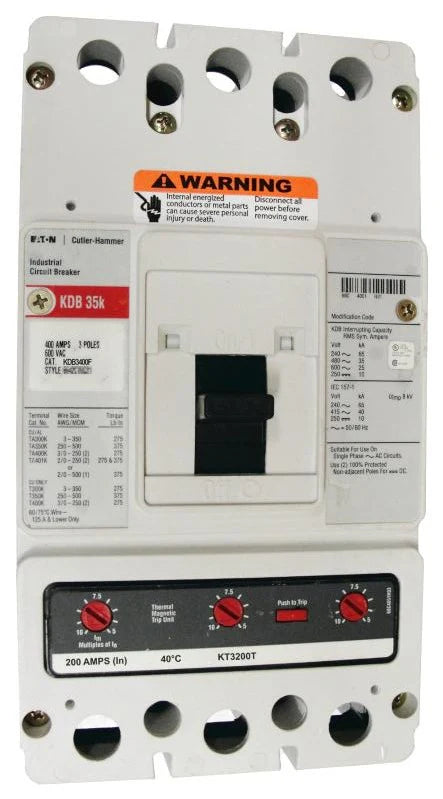

Eaton Cutler-Hammer KDB3200 200A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The Eaton Cutler-Hammer KDB3200 is a high-performance K-frame molded case circuit breaker designed to provide reliable circuit protection in commercial and industrial power distribution systems. It features a thermal-magnetic non-interchangeable trip unit, delivering consistent protection against overloads and short circuits with a fixed trip configuration. Rated at 200 amperes at 40°C, the KDB3200 provides strong interrupting capacity for both AC and limited DC applications. Its bolt-on mounting configuration ensures secure installation in panelboards and switchboards, while standard aluminum line and load terminals allow for efficient wiring and dependable electrical connections.

Product Specifications

• Brand: Eaton / Cutler-Hammer
• Model: KDB3200
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Frame Style: KDB (K-Frame)
• Rated Current: 200 Ampere
• Number of Poles: 3 Pole
• Trip Unit Type: Thermal Magnetic Non-Interchangeable Trip Unit
• Mounting Type: Bolt-On Connection
• Standard Lug Type: Aluminum Line and Load End Terminals Standard
• Warranty: One Year Manufacturer Warranty

Technical Specifications

• Frame Type: K-Frame
• Trip Adjustment Range: Adjustable from 5× to 10× the continuous ampere rating
• Operating Temperature Reference: 40°C
• Protection Type: Overload and Short Circuit Protection
• Breaker Construction: Molded insulated case for durability and electrical safety
• Application Type: Commercial and industrial electrical distribution systems

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Interrupting Rating: 65 kA @ 240 VAC
• Interrupting Rating: 35 kA @ 480 VAC
• Interrupting Rating: 25 kA @ 600 VAC
• DC Interrupting Rating: 10 kA @ 250 VDC
• Frequency: 50/60 Hz

Product Data

• Manufacturer: Eaton / Cutler-Hammer
• Product Series: KDB Series
• Model Number: KDB3200
• Current Rating: 200A
• Number of Poles: 3
• Connection Type: Bolt-On
• Terminal Type: Aluminum Line and Load End Terminals Included
• Application: Panelboards, switchboards, and industrial power distribution systems

Important Note

The product image represents a base model for identification purposes only, and the actual product configuration may vary depending on selected accessories or options. If accessories are purchased together with the breaker, they can be installed according to your specific configuration requirements at no additional cost. Please include the required configuration details in the order comment section during checkout to ensure proper assembly before shipment.
