Eaton Cutler-Hammer KG3350WA12S43Z04 350A 3-Pole Generator Molded Case Circuit Breaker – Bolt-On – 600VAC with A12 Auxiliary & S43 Shunt Trip

The Eaton Cutler-Hammer KG3350WA12S43Z04 is a K-frame molded case generator circuit breaker engineered for industrial and generator applications. It features a thermal-magnetic interchangeable trip unit with a 500–1000 Amp magnetic trip range for precise overload and short-circuit protection. This model comes equipped with dual configuration options:

• A12 Auxiliary Switch – 2-A (Open) / 2-B (Closed), Right Pole Mounted, Exiting Same Side
• S43 Shunt Trip – 12–24 VAC/VDC, Left Pole Mounted, Exiting Opposite Side
• Rated at 350 Ampere at 40°C, the breaker provides robust protection and flexible integration for generator panels and switchgear systems.

Key Features

• K-Frame Generator Circuit Breaker for high-reliability power protection
• Thermal-Magnetic Interchangeable Trip Unit
• Dual Options Installed:
• • A12 Auxiliary Switch (Right Pole, Same Side)
  • S43 Shunt Trip (Left Pole, Opposite Side)
• Bolt-On Connection for easy installation
• Line and Load Terminals Standard

Specifications

• Manufacturer: Eaton / Cutler-Hammer
• Model: KG3350WA12S43Z04
• Frame Type: K
• Rated Current: 350 Ampere
• Poles: 3
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Trip Unit Type: Thermal-Magnetic Interchangeable
• Magnetic Trip Range: 500–1000 Ampere
• Interrupting Capacity:
• • 18 kA @ 240 VAC
  • 14 kA @ 480 VAC
  • 10 kA @ 600 VAC
• Connection: Bolt-On
• Standard Lug Type: Line and Load End Terminals
• Warranty: One Year

Applications

• Industrial generator protection and control
• Remote tripping and monitoring via auxiliary and shunt trip options
• Switchgear and generator panel integration
• Medium-to-large generator backup systems

Notes

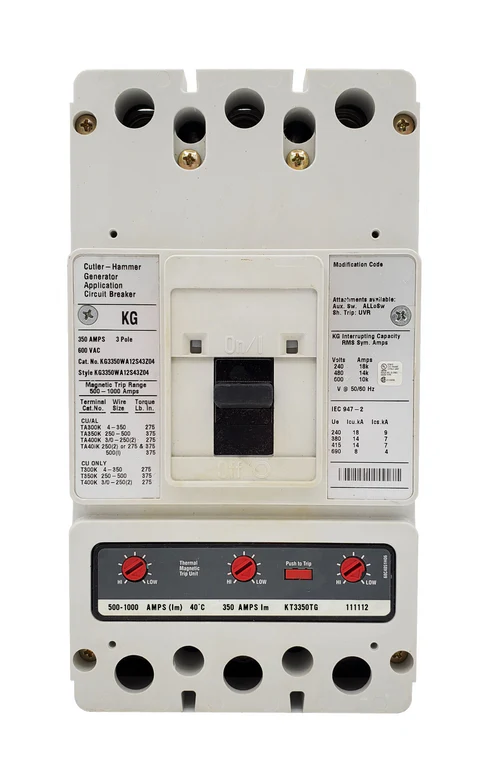

The product image represents a base model for identification. Eaton offers installation of your selected accessories at no additional cost—simply provide configuration instructions in the order comment box during checkout.
