Eaton Cutler Hammer KG3400S42 400A 3-Pole Generator Molded Case Circuit Breaker – Bolt-On – 600VAC – Thermal-Magnetic Interchangeable Trip (1000–2000A Range) with S42 Shunt Trip Option

The Eaton Cutler-Hammer KG3400S42 is a K-frame molded case generator circuit breaker designed for high-capacity generator and industrial systems. It features a thermal-magnetic interchangeable trip unit with a 1000–2000 Amp magnetic trip range, providing reliable protection against overloads and short circuits.

This model includes the S42 option, which provides a 12–24V DC shunt trip, left pole mounted, exiting rear, enabling remote tripping functionality for enhanced operational flexibility.

Rated at 400 Ampere at 40°C with 3 poles, it is ideal for generator panels, switchgear, and industrial backup power systems.

Key Features

• K-Frame Generator Circuit Breaker for high-capacity protection
• Thermal-Magnetic Interchangeable Trip Unit
• High magnetic trip range: 1000–2000 Amp
• S42 Shunt Trip Option: 12–24V DC, Left Pole Mounted, Exiting Rear
• Bolt-On Connection for secure installation
• Line and Load Terminals Standard

Specifications

• Manufacturer: Eaton / Cutler-Hammer
• Model: KG3400S42
• Frame Type: K
• Rated Current: 400 Ampere
• Poles: 3
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Trip Unit Type: Thermal-Magnetic Interchangeable
• Magnetic Trip Range: 1000–2000 Ampere
• Interrupting Capacity:
• • 18 kA @ 240 VAC
  • 14 kA @ 480 VAC
  • 10 kA @ 600 VAC
• Connection: Bolt-On
• Standard Lug Type: Line and Load End Terminals
• Configuration Option:
  • S42: 12–24V DC Shunt Trip, Left Pole Mounted, Exiting Rear
• Warranty: One Year

Applications

• Medium-to-large generator protection
• Industrial and commercial switchgear integration
• Backup power and emergency generator systems
• High-capacity power distribution panels

Notes

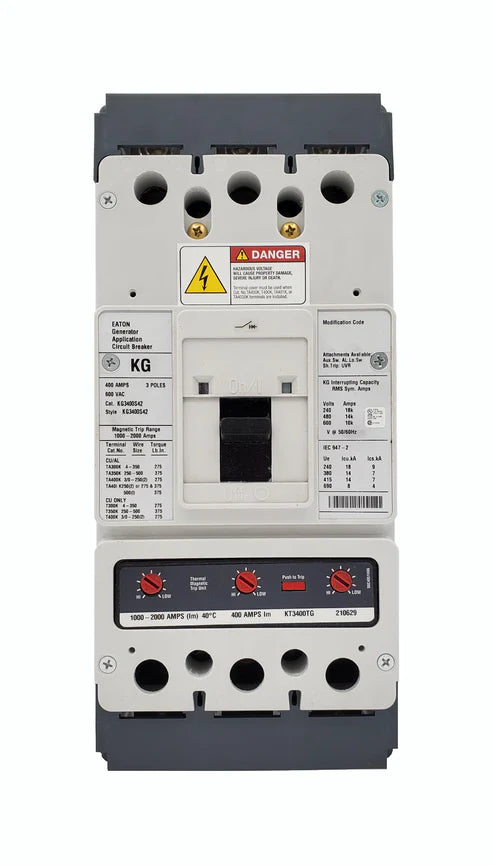

The product image shows a base model for identification. Eaton provides free accessory installation for your specific configuration—include details in the order comment box during checkout.
