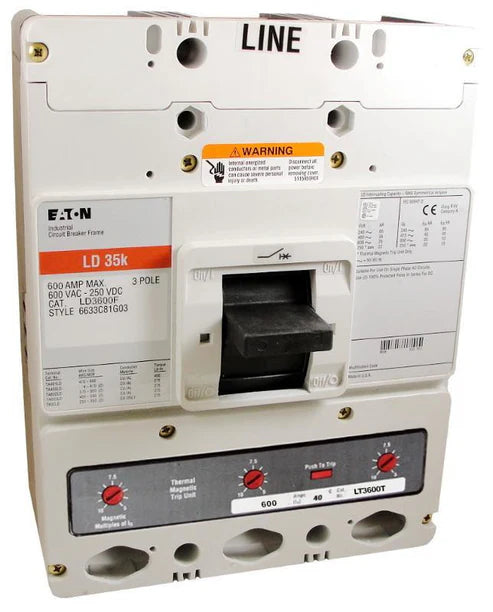

The Eaton Cutler-Hammer LD3600A02S21 molded case circuit breaker provides reliable AC and DC protection for industrial and commercial electrical systems. Built on the LD frame platform, this breaker features a thermal magnetic interchangeable trip unit to safeguard circuits against overloads and short-circuit faults. Rated at 600 amperes with a 3-pole configuration, it supports AC systems up to 600VAC and DC systems up to 250VDC. The model includes the A02 auxiliary switch option (1-A open / 1-B closed, left pole mounted, exiting rear) for advanced signaling, as well as the S21 shunt trip option (12–24 VAC/VDC, right pole mounted, exiting same side) for remote tripping control. With high interrupting capacity, this breaker is ideal for industrial, commercial, and renewable energy applications. The bolt-on design ensures secure panel installation, and aluminum line and load end terminals are standard.
Product Specification
- Brand: Eaton / Cutler-Hammer
- Model: LD3600A02S21
- Amperage: 600 Ampere
- Number of Poles: 3 Pole
- Breaker Type: AC/DC Molded Case Circuit Breaker (MCCB)
- Mount Type: Bolt-On
- Rated Voltage: Up to 600V AC / 250V DC
- Frame Type: L Frame
- Warranty: 1 Year
Technical Specification
- Trip Unit Type: Thermal Magnetic Interchangeable Trip Unit
- Trip Setting Range: Adjustable 5–10 times continuous ampere rating
- Connection Type: Bolt-On
- Terminal Type: Aluminum line and load end terminals standard
- Temperature Rating: 600A at 40°C
- Auxiliary & Control Options:
-
- A02: 1-A (Open) / 1-B (Closed) auxiliary switch, left pole mounted, exiting rear
- S21: 12–24 VAC/VDC shunt trip, right pole mounted, exiting same side
- Interrupting Design: High Interrupting Capacity
- Application: Industrial AC/DC power distribution and protection
Voltage and Ratings
- Maximum Operating Voltage: 600 VAC / 250 VDC
- Rated Current: 600 Ampere
- Interrupting Ratings:
-
- 65 kA @ 240 VAC
- 35 kA @ 480 VAC
- 25 kA @ 600 VAC
- 22 kA @ 250 VDC
- Frequency Rating: 50/60 Hz for AC applications
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Product Category: AC/DC Molded Case Circuit Breaker
- Frame Series: LD Frame
- Pole Configuration: 3 Pole
- Mounting Method: Bolt-On
- Terminals: Aluminum line and load end terminals standard
- Protection Type: Overload and Short Circuit Protection
- Application: Industrial, commercial, and renewable energy AC/DC systems
Important Note
The product image may represent a base model and is intended for identification purposes only. Accessories, including the A02 auxiliary switch and S21 shunt trip options, can be installed to meet your configuration requirements at no additional cost when details are provided during checkout. Installation must be performed by a qualified electrician, and compatibility with your AC/DC system and applicable electrical codes should always be verified prior to use.
