Eaton Cutler Hammer LDB3600FT33W 600A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600V

The Eaton LDB3600FT33W is a robust molded case circuit breaker designed for industrial and commercial electrical systems requiring reliable protection. Equipped with an LS non-interchangeable trip unit, this breaker is suitable for reverse feed applications and offers adjustable long and short delay trip settings via a rating plug. With a high interrupting capacity and versatile voltage ratings, it ensures system safety and uninterrupted operation. Accessories can be installed at no additional cost when ordered together with the breaker, allowing for a customized configuration.

Product Specification:

• LDB Frame Style Molded Case Circuit Breaker
• LS Function Non-Interchangeable Trip Unit
• Suitable for Reverse Feed Applications
• Maximum Current Rating: 600A at 40°C
• 3 Pole Configuration
• Rating Plug Not Included
• Adjustable Long Delay (L) and Short Delay (S) Settings

Technical Specification:

• Adjustable Trip Setting: 5–10× Continuous Ampere Rating
• L – Adjustable Long Delay Pickup via Rating Plug
• S – Adjustable Short Delay Pickup: Fixed Short Delay (I²t) or Adjustable Short Time (Flat Response)
• Bolt-On Connection
• Standard Lug Type: Without Terminals
• UL and IEC Compliant

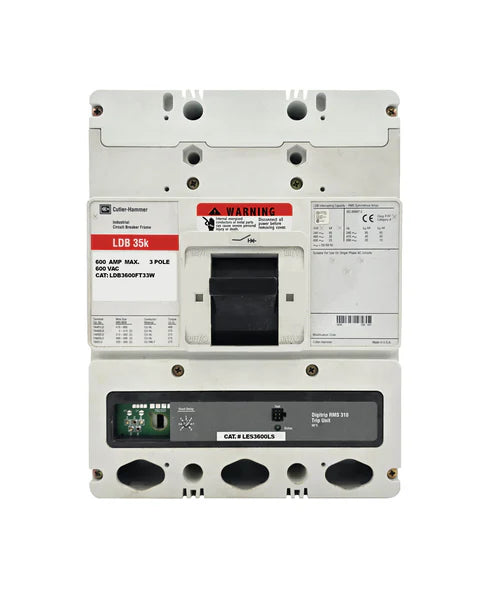

• Base Model Image for Identification Only

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Interrupting Capacity:
• • 65kA @ 240VAC
  • 35kA @ 480VAC
  • 25kA @ 600VAC
  • 22kA @ 250VDC

Product Data:

• Manufacturer: Eaton / Cutler-Hammer
• Warranty: One Year
• Frame Type: L
• Poles: 3
• Max Voltage: 600V
• Max Amperage: 600A
• Accessories Installation Available at No Additional Cost

Important Note:
This unit requires a rating plug to function properly. Please verify stock and pricing of rating plugs if you need one installed prior to ordering. Ensure all installations are performed by qualified personnel following Eaton guidelines to guarantee safety and compliance.
