The Eaton Cutler-Hammer MDL3800FA13K14T14Z04 molded case circuit breaker is engineered for dependable protection in high-capacity industrial and commercial electrical distribution systems. Built on the robust MDL frame platform and equipped with a thermal magnetic interchangeable trip unit, this breaker delivers reliable protection against overload and short-circuit conditions. With an 800-ampere rating at 40°C and a 3-pole configuration, it is suitable for applications requiring up to 600VAC or 250VDC operation. The bolt-on mounting configuration ensures a secure and stable installation in compatible panelboards or switchgear, making it a reliable solution for demanding power distribution environments.
Product Specifications
- Brand: Eaton / Cutler-Hammer
- Model: MDL3800FA13K14T14Z04
- Breaker Type: Molded Case Circuit Breaker
- Frame Type: MDL (M Frame Style)
- Trip Unit Type: Thermal Magnetic Interchangeable Trip
- Amperage Rating: 800 Ampere
- Number of Poles: 3 Pole
- Mounting Type: Bolt-On
- Frequency: 50/60 Hz
- Standard Lug Type: Not Included / Configurable
Technical Specifications
- Thermal magnetic trip mechanism for accurate overload and short-circuit protection
- Interchangeable trip unit design for flexible system configuration
- Heavy-duty molded case construction for industrial environments
- High interrupting capacity for reliable fault protection
- Designed for both AC and limited DC circuit applications
- Provides dependable circuit interruption in critical power systems
Voltage and Ratings
- Maximum AC Voltage: 600 VAC
- Maximum DC Voltage: 250 VDC
- Interrupting Capacity:
-
- 65 kA @ 240 VAC
- 50 kA @ 480 VAC
- 25 kA @ 600 VAC
- 22 kA @ 250 VDC
- Trip Setting: 4–8 times the continuous ampere rating
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Product Series: MDL Frame Series
- Configuration: Molded Case Circuit Breaker
- Connection Type: Bolt-On
- Warranty: 1 Year
- Application: Industrial power distribution, panelboard protection, and heavy-duty electrical systems
Important Note

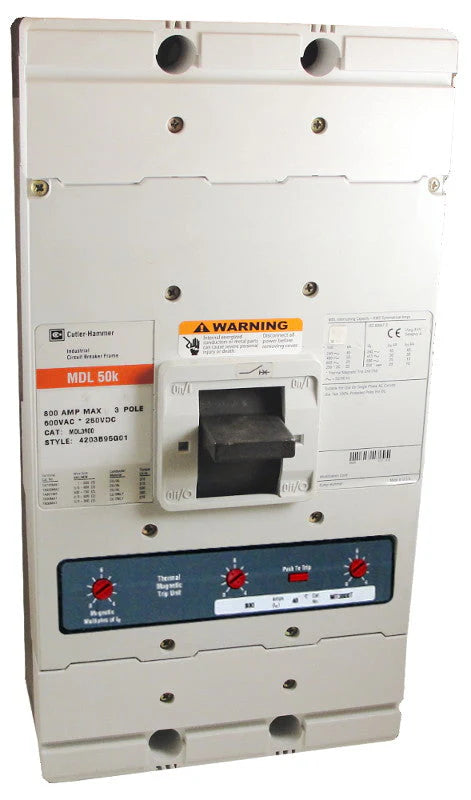

The product image shown represents a base model and is intended for identification purposes only. Accessories ordered together with the breaker can be installed to meet your required configuration at no additional cost. Please include all necessary configuration details in the order comment box during checkout to ensure proper assembly and delivery.
