Eaton Cutler Hammer MDLB3800T33W 800A 3 Poles Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton Cutler-Hammer MDLB3800T33W molded case circuit breaker is designed for reliable protection in industrial and commercial power distribution systems. Built with the MDLB frame style and equipped with an LS (Long-Time and Short-Time) non-interchangeable trip unit, this breaker offers advanced protection against overload and short-circuit conditions. Rated for a maximum of 800 amperes at 40°C with a 3-pole configuration, it supports electrical systems operating up to 600VAC at 50/60Hz and is suitable for reverse feed applications. Its bolt-on mounting design ensures secure installation in panelboards and switchgear, making it an effective solution for demanding electrical protection requirements.

Product Specifications

• Brand: Eaton / Cutler-Hammer
• Model: MDLB3800T33W
• Breaker Type: Molded Case Circuit Breaker
• Frame Type: MDLB (M Frame Style)
• Trip Unit Type: LS Non-Interchangeable Trip Unit
• Maximum Amperage Rating: 800 Ampere
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Reverse Feed Capability: Suitable for Reverse Feed Applications
• Standard Lug Type: Not Included / Configurable

Technical Specifications

• LS trip unit providing Long Delay and Short Delay protection functions
• Adjustable long delay pickup controlled through an adjustable rating plug
• Adjustable short delay pickup with I²t response or flat response time characteristics
• Designed for high-performance circuit protection in industrial environments
• Durable molded case construction for long operational life
• Engineered for reliable performance in heavy-duty electrical distribution systems

Voltage and Ratings

• Maximum AC Voltage: 600 VAC
• Interrupting Capacity:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC
• Trip Setting: Adjustable 5–10 times the continuous ampere rating
• Maximum Continuous Current: 800A at 40°C

Product Data

• Manufacturer: Eaton / Cutler-Hammer
• Product Series: MDLB Frame Series
• Configuration: Molded Case Circuit Breaker with LS Trip Unit
• Connection Type: Bolt-On
• Warranty: 1 Year
• Application: Industrial power distribution, switchgear systems, and electrical protection requiring adjustable long and short delay trip settings

Important Note

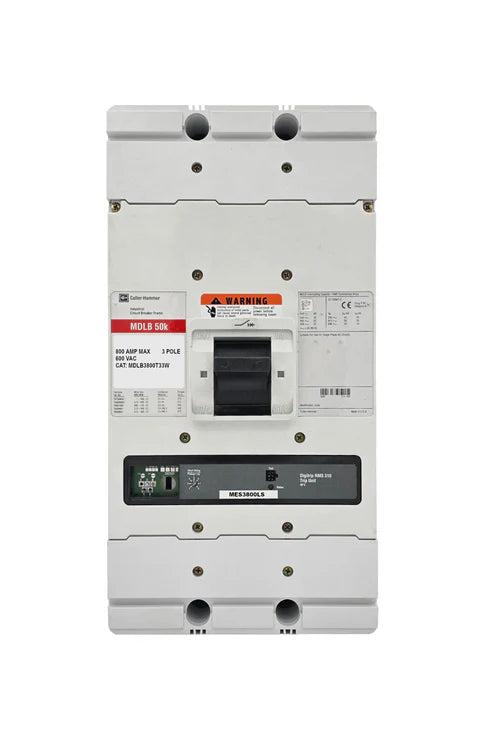

This breaker requires a rating plug in order to operate, and the rating plug is not included with the unit. Please contact us to confirm stock availability and pricing if you require a rating plug to be installed before ordering. The product image shown represents a base model for identification purposes only. Accessories ordered with the breaker can be installed at no additional cost—simply provide your configuration requirements in the order comments during checkout.
