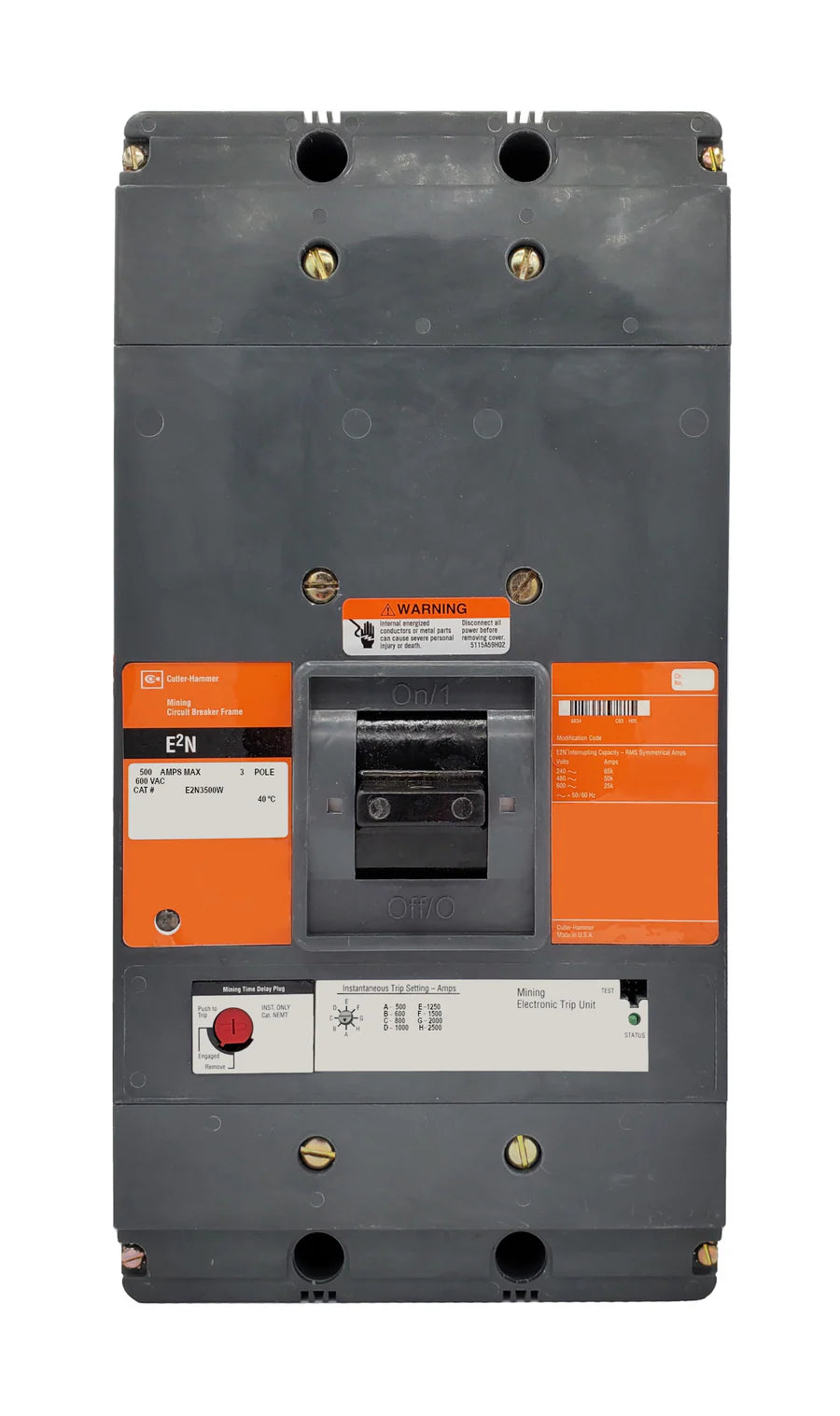

Eaton Cutler Hammer Mining E2N3500W 500A 3P Mining MCCB – Bolt On – 600VAC

The Eaton E2N3500W is a molded case mining circuit breaker (MCCB) built on the E2N frame, featuring a non-interchangeable thermal-magnetic trip unit. Designed for reliable protection in mining and industrial applications, this breaker provides high interrupting capacity and robust thermal-magnetic protection for circuits up to 500A.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: E2N3500W
• Rated Current: 500A
• Number of Poles: 3
• Breaker Type: Molded Case Mining Circuit Breaker (MCCB)
• Trip Unit: Thermal-Magnetic (Non-Interchangeable)
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Frame Type: N
• Warranty: 1 Year

Voltage and Ratings

• Rated Operational Voltage: 600VAC
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 50 kA @ 480VAC
  • 25 kA @ 600VAC

Technical Details

• Trip Setting: 500–2500
• Standard Lug Type: Not specified / standard
• Application: Mining and industrial power distribution
• Installation: Panel-mounted, bolt-on connection

Important Notes

• Product image represents the base model only.
• Accessories ordered with the breaker can be installed at no extra cost. Provide configuration details in the order comment box during checkout.
• Installation must comply with all applicable electrical safety standards.
