Eaton Cutler Hammer Mining E2N3600W 600A 3P MCCB – Bolt-On Mount – 600VAC

The Eaton E2N3600W Molded Case Mining Circuit Breaker is a high-capacity protection solution engineered for heavy-duty industrial and mining applications. Featuring a non-interchangeable thermal-magnetic trip unit, it provides dependable protection against overloads and short circuits. Built on a rugged N-frame platform, this breaker ensures durability and consistent performance in demanding environments. Its high interrupting capacity and robust construction make it ideal for critical power distribution systems requiring reliability and safety.

Product Specification

• Brand: Eaton / Cutler Hammer
• Model: E2N3600W
• Rated Current: 600 Amperes
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker (Mining Duty)
• Mount Type: Bolt-On
• Frame Type: N Frame
• Application: Mining & Heavy Industrial Power Distribution

Technical Specification

• Trip Unit Type: Thermal-Magnetic (Non-Interchangeable)
• Trip Setting Range: 500–2500 Amps
• Frequency: 50/60 Hz
• Connection Type: Bolt-On
• Warranty: 1 Year

Voltage and Ratings

• Rated Operational Voltage: 600VAC
• Rated Current (In): 600A @ 40°C
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 50 kA @ 480VAC
  • 25 kA @ 600VAC
• Rated Frequency: 50/60 Hz

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Category: Mining Molded Case Circuit Breaker
• Frame Series: E2N
• Configuration: Base Model (No Factory-Installed Accessories)
• Standard Lug Type: Factory Standard
• Mounting Style: Bolt-On
• Poles: 3

Important Note

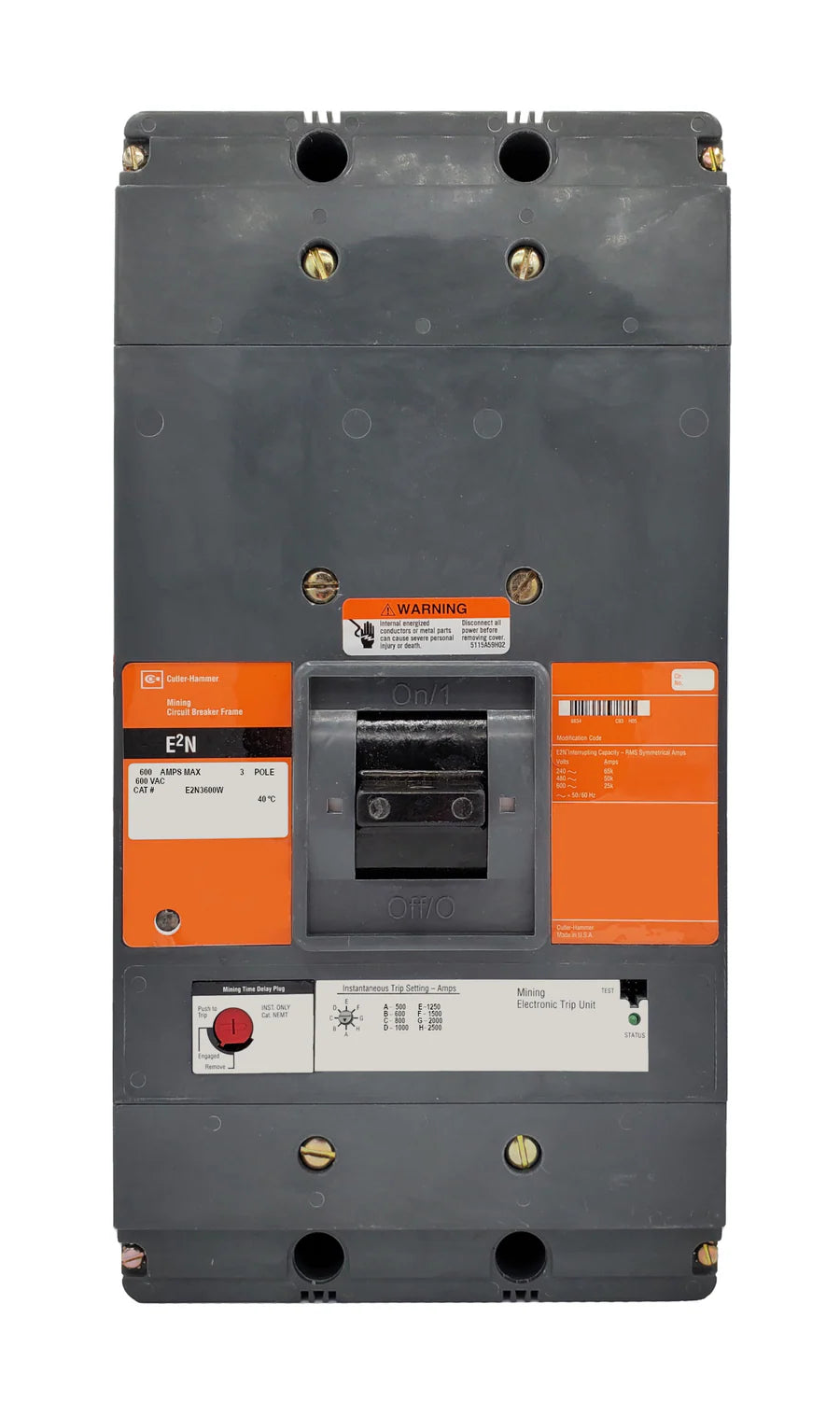

This product image represents a base model and is intended for identification purposes only. Accessories can be factory-installed at no additional cost when ordered together—ensure all configuration details are clearly provided أثناء order placement. Installation must be performed by a qualified electrician in accordance with applicable electrical codes and safety standards to ensure safe and reliable operation.
