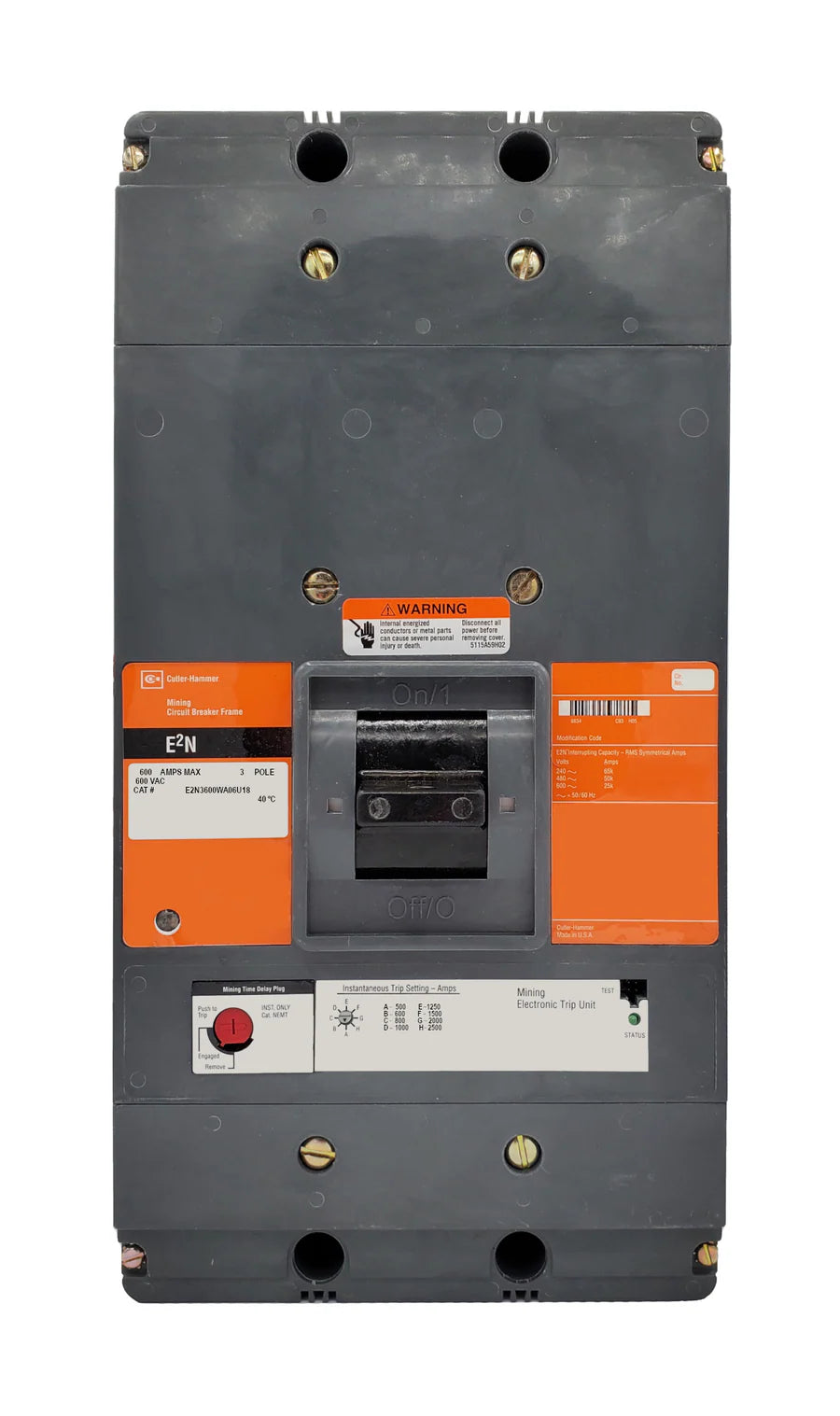

Eaton Cutler Hammer Mining E2N3600WA06U18 600A 3P MCCB – Bolt-On Mount – 600VAC

The Eaton E2N3600WA06U18 Molded Case Mining Circuit Breaker is a high-capacity protection device engineered for demanding industrial and mining environments. Featuring a non-interchangeable thermal-magnetic trip unit, it provides reliable protection against overloads and short circuits. Built on a rugged N-frame platform, this breaker ensures durability and consistent performance in harsh conditions. It comes equipped with factory-installed A06 auxiliary switch contacts and a U18 undervoltage release (UVR), enhancing operational control, system monitoring, and safety by enabling automatic disconnection during voltage drops.

Product Specification

• Brand: Eaton / Cutler Hammer
• Model: E2N3600WA06U18
• Rated Current: 600 Amperes
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker (Mining Duty)
• Mount Type: Bolt-On
• Frame Type: N Frame
• Application: Mining & Heavy Industrial Power Distribution

Technical Specification

• Trip Unit Type: Thermal-Magnetic (Non-Interchangeable)
• Trip Setting Range: 500–2500 Amps
• Frequency: 50/60 Hz
• Auxiliary Option (A06):
  • 1 Normally Open (NO) + 1 Normally Closed (NC) Auxiliary Switch
  • Right Pole Mounted, Rear Exit
• Undervoltage Release (U18):
  • 120 VAC UVR Installed
  • No LED Indicator
  • Left Pole Mounted, Rear Exit
• Connection Type: Bolt-On
• Warranty: 1 Year

Voltage and Ratings

• Rated Operational Voltage: 600VAC
• Rated Current (In): 600A @ 40°C
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 50 kA @ 480VAC
  • 25 kA @ 600VAC
• Rated Frequency: 50/60 Hz

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Category: Mining Molded Case Circuit Breaker
• Frame Series: E2N
• Configuration: A06 Auxiliary Switch + U18 Undervoltage Release Installed
• Standard Lug Type: Factory Standard
• Mounting Style: Bolt-On
• Poles: 3

Important Note

This product image represents a base model and is intended for identification purposes only. All included accessories are factory-installed to match the specified configuration at no additional cost when ordered together. Ensure all configuration requirements are clearly provided during order placement. Installation must be carried out by a qualified professional in accordance with applicable electrical codes and safety standards to ensure safe and reliable operation.
