Eaton Cutler Hammer Mining E2N3800MW 800A 3P MCCB – Bolt-On Mount – 600VAC

The Eaton E2N3800MW Molded Case Mining Circuit Breaker is designed for high-demand industrial and mining applications. Featuring a non-interchangeable magnetic-only trip unit, it provides robust short-circuit protection while allowing for simplified operation in applications where overload protection is not required. Built on the durable N-frame, this breaker ensures reliable performance under harsh conditions and high current loads. Its bolt-on connection provides secure installation and ease of maintenance.

Product Specification

• Brand: Eaton / Cutler Hammer
• Model: E2N3800MW
• Rated Current: 800 Amperes
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker (Mining Duty)
• Mount Type: Bolt-On
• Frame Type: N Frame
• Application: Mining & Heavy Industrial Power Distribution

Technical Specification

• Trip Unit Type: Magnetic-Only (Non-Interchangeable)
• Trip Setting Range: 500–2500 Amps
• Frequency: 50/60 Hz
• Connection Type: Bolt-On
• Warranty: 1 Year

Voltage and Ratings

• Rated Operational Voltage: 600VAC
• Rated Current (In): 800A @ 40°C
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 50 kA @ 480VAC
  • 25 kA @ 600VAC
• Rated Frequency: 50/60 Hz

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Product Category: Mining Molded Case Circuit Breaker
• Frame Series: E2N
• Configuration: Base Model
• Standard Lug Type: Factory Standard
• Mounting Style: Bolt-On
• Poles: 3

Important Note

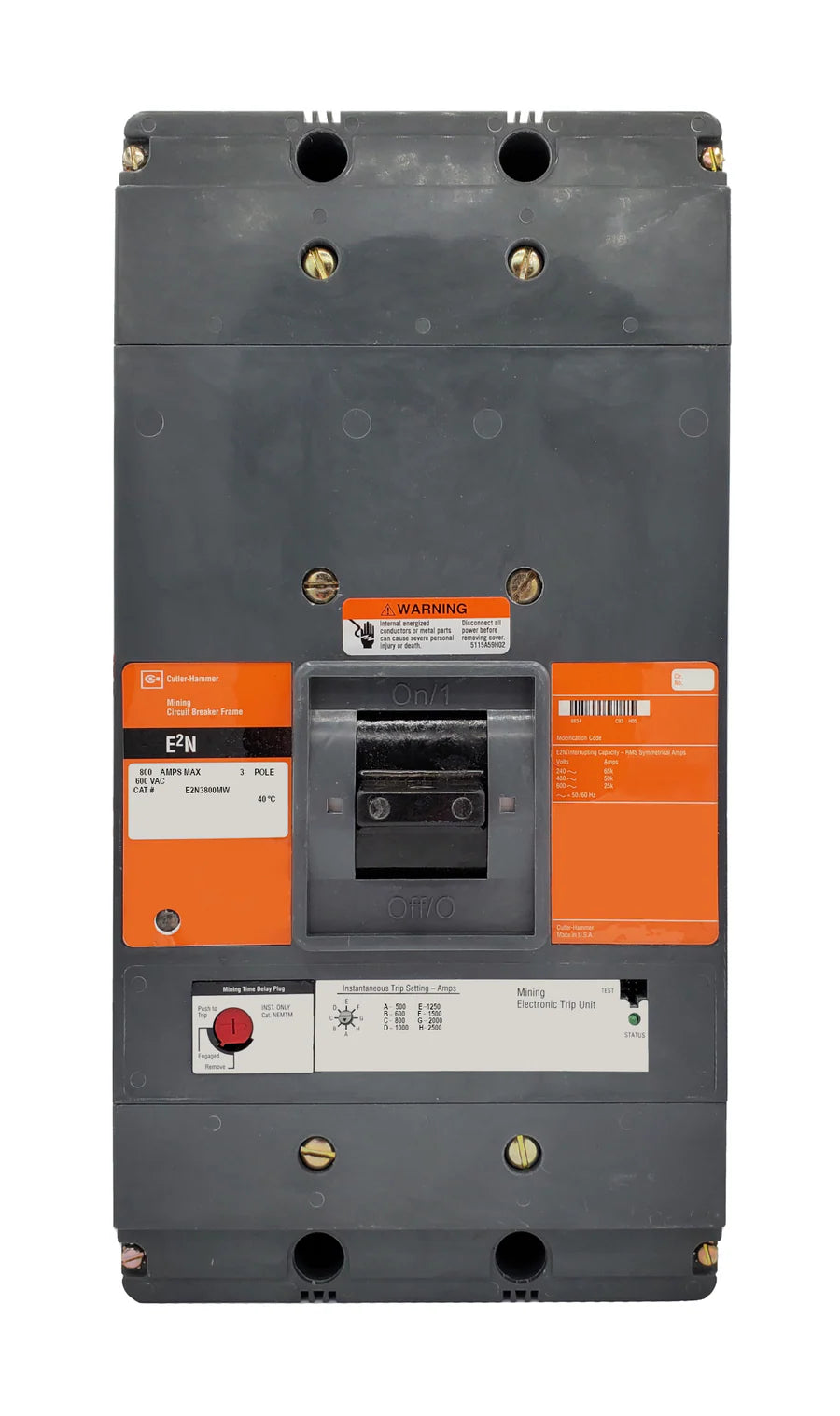

This product image represents a base model for identification purposes. Accessories can be installed at no additional cost if ordered together—ensure configuration details are specified during checkout. Installation must be performed by qualified personnel following applicable electrical codes and safety standards to ensure safe and reliable operation.
