Eaton Cutler Hammer Mining E2N3800W 800A 3P Molded Case Mining Circuit Breaker – Bolt-On – 600VAC

The Eaton E2N3800W is a high-performance molded case mining circuit breaker designed for demanding industrial applications. It features an E2N frame style and a non-interchangeable thermal-magnetic trip unit, providing reliable protection for 800 amperes at 40°C. With 3 poles and high interrupting capacity, this breaker ensures safe and efficient operation in heavy-duty mining and industrial environments.

Product Specification:

• E2N Frame Style molded case mining circuit breaker
• Non-interchangeable thermal-magnetic trip unit
• 800 Ampere rating at 40°C ambient temperature
• 3 Poles
• Bolt-On mount type

Technical Specification:

• Trip Setting: 500–2500
• Connection Type: Bolt-On
• Standard Lug Type: [Specify if available]

Voltage and Ratings:

• Maximum Voltage: 600 VAC @ 50/60 Hz
• Interrupting Ratings:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC

Product Data:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Mount Type: Bolt-On
• Poles: 3
• Amperage: 800 A

Important Note:

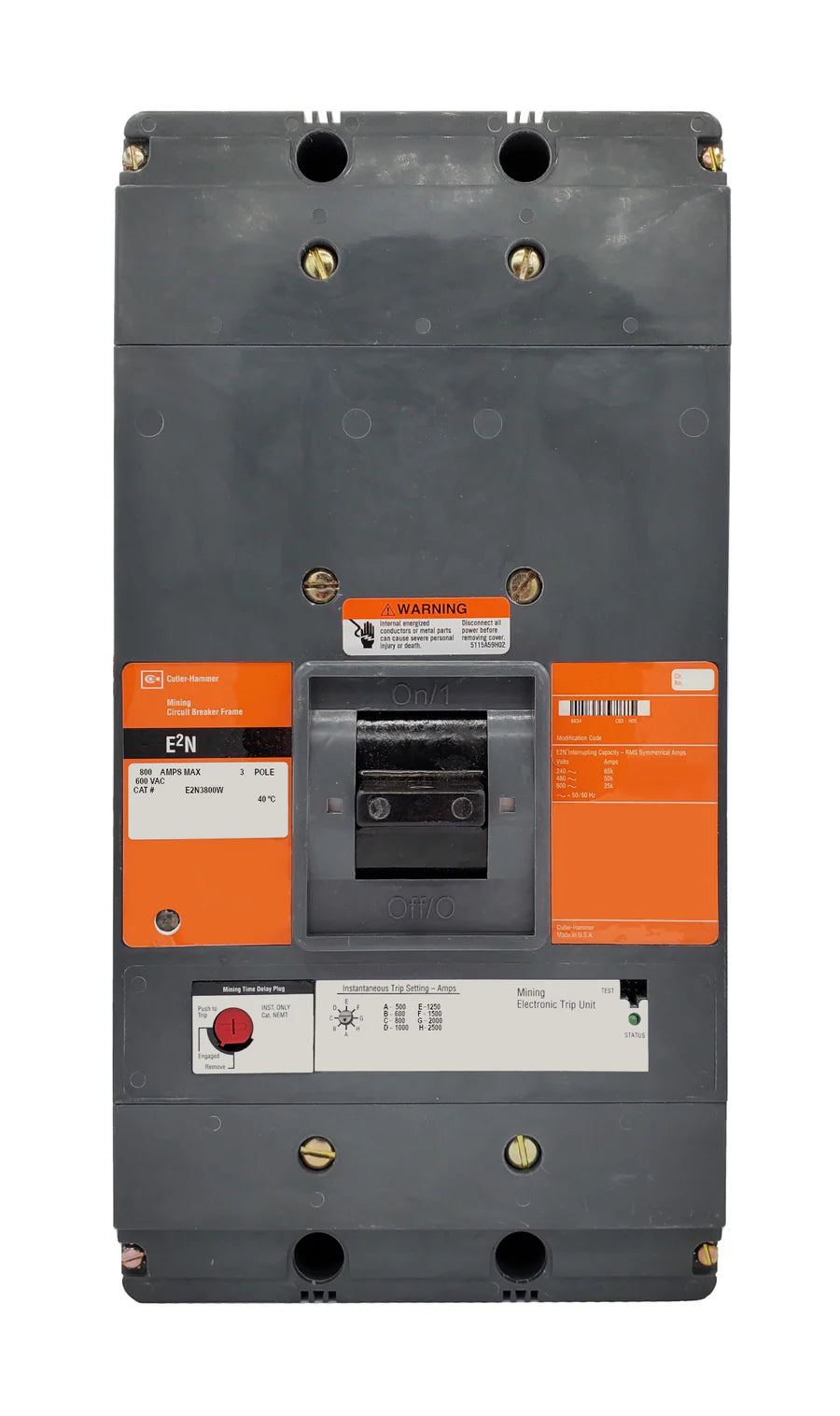

This product image represents a base model for identification purposes only. Accessories can be installed to meet your specific configuration requirements at no additional cost. Please provide the necessary accessory details in the order comment box during checkout to ensure proper installation.
