Eaton Cutler Hammer Mining E2N3800WU66 800A 3P Molded Case Mining Circuit Breaker – Bolt-On – 600VAC

The Eaton E2N3800WU66 is a high-performance molded case mining circuit breaker designed for industrial and mining applications. Featuring an E2N frame style with a non-interchangeable thermal-magnetic trip unit, it provides dependable protection for 800 amperes at 40°C. The factory-installed U66 undervoltage release (UVR) ensures reliable monitoring and control, with right pole mounting for seamless integration into electrical systems requiring remote voltage supervision.

Product Specification:

• E2N Frame Style molded case mining circuit breaker
• Non-interchangeable thermal-magnetic trip unit
• 800 Ampere rating at 40°C ambient temperature
• 3 Poles
• Bolt-On mount type
• Factory-installed U66 Option: 110–127 VAC UVR, right pole mounted, exiting rear

Technical Specification:

• Trip Setting: 500–2500
• Connection Type: Bolt-On
• Standard Lug Type: [Specify if available]
• Undervoltage Release (UVR): 110–127 VAC, right pole mounted

Voltage and Ratings:

• Maximum Voltage: 600 VAC @ 50/60 Hz
• Interrupting Ratings:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC

Product Data:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Configuration: Includes U66 factory-installed UVR
• Mount Type: Bolt-On
• Poles: 3
• Amperage: 800 A

Important Note:

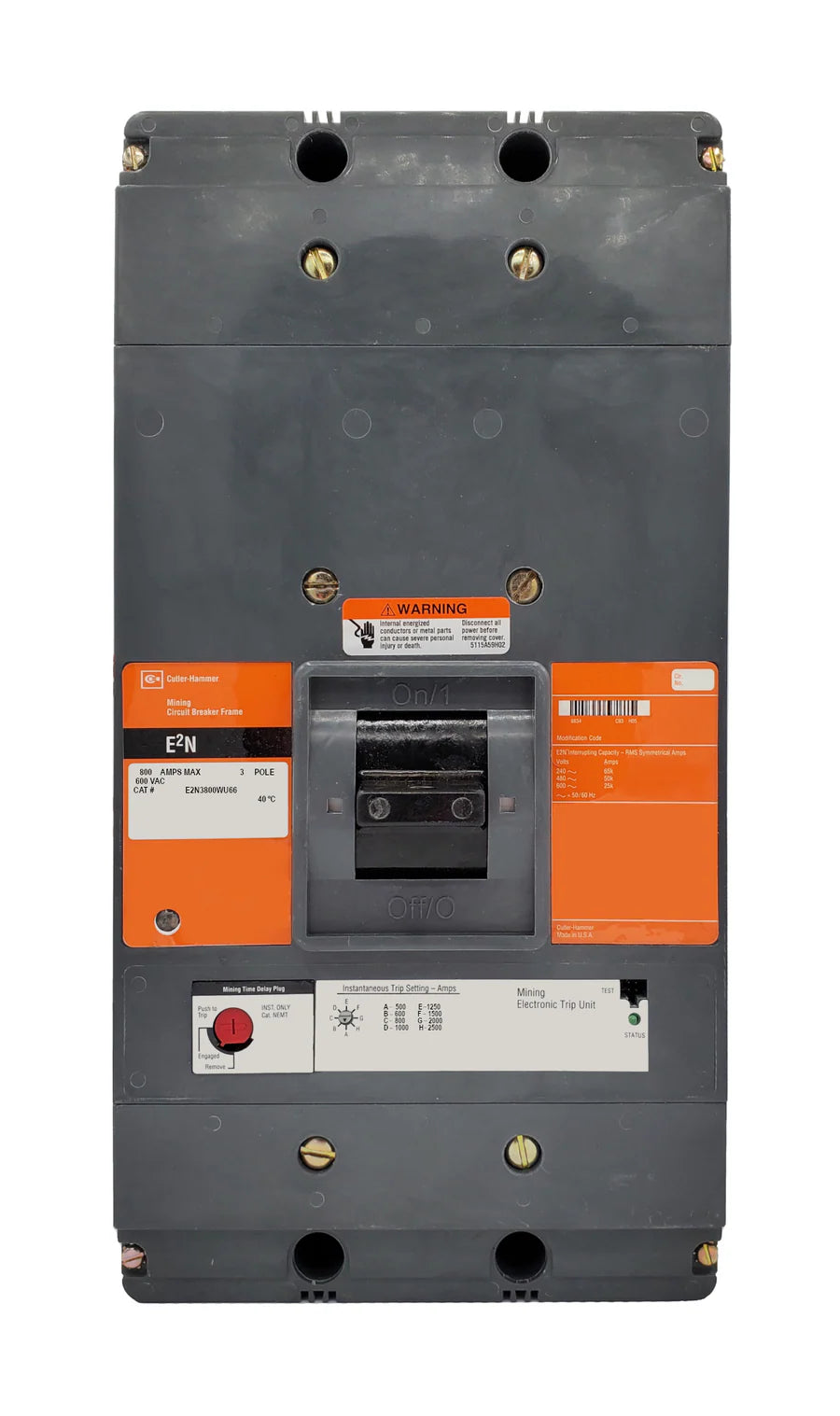

This product image represents a base model for identification purposes only. Accessories can be installed to meet your specific configuration requirements at no additional cost. Please provide the necessary accessory details in the order comment box during checkout to ensure proper installation.
