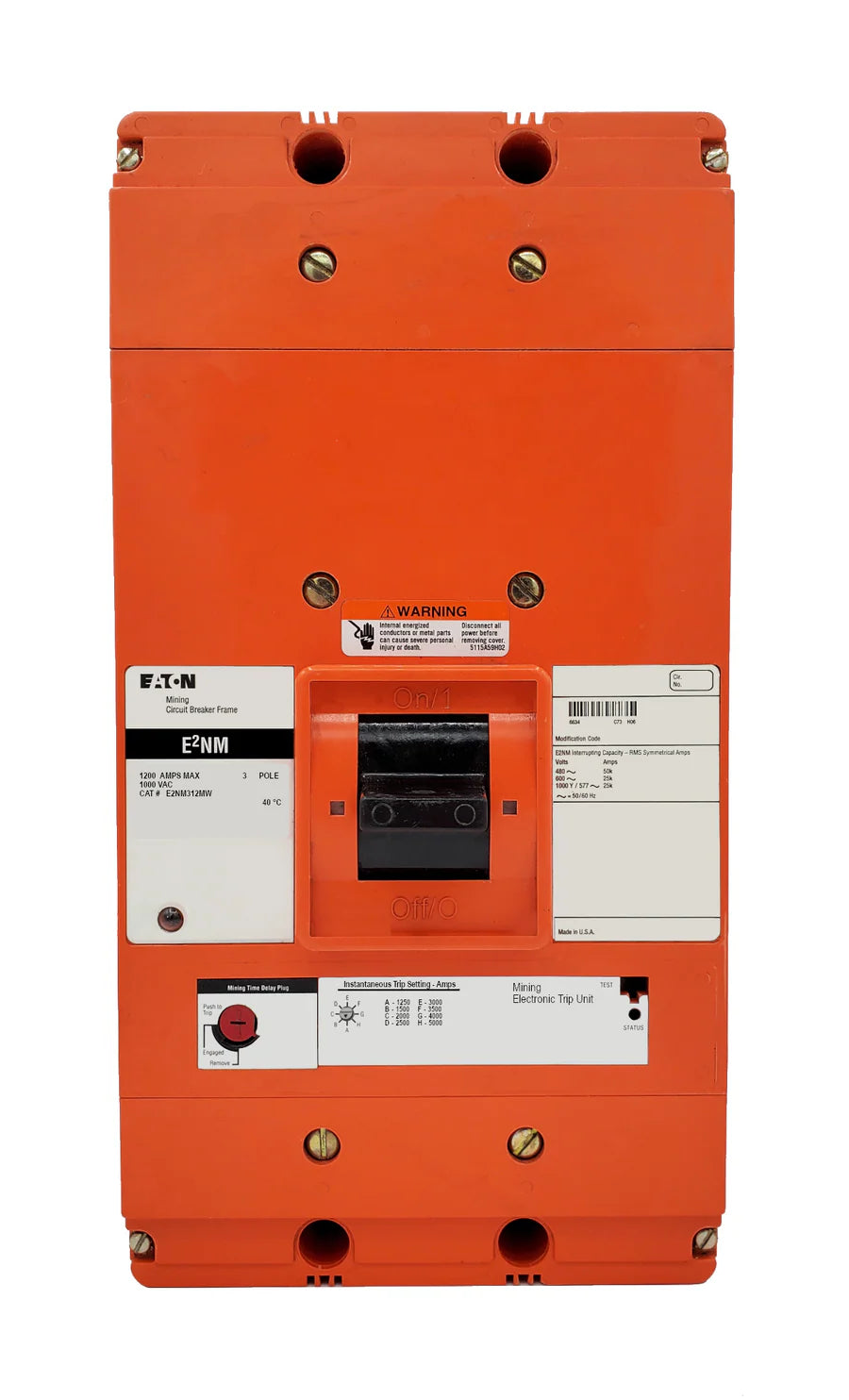

Eaton Cutler Hammer Mining E2NM312MW 1200A 3P Molded Case Mining Circuit Breaker – Bolt-On – 1000VAC

The Eaton E2NM312MW is a heavy-duty molded case mining circuit breaker designed for high-capacity industrial and mining applications. Featuring an E2NM frame style with a non-interchangeable magnetic-only trip unit, it delivers reliable protection at 1200 amperes at 40°C. Engineered for systems up to 1000 VAC, this breaker provides high interrupting capacity and dependable performance in demanding electrical environments.

Product Specification:

• E2NM Frame Style molded case mining circuit breaker
• Non-interchangeable magnetic-only trip unit
• 1200 Ampere rating at 40°C ambient temperature
• 3 Poles
• Bolt-On mount type

Technical Specification:

• Trip Setting: 1250–5000
• Connection Type: Bolt-On
• Standard Lug Type: [Specify if available]

Voltage and Ratings:

• Maximum Voltage: 1000 VAC @ 50/60 Hz
• Interrupting Ratings:
• • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC
  • 25 kA @ 1000 VAC

Product Data:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Configuration: Base model, no additional options included
• Mount Type: Bolt-On
• Poles: 3
• Amperage: 1200 A

Important Note:
This product image represents a base model for identification purposes only. Accessories can be installed to meet your specific configuration requirements at no additional cost. Please provide the necessary accessory details in the order comment box during checkout to ensure proper installation.
