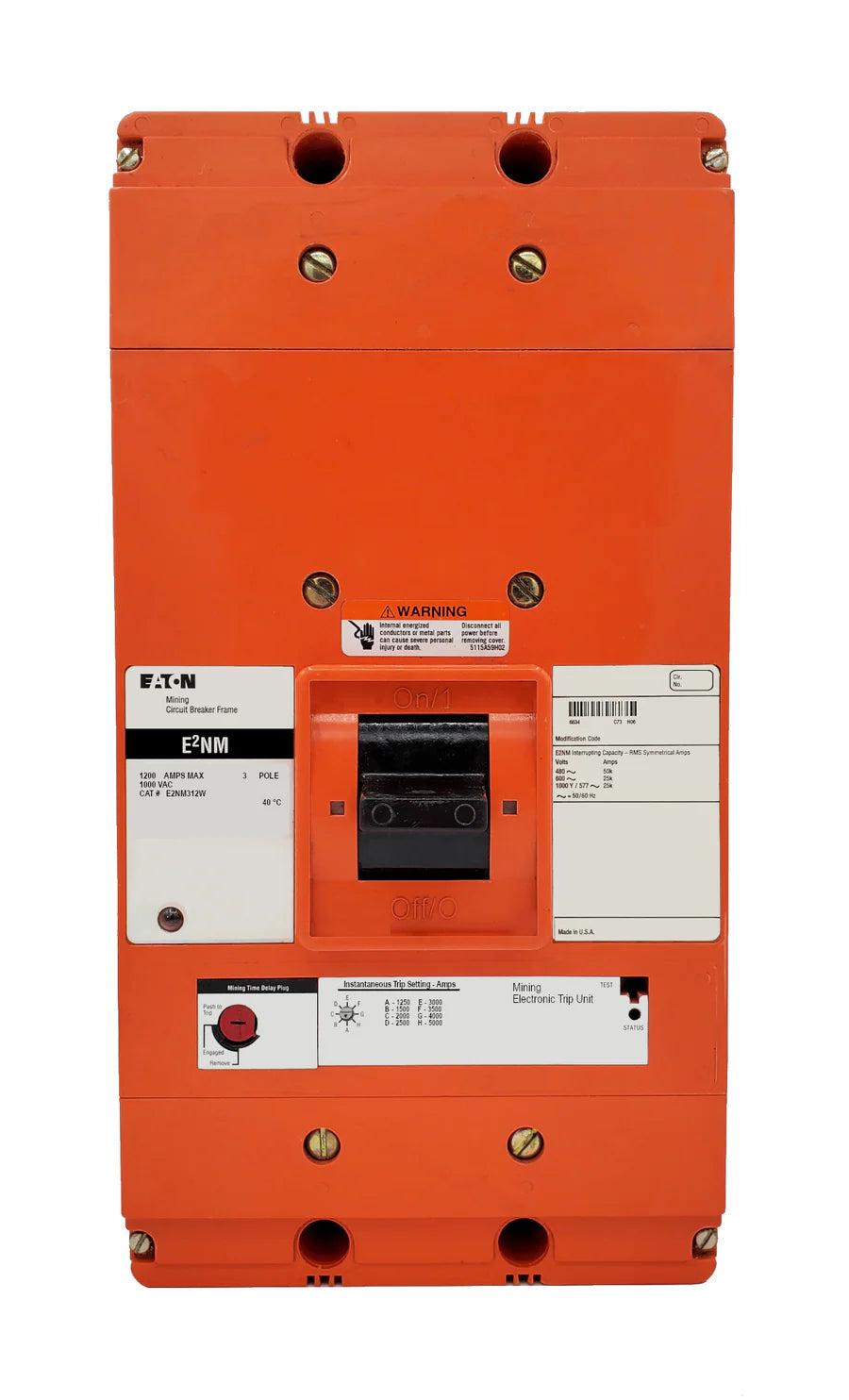

Eaton Cutler Hammer Mining E2NM312W 1200A 3P Molded Case Mining Circuit Breaker – Bolt-On – 1000VAC

The Eaton E2NM312W is a robust molded case mining circuit breaker designed for high-current industrial applications. It features an E2NM frame with a non-interchangeable thermal-magnetic trip unit and a 1200A rating at 40°C. Ideal for heavy-duty mining and industrial electrical systems requiring reliable protection.

Product Specification:

• E2NM Frame Style molded case mining circuit breaker
• Non-interchangeable thermal-magnetic trip unit
• 1200 Ampere rating at 40°C ambient temperature
• 3 Poles
• Bolt-On mount type

Voltage and Ratings:

• Maximum Voltage: 1000 VAC @ 50/60 Hz
• Interrupting Ratings:
• • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC
  • 25 kA @ 1000 VAC

Technical Data:

• Trip Setting: 1250–5000
• Connection Type: Bolt-On
• Standard Lug Type: [Not specified]
• Frame Type: N

Product Data:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Poles: 3
• Amperage: 1200 A

Important Note:
This product image represents a base model for identification purposes only. Accessories can be installed at no additional cost; provide accessory details in the order comment box during checkout to ensure proper installation.
