Eaton Cutler Hammer Mining E2NM3600W 600A 3P Molded Case Mining Circuit Breaker – Bolt-On – 1000VAC

The Eaton E2NM3600W is a heavy-duty molded case mining circuit breaker designed for high-demand industrial and mining applications. It features a non-interchangeable thermal-magnetic trip unit, ensuring reliable circuit protection at 600 amperes at 40°C. This 3-pole breaker is engineered for high-voltage systems up to 1000VAC, delivering consistent performance, durability, and safety in harsh operating environments.

Product Specification

• Frame Style: E2NM
• Breaker Type: Molded Case Mining Circuit Breaker
• Poles: 3
• Amperage: 600A at 40°C
• Mount Type: Bolt-On
• Connection Type: Bolt-On
• Standard Lug Type: Specified per configuration

Technical Specification

• Non-interchangeable thermal-magnetic trip unit
• Trip Setting: 500–2500
• Designed for mining and heavy-duty industrial applications
• High durability under extreme operating conditions
• Interrupting Ratings:
  • 50 kA @ 480VAC
  • 25 kA @ 600VAC
  • 25 kA @ 1000VAC

Voltage and Ratings

• Maximum Voltage: 1000VAC @ 50/60Hz
• Poles: 3
• Amperage: 600A at 40°C
• Interrupting Capacity: 50 kA @ 480VAC, 25 kA @ 600VAC, 25 kA @ 1000VAC

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt-On
• Frame Type: N

Important Note

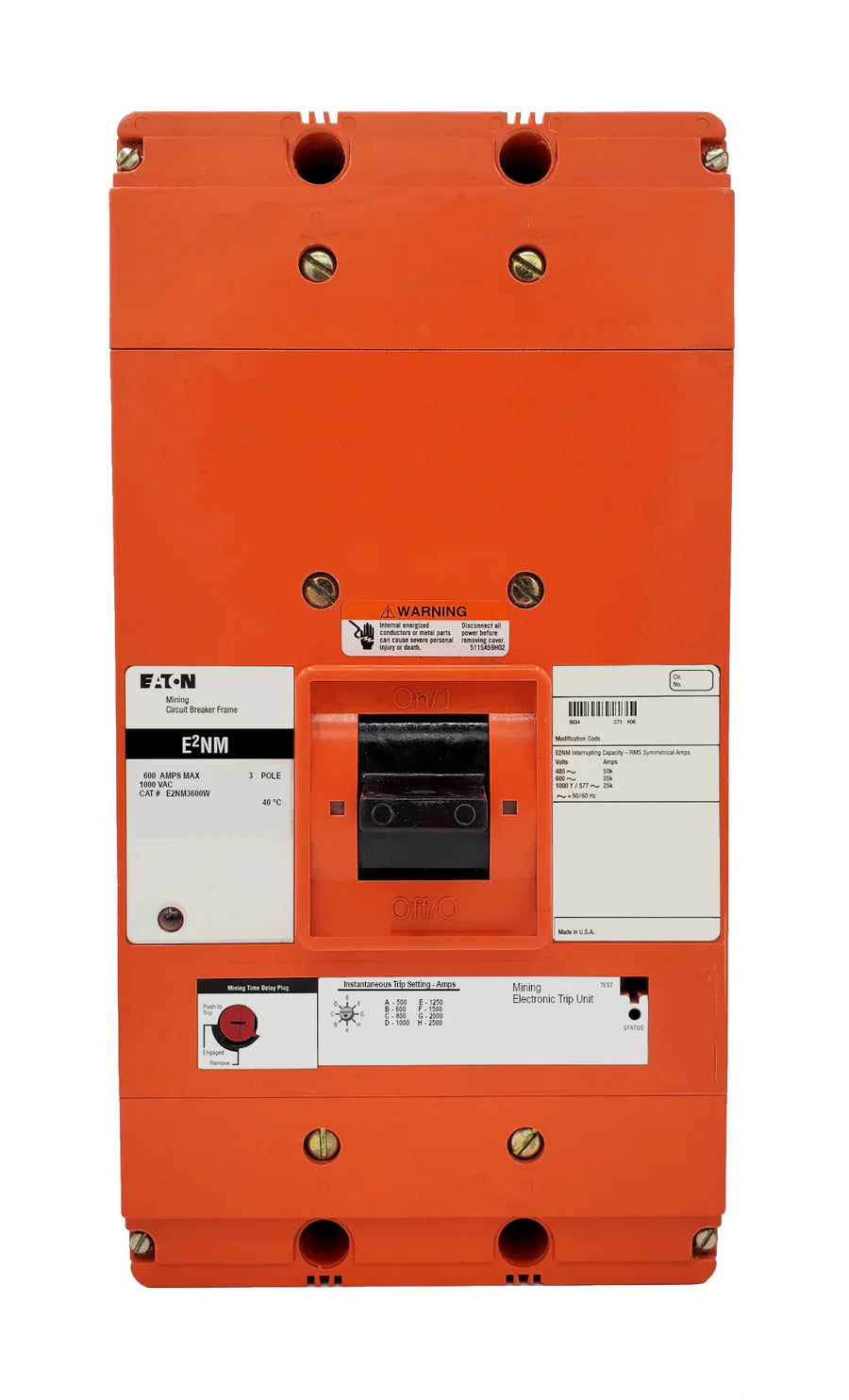

The product image represents a base model for identification purposes only. If ordering accessories along with the breaker, Eaton will install them to meet your specific configuration needs at no additional cost. Please provide all necessary information in the order comment box during checkout to ensure proper assembly and functionality.
