Eaton Cutler Hammer Mining E2NM3800MW 800A 3 Pole Molded Case Mining Circuit Breaker – Bolt-On Mount – 1000VAC

In stock
SKU: E2NM3800MW GTIN/UPC: 786679059906
$8,999.00

Select product condition:

Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

The Eaton E2NM3800MW is a durable molded case mining circuit breaker designed for high-capacity industrial applications. Built on the N-frame platform, it features a non-interchangeable magnetic-only trip unit, providing precise short-circuit protection. Rated for 800 amperes and supporting up to 1000VAC, this breaker is ideal for mining and heavy industrial environments where reliable high-current interruption is critical. Its robust construction ensures long-term operational stability and safety under demanding conditions.

Product Specifications

  • Frame Style: E2NM (N Frame)
  • Breaker Type: Molded Case Mining Circuit Breaker
  • Trip Unit Type: Non-Interchangeable Magnetic-Only
  • Amperage Rating: 800 Ampere
  • Number of Poles: 3 Pole
  • Mounting Type: Bolt-On
  • Frequency: 50/60 Hz
  • Application: Mining and heavy industrial power distribution

Technical Specifications

  • Trip Mechanism: Magnetic-Only
  • Trip Setting Range: 500–2500 Amps
  • Interrupting Capacity Class: High Interrupting Capacity
  • Construction Type: Molded Case
  • Operating Temperature: Rated at 40°C
  • Special Features: High short-circuit protection, robust N-frame construction

Voltage and Ratings

  • Rated Voltage (AC): Up to 1000VAC
  • Frequency: 50/60 Hz
  • Interrupting Rating @ 480VAC: 50 kA
  • Interrupting Rating @ 600VAC: 25 kA
  • Interrupting Rating @ 1000VAC: 25 kA

Product Data

  • Model Number: E2NM3800MW
  • Manufacturer: Eaton / Cutler Hammer
  • Series: E2NM
  • Frame Type: N Frame
  • Connection Type: Bolt-On
  • Warranty: 1 Year
  • Condition: New / Manufacturer Standard
  • Availability: Subject to stock

Important Note

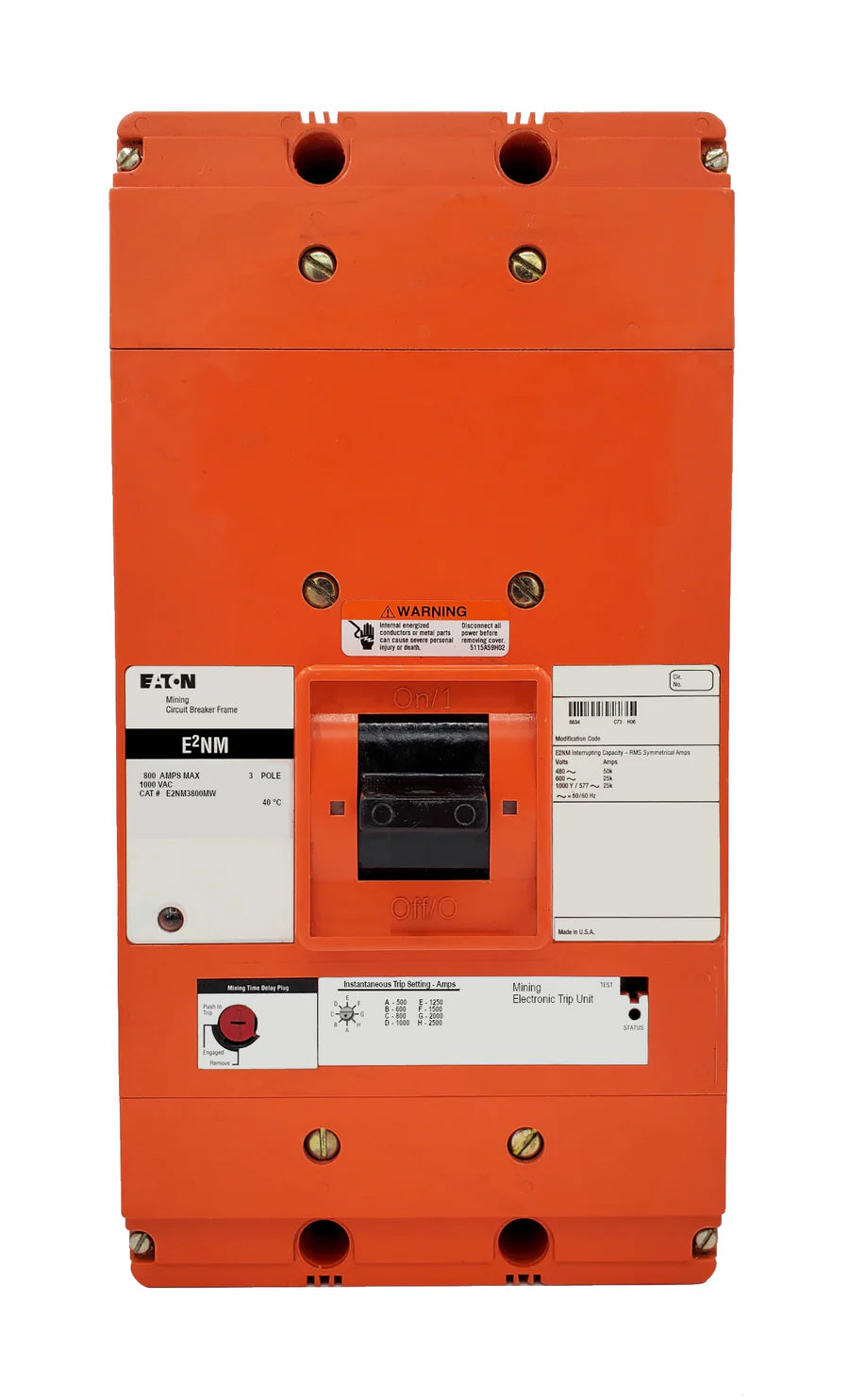

The product image represents a base model for identification purposes only. Accessories ordered with the breaker can be factory-installed at no additional cost—ensure all configuration details are included in the order comment box. Verify system compatibility and consult technical documentation or a qualified professional before installation.
