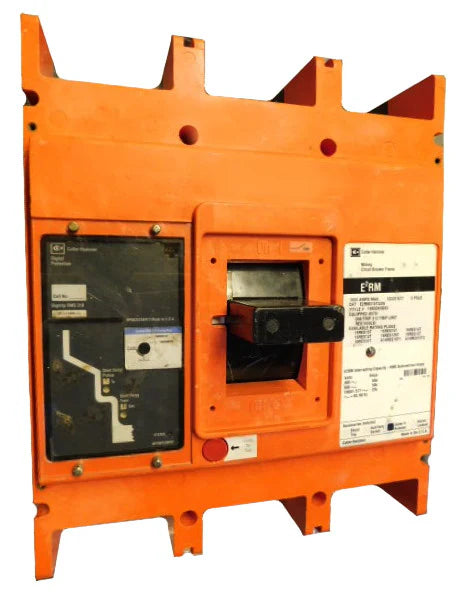

Eaton Cutler Hammer Mining E2RM316T33W 1600A 3P Mining MCCB – Bolt On – 1000VAC

The Eaton E2RM316T33W is a high-voltage molded case mining circuit breaker (MCCB) designed for heavy-duty industrial and mining applications. Constructed on the robust E2RM frame, this breaker features a non-interchangeable electronic trip unit with LS (Long-Time, Short-Time) protection functions, providing reliable protection against overloads and short circuits. With a maximum current rating of 1600 amperes and high interrupting capacity, it is suitable for critical power distribution systems operating up to 1000VAC, ensuring operational safety and system reliability.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: E2RM316T33W
• Rated Current: 1600A Max
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker (MCCB)
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Frame Type: R

Technical Specifications

• Trip Unit Type: Non-Interchangeable Electronic
• Trip Functions: LS (Long-Time, Short-Time)
• Trip Setting: 2–8 times the continuous ampere rating
• Connection Type: Bolt-On
• Designed for heavy-duty mining and industrial environments

Voltage and Ratings

• Rated Operational Voltage: 1000VAC
• Maximum Current Rating: 1600 Amperes
• Interrupting Capacity:
  • 65 kA @ 480VAC
  • 50 kA @ 600VAC
  • 25 kA @ 1000VAC

Product Data

• Application: Mining and high-voltage industrial power distribution
• Standard Compliance: Industry-standard MCCB requirements
• Warranty: 1 Year
• Lug Type: Standard Lug
• Installation: Panel-mounted, bolt-on connection

Important Note

This circuit breaker requires a compatible rating plug to operate and will not function without one. Ensure the correct rating plug is selected according to your system requirements before ordering. Product images are for reference only and may not reflect the exact configuration. Accessories ordered with the breaker can be installed prior to shipment at no additional cost—please provide complete configuration details during checkout. Installation must be performed by qualified personnel in compliance with all applicable electrical codes and safety standards.
