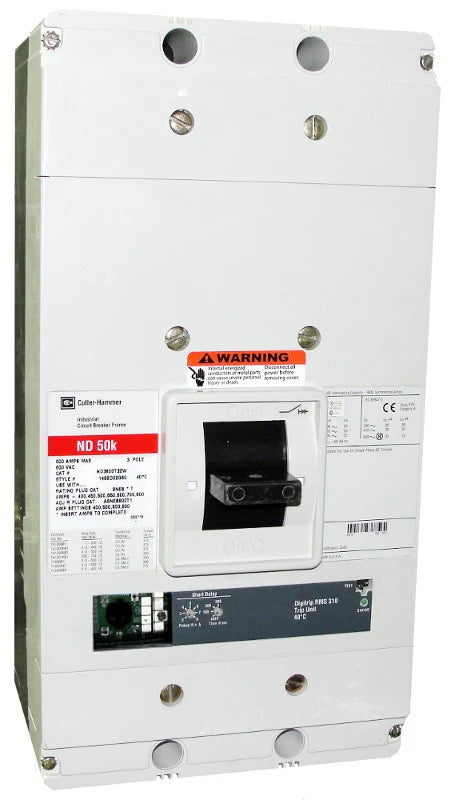

Eaton Cutler Hammer ND312T32W 1200A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The ND312T32W is a 1200 Ampere, 3-pole molded case circuit breaker designed for industrial and commercial power systems. It features the Digitrip RMS 310 electronic non-interchangeable trip unit with LSI (Long, Short, Instantaneous) protection functions. This breaker provides reliable protection against overloads, short circuits, and instantaneous faults.

Key Features

• Electronic Non-Interchangeable Trip Unit – Digitrip RMS 310
• LSI Trip Functions:
• L: Adjustable Long Delay via rating plug
• S: Adjustable Short Delay with fixed (l2t) or flat response
• I: Adjustable Instantaneous Pickup
• High interrupting ratings for enhanced safety
• Bolt-on mounting
• Base model image used for identification; accessories can be installed at no extra cost if ordered together

Technical Specifications

• Manufacturer: Eaton / Cutler Hammer
• Frame Style: ND
• Frame Type: N
• Rated Current: 1200 Amperes
• Poles: 3
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting Ratings:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC
• Standard Lug Type: Not included
• Connection: Bolt-On
• Warranty: One Year

Important Notes

• Rating Plug Required: This breaker requires a rating plug to function properly. Check availability before ordering.

• Product image represents the base model only. Accessories purchased with the breaker can be installed according to your configuration details provided at checkout.
