Eaton Cutler Hammer ND312T36W 1200A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The ND312T36W is a 1200 Ampere, 3-pole molded case circuit breaker with an LSIG (Long, Short, Instantaneous, Ground Fault) electronic non-interchangeable trip unit (Digitrip RMS 310). It provides robust protection against overloads, short circuits, instantaneous faults, and ground faults, making it ideal for industrial and commercial power systems.

Key Features

• Electronic Non-Interchangeable Trip Unit – Digitrip RMS 310
• LSIG Trip Functions:
• • L: Adjustable Long Delay Pickup via rating plug
  • S: Adjustable Short Delay with fixed (l2t) or flat response
  • I: Adjustable Instantaneous Pickup
  • G: Adjustable Ground Fault Pickup with adjustable delay (flat response)
• High interrupting ratings for safe fault clearing
• Bolt-on mounting for secure installation

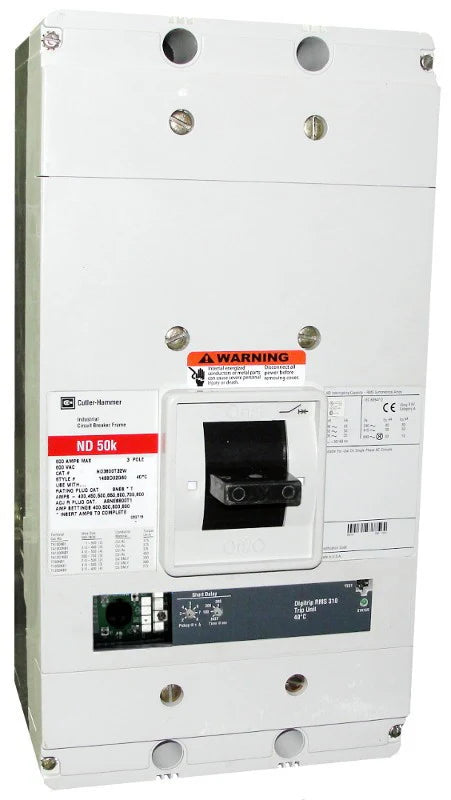

• Base model image used for identification; accessories ordered with the breaker can be installed at no extra cost

Technical Specifications

• Manufacturer: Eaton / Cutler Hammer
• Frame Style: ND
• Frame Type: N
• Rated Current: 1200 Amperes
• Poles: 3
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting Ratings:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC
• Standard Lug Type: Not included
• Connection: Bolt-On
• Warranty: One Year

Important Notes

• Rating Plug Required: The breaker will not operate without a rating plug. Confirm availability and pricing before ordering.

• Product image represents the base model only. Accessories ordered with the breaker can be installed to meet your specific configuration needs.
