Eaton Cutler Hammer ND3800T32W 800A 3-Pole Molded Case Circuit Breaker – LSI Trip Unit – Bolt-On – 600VAC

The ND3800T32W is an 800 Ampere, 3-pole molded case circuit breaker equipped with a Digitrip RMS 310 electronic non-interchangeable trip unit. Designed for industrial and commercial power systems, it provides reliable protection against overloads, short circuits, and instantaneous faults.

Key Features

• LSI Trip Unit Functions – Long delay, Short delay, and Instantaneous protection
• Adjustable Long Delay (L) – set via rating plug
• Adjustable Short Delay (S) – fixed time (l2t) or adjustable flat response
• Adjustable Instantaneous (I) – triggered by setting short delay to instantaneous
• 3-Pole Configuration – suitable for 3-phase systems
• Bolt-On Connection – ensures secure installation

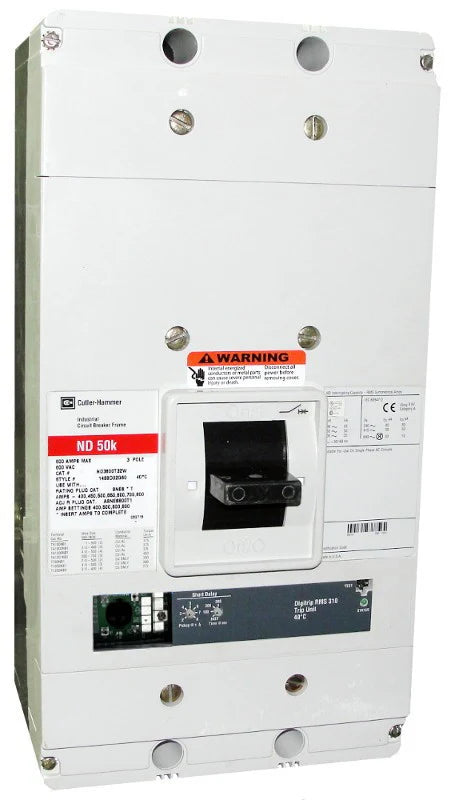

• Base model image used for identification; accessories ordered with the breaker can be installed at no additional cost

Technical Specifications

• Manufacturer: Eaton / Cutler Hammer
• Frame Style: ND
• Frame Type: N
• Rated Current: 800 Amperes
• Poles: 3
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting Capacity Rating:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC
• Connection: Bolt-On
• Standard Lug Type: Not included
• Warranty: One Year

Notes

• Rating Plug Required: This unit requires a rating plug to operate. Check stock and pricing if a plug is needed before ordering.

• Accessories can be installed per order specifications at no extra cost.
