The ND3800T33W is an 800 Ampere, 3-pole molded case circuit breaker featuring a Digitrip RMS 310 electronic non-interchangeable trip unit. Designed for industrial and commercial power protection, it safeguards systems against overloads and short circuits.
Key Features
- LS Trip Unit Functions – Long delay and Short delay protection
- Adjustable Long Delay (L) – configurable via rating plug
- Adjustable Short Delay (S) – fixed l2t response or adjustable flat response
- 3-Pole Configuration – compatible with 3-phase systems
- Bolt-On Connection – secure and reliable mounting

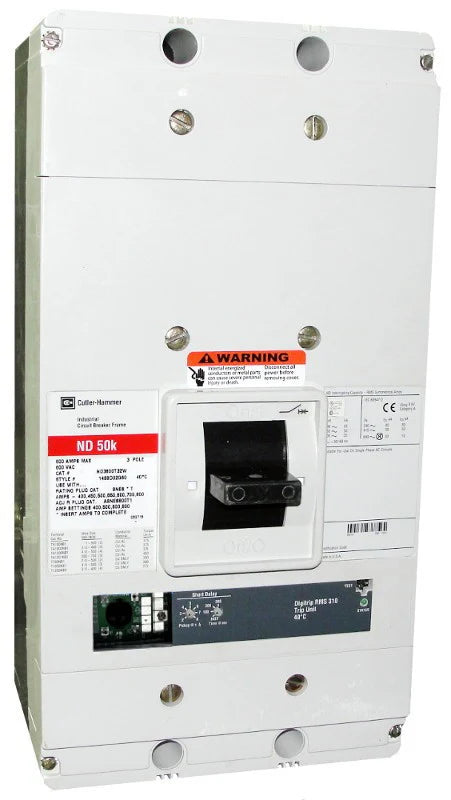

- Base model image shown for identification; ordered accessories can be installed at no additional cost
Technical Specifications
- Manufacturer: Eaton / Cutler Hammer
- Frame Style: ND
- Frame Type: N
- Rated Current: 800 Amperes
- Poles: 3
- Maximum Voltage: 600 VAC
- Frequency: 50/60 Hz
- Interrupting Capacity Rating:
-
- 65 kA @ 240 VAC
- 50 kA @ 480 VAC
- 25 kA @ 600 VAC
- Connection: Bolt-On
- Standard Lug Type: Not included
- Warranty: One Year
Notes
-
Rating Plug Required: This unit requires a rating plug to operate. Check stock and pricing if a plug is needed before ordering.
-
Accessories can be installed according to your configuration requirements at no extra cost.
