Eaton Cutler Hammer ND3800T35W 800A 3-Pole Molded Case Circuit Breaker – LSG Trip Unit – Bolt-On – 600VAC

The Eaton / Cutler Hammer ND3800T35W is an 800 Amp, 3-pole molded case circuit breaker designed for reliable protection in industrial and commercial electrical distribution systems. It features a Digitrip RMS 310 electronic non-interchangeable trip unit with LSG (Long Delay, Short Delay, Ground Fault) protection functions, allowing precise adjustment for overload, short-circuit, and ground-fault protection. Built on the durable ND frame, this breaker offers high interrupting capacity and dependable performance for demanding power distribution applications.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: ND3800T35W
• Product Type: Molded Case Circuit Breaker
• Frame Style: ND
• Frame Type: N
• Amperage: 800 Amps
• Number of Poles: 3
• Mounting Type: Bolt-On
• Trip Unit Type: Digitrip RMS 310 (Electronic Non-Interchangeable)
• Trip Functions: LSG (Long Delay, Short Delay, Ground Fault)
• Operating Temperature Rating: 40°C
• Frequency: 50/60 Hz
• Standard Lug Type: Not Included
• Warranty: One Year

Technical Specifications

• L – Long Delay Pickup: Adjustable via rating plug for overload protection
• S – Short Delay Pickup: Adjustable with fixed short delay time (I²t response) or adjustable short delay time (flat response)
• G – Ground Fault Pickup: Adjustable ground fault pickup with adjustable delay (flat response)
• Designed for industrial power distribution and protection
• Compatible with accessories for customized configuration

Voltage and Ratings

• Maximum Operating Voltage: 600 VAC
• Interrupting Capacity:
• • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 25 kA @ 600 VAC
• Current Rating: 800 Amperes
• Frequency Rating: 50/60 Hz

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Model Number: ND3800T35W
• Frame Series: ND
• Connection Type: Bolt-On
• Pole Configuration: 3 Pole
• Rated Current: 800A
• Maximum Voltage: 600 VAC

Important Note

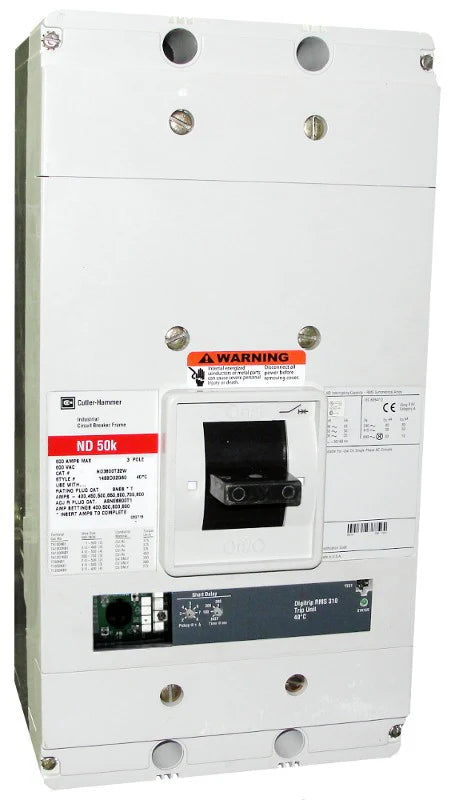

This breaker requires a rating plug to operate, which is not included with the unit. Please confirm availability and pricing of the appropriate rating plug before ordering if installation is required. The product image represents a base model for identification purposes only. If accessories are purchased with the breaker, they can be installed according to your required configuration at no additional cost.
