Eaton Cutler Hammer NG3800W 800A 3P Molded Case Generator Circuit Breaker – Bolt-On – 600VAC

The Eaton NG3800W is a reliable molded case generator circuit breaker designed for robust protection of generators and industrial power systems. Featuring an NG frame style with an electronic interchangeable trip unit, it provides an adjustable trip range of 500–2500A for accurate overload and short-circuit protection. This model comes without terminals, offering flexibility for custom installations and ensuring high performance in demanding electrical environments.

Product Specifications

• Manufacturer: Eaton / Cutler Hammer
• Frame Type: NG
• Breaker Type: Molded Case Generator Circuit Breaker
• Trip Unit: Electronic Interchangeable
• Trip Range: 500–2500A
• Amperage: 800A at 40°C
• Poles: 3
• Mounting Type: Bolt-On
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• Interchangeable electronic trip unit for flexible protection
• Adjustable thermal-magnetic trip settings
• Suitable for generator and industrial applications
• Supports accessory installation at no additional cost
• One-year manufacturer warranty

Voltage and Ratings

• Voltage: 600VAC
• Frequency: 50/60 Hz
• Interrupting Ratings: 18 kA @ 240VAC, 14 kA @ 480VAC, 10 kA @ 600VAC
• Rated Current: 800A at 40°C

Product Data

• Series: NG Frame
• Poles: 3
• Mounting: Bolt-On
• Typical Applications: Generator protection, industrial switchgear, power distribution systems

Important Note

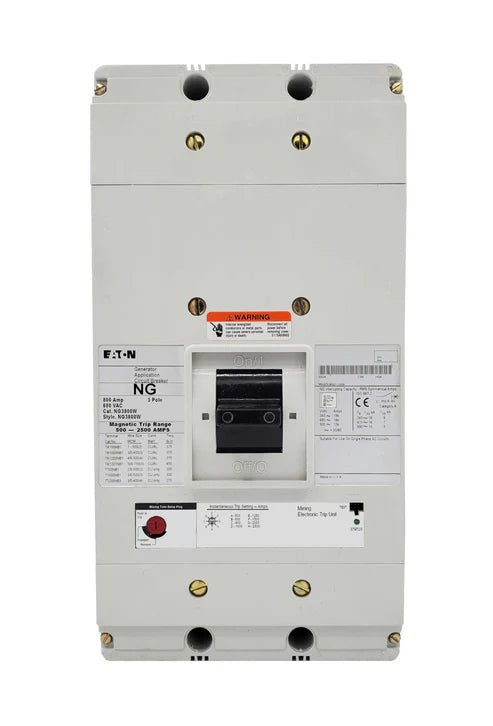

This product image represents a base model for identification purposes only. If purchasing accessories with the breaker, Eaton will install them according to your specific configuration requirements at no additional cost. Please provide all necessary instructions in the order comment box during checkout to ensure proper installation and compatibility.
