Eaton Cutler Hammer NGC312032E 1200A 3P Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton NGC312032E is a robust molded case circuit breaker designed for industrial and generator applications. It features an NG frame style with an electronic non-interchangeable LSI trip unit, delivering long-time, short-time, and instantaneous protection to safeguard your system from overloads and short circuits. Rated at 1200A at 40°C with high interrupting capacities, this breaker ensures reliable operation in demanding electrical environments. This model comes without terminals, providing flexibility for custom installation.

Product Specifications

• Manufacturer: Eaton / Cutler Hammer
• Frame Type: NG
• Breaker Type: Molded Case Circuit Breaker
• Trip Unit: Electronic Non-Interchangeable LSI
• Amperage: 1200A at 40°C
• Poles: 3
• Mounting Type: Bolt-On
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• L – Adjustable Long Delay Pickup (via Rating Plug)
• S – Adjustable Short Delay Pickup with Fixed or Adjustable Short Delay Time (l2t or Flat Response)
• I – Adjustable Instantaneous Pickup by setting Short Delay Time to Instantaneous
• Suitable for industrial and generator applications
• Supports accessory installation at no additional cost
• One-year manufacturer warranty

Voltage and Ratings

• Voltage: 600VAC
• Frequency: 50/60 Hz
• Interrupting Ratings: 200 kA @ 240VAC, 100 kA @ 480VAC, 65 kA @ 600VAC
• Rated Current: 1200A at 40°C

Product Data

• Series: NG Frame
• Poles: 3
• Mounting: Bolt-On
• Typical Applications: Generator protection, industrial switchgear, power distribution systems

Important Note

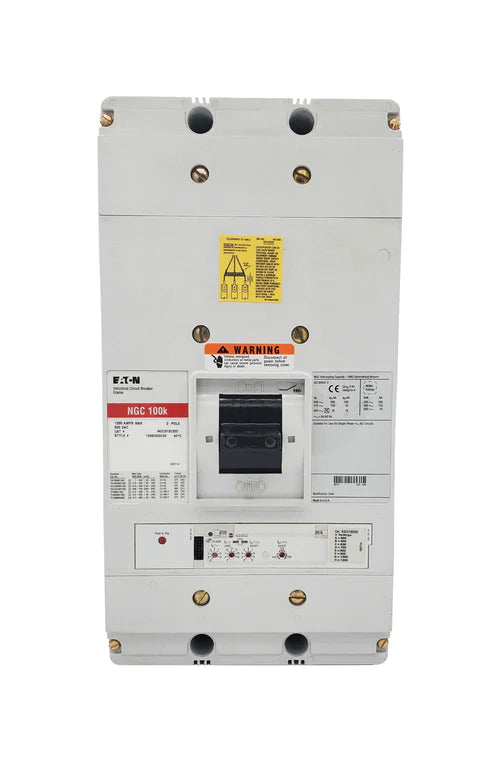

This product image represents a base model for identification purposes only. If purchasing accessories with the breaker, Eaton will install them according to your specific configuration requirements at no additional cost. Please provide all necessary instructions in the order comment box during checkout to ensure proper installation and compatibility.
