Eaton Cutler Hammer NGH308032E 800A 3P Electronic Molded Case Circuit Breaker – Line & Load – 480VAC

The Eaton NGH308032E is a Series G NG-frame electronic molded case circuit breaker designed for reliable protection in industrial and commercial power systems. Equipped with a Digitrip 310 RMS electronic LSI trip unit, this three-pole breaker delivers long-time, short-time, and instantaneous protection. Rated for 800A at 480VAC and 80% rated, it ensures robust performance with high interrupting capacities. The breaker comes as a complete line-and-load configuration and is suitable for reverse feed applications.

Product Specifications

• Manufacturer: Eaton
• Series: Series G
• Frame Type: NG
• Breaker Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS Electronic LSI
• Amperage: 800A
• Poles: 3
• Rated Capacity: 80%
• Terminals: Line and Load
• Configuration: Complete breaker
• Frame Style: NG

Technical Specifications

• Adjustable long-time, short-time, and instantaneous protection via Digitrip 310 RMS
• Suitable for industrial and commercial applications
• HACR rated, UL Listed, CSA Certified
• Supports accessory installation as required
• One-year warranty per Eaton Selling Policy 25-000

Voltage and Ratings

• Voltage: 480VAC
• Frequency: 50/60 Hz
• Interrupting Ratings: 100 kAIC @ 240VAC, 65 kAIC @ 480VAC
• Rated Current: 800A
• Poles: Three-pole

Product Data

• Dimensions: 9 in H × 9 in W × 6 in D
• Weight: 47 lb
• Mounting Type: Line & Load
• Typical Applications: Industrial switchgear, generator protection, power distribution systems
• Catalog Notes: NG-Frame breakers suitable for reverse feed use; breakers do not ship with lugs

Important Note

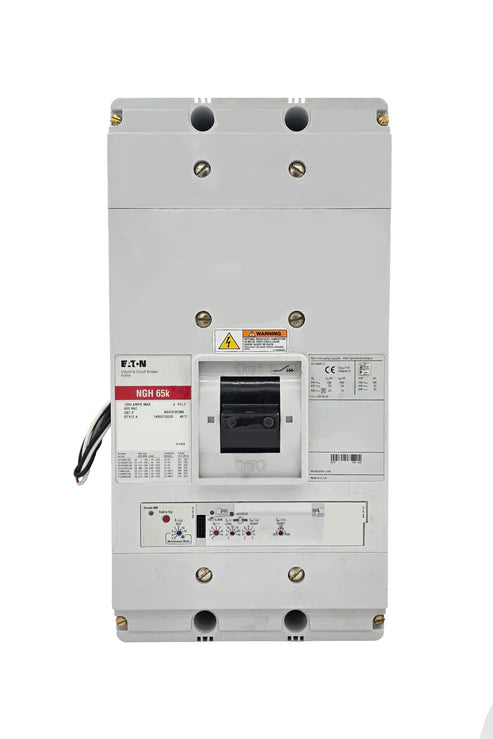

This product image represents a base model for identification purposes only. Eaton NGH308032E breakers are sold complete and can be customized with accessories upon request. Please provide specific configuration requirements in the order comment box during checkout to ensure proper installation and compatibility.
