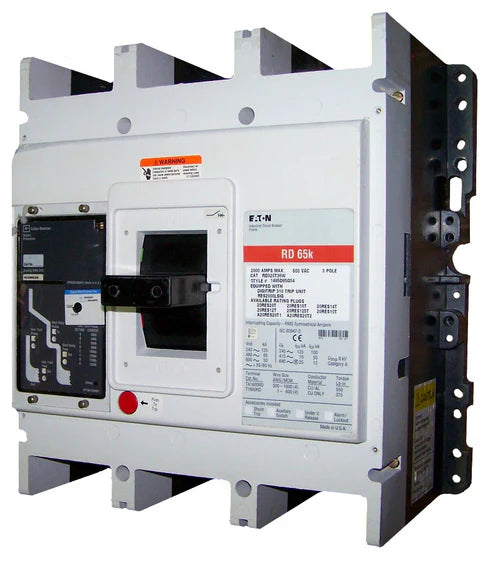

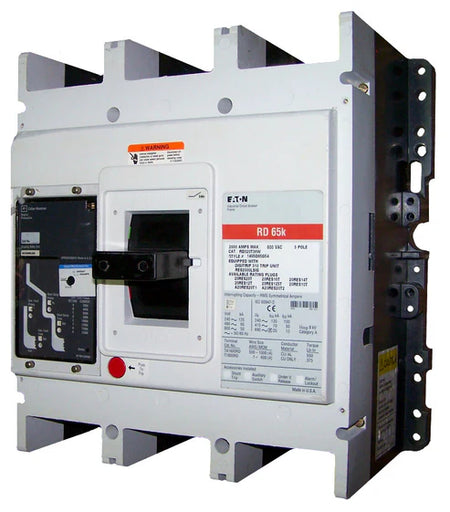

Eaton Cutler-Hammer RD316T36W 1600A 3 Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The Eaton Cutler-Hammer RD316T36W molded case circuit breaker delivers advanced protection for industrial and commercial electrical systems. Built on the RD R-Frame platform, it is equipped with the Digitrip RMS 310 electronic trip unit for reliable detection and interruption of overloads, short circuits, instantaneous faults, and ground faults.

Featuring LSIG protection functions, this breaker allows precise adjustment of long-delay, short-delay, instantaneous, and ground-fault trip settings. These configurable settings ensure coordinated protection across complex electrical networks, maintaining system safety and operational continuity.

Voltage and Ratings

• Rated Current: 1600 Amperes
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting Capacity:
• • 125 kA at 240 VAC
  • 65 kA at 480 VAC
  • 50 kA at 600 VAC
• Temperature Rating: 1600A at 40°C
• Application Rating: Rated for 100% continuous operation

Key Specifications

• Digitrip RMS 310 electronic trip unit for precise protection
• LSIG protection functions (Long Delay, Short Delay, Instantaneous, Ground Fault)
• Adjustable long-delay pickup via rating plug
• Short-delay protection with selectable I²t or flat response
• Instantaneous pickup adjustable through short-delay settings
• Configurable ground-fault pickup and delay time
• High interrupting capacity suitable for demanding applications

Technical Specifications

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Model Number: RD316T36W
• Frame Type: R Frame
• Trip Unit Type: Electronic Non-Interchangeable – Digitrip RMS 310
• Protection Functions: LSIG (Long Delay, Short Delay, Instantaneous, Ground Fault)
• Long Delay Pickup: Adjustable via rating plug
• Short Delay Response: I²t response or flat response selectable
• Instantaneous Pickup: Adjustable
• Ground Fault Protection: Adjustable pickup and delay
• Trip Setting Range: 2–8 × Continuous Ampere Rating
• Number of Poles: 3 Pole
• Connection Type: Bolt-On

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Series: RD
• Rated Current: 1600A
• Maximum Voltage: 600VAC
• Mounting Type: Bolt-On Installation
• Warranty: 1 Year

Important Notice:
This unit requires a compatible rating plug for proper operation. Optional accessories can be installed during ordering to configure the breaker to your specific system requirements.
