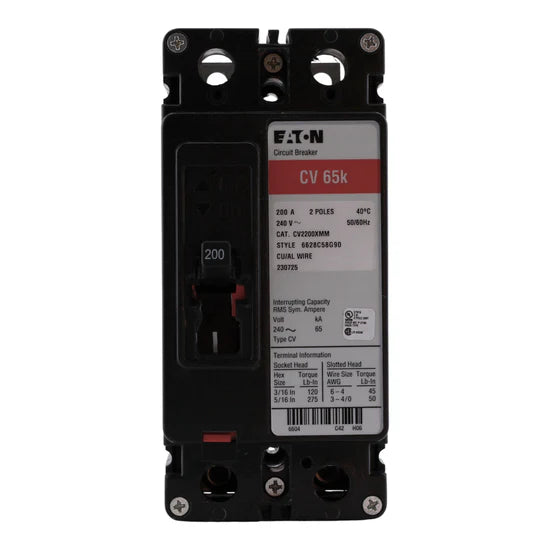

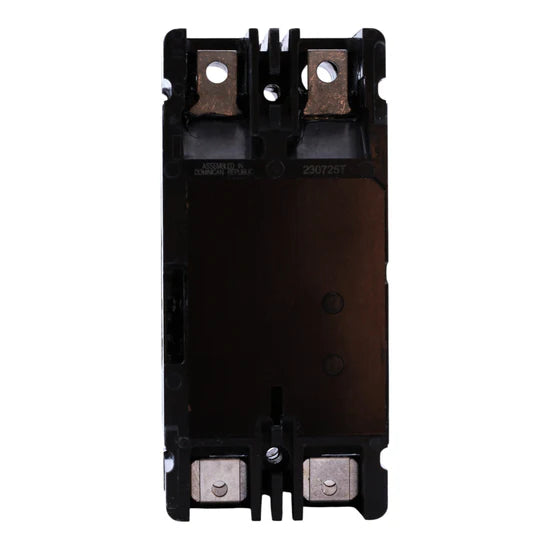

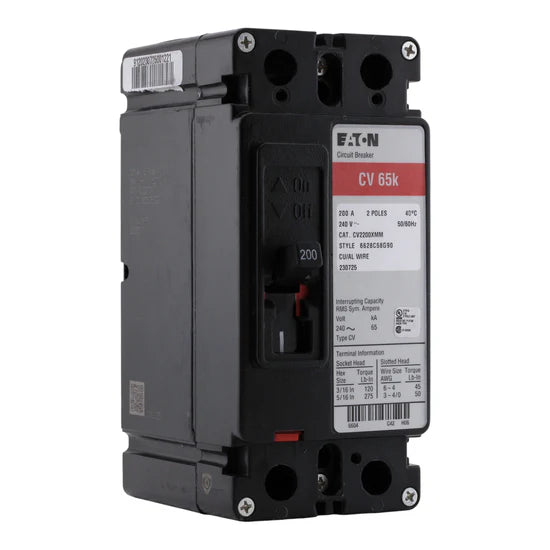

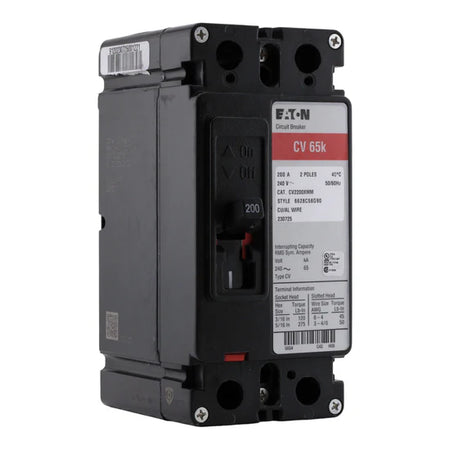

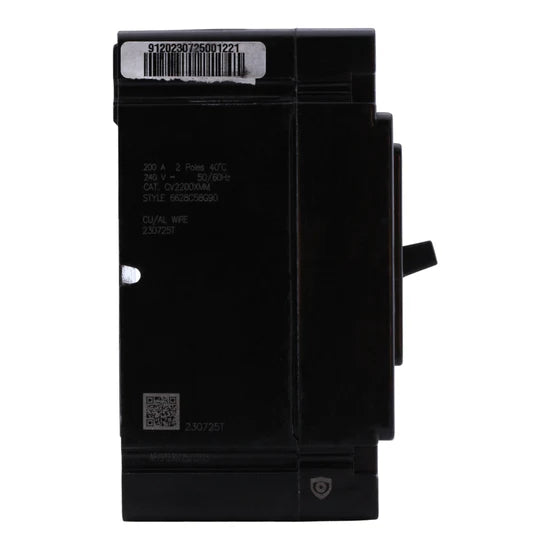

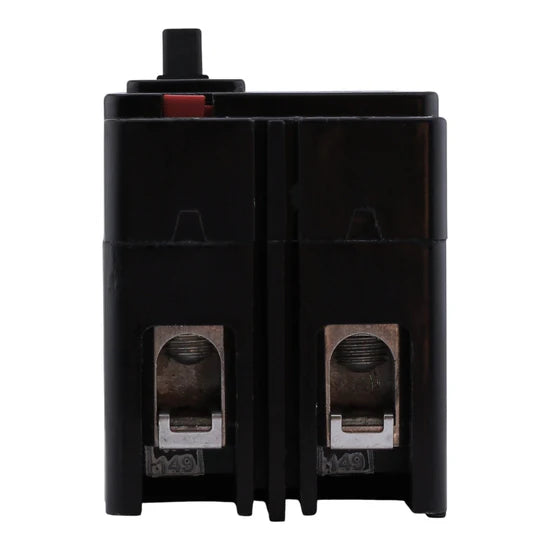

Eaton CV CV2200XMM 200A 2P Molded Case – Bolt-On – 120/240V

The Eaton CV CV2200XMM is a 2-pole molded case tenant main circuit breaker providing 200A protection with a 65 kAIC interrupt rating for 120/240V systems. Designed for Eaton Type CV tenant main applications, it ensures robust overcurrent protection in commercial and multi-tenant environments. The breaker includes a bolt-on mounting kit and supports #6–4/0 AWG Cu/Al conductors for reliable main service entrance or subfeed applications.

Electrical Ratings:

• Amperage: 200 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 65 kAIC

Key Specifications:

• Breaker Type: Molded Case Circuit Breaker (Tenant Main)

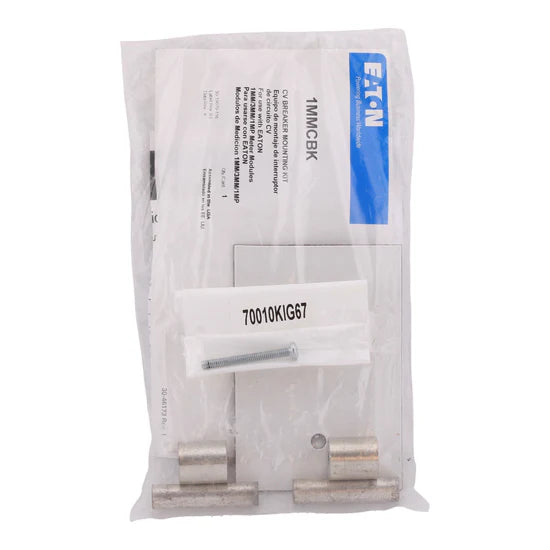

• Mounting Mode: Bolt-On (includes mounting kit)

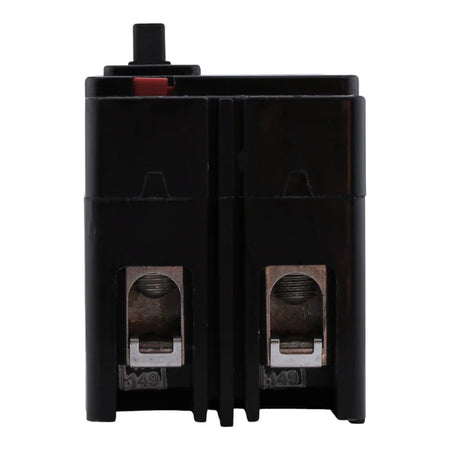

• Connections Terminals: Line and load lugs
• Wire Size: #6–4/0 AWG Cu/Al
• Tightening Torque: Not specified

Dimensions & Weight:

• • Height: 5.0 in
  • Width: 3.5 in
  • Depth: 7.5 in
  • Weight: 2.75 lbs

Certifications:

• UL 489 Listed
• CSA Std. C22.2 No. 5

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Type CV (for Eaton tenant main applications and compatible panelboards)
• Model Number: CV2200XMM
• UPC: 786685706481
