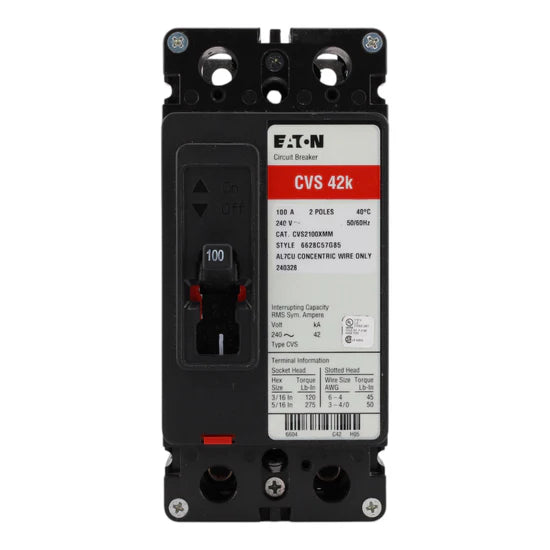

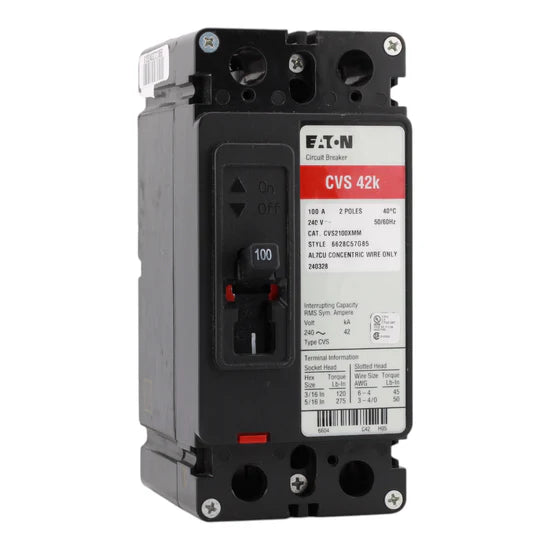

Eaton CVS2100XMM Molded Case Circuit Breaker, 100A, 2-Pole, 42 kAIC, with Mounting Kit

The Eaton CVS2100XMM molded case circuit breaker delivers reliable protection against overloads and short circuits in commercial, residential, and industrial electrical systems. Built on the durable CV frame platform, this 2-pole breaker features a high 42 kAIC interrupting rating for enhanced fault protection. Its versatile wiring compatibility and included mounting kit make installation straightforward and dependable for demanding applications.

Specifications

• Brand: Eaton
• Manufacturer: Eaton Corporation
• Model Number: CVS2100XMM
• UPC Number: 786685705880
• Type: Molded Case Circuit Breaker
• Amperage Rating: 100A
• Number of Poles: 2-Pole
• Interrupting Rating: 42 kAIC
• Wire Size Compatibility: #6 – 4/0 AWG (Copper/Aluminum)
• Terminals: Supports up to #4/0 kcmil maximum load
• Frame Type: CV
• Dimensions (H × W × D): 5 in × 3.5 in × 7.5 in
• Weight: 2.75 lbs
• Certifications: UL 489, CSA Std. C22.2 No. 5
• Accessories: Includes mounting kit

Key Features and Benefits

• High Interrupting Rating: 42 kAIC provides strong protection against short circuits and overloads.
• Versatile Wiring Support: Accepts #6 – 4/0 AWG copper or aluminum conductors.
• Included Mounting Kit: Enables secure and simplified installation.
• Durable Construction: Engineered for long service life in demanding environments.
• Standards Compliant: Meets UL 489 and CSA C22.2 No. 5 requirements.

Applications

• Commercial: Tenant spaces, retail stores, and office buildings
• Residential: Homes and apartment electrical protection
• Industrial: Machinery, equipment, and control panels
